1972 Yamaha GP292 Seat GP-292 Diagram

← All diagrams

Find the part on the Seat GP-292 diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

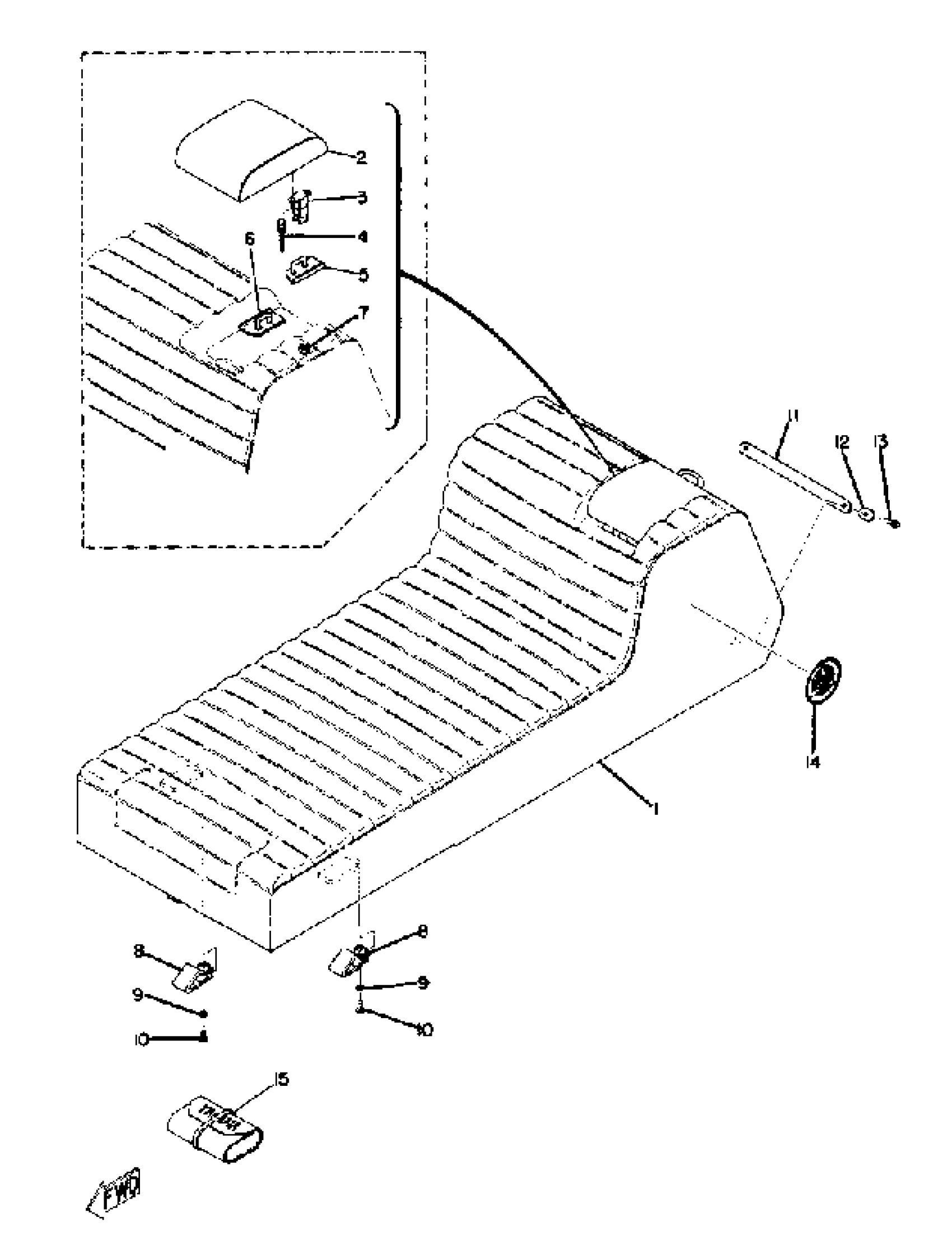

1972 Yamaha GP292 Seat GP-292 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DOUBLE SEAT ASSEMBLY

(821-24730-00-00)

1
Out of stock

1

COVER, DOUBLE SEAT

(821-24731-00-00)

1
Out of stock

2

LID, DOUBLE SEAT

821-24765-00-00

1
Out of stock

3

SPRING, SEAT BACK

(821-24794-00-00)

1
Out of stock

4

RIVET, BLIND

(90267-32016-00)

1
Out of stock

5

PIN

(821-24793-00-00)

1
Out of stock

6

PIN

(821-24784-00-00)

1
Out of stock

7

NUT(650)

95380-06700-00

1

$6.17

In stock

8

PLATE, SEAT FITTING

(809-24744-00-00)

1
Out of stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

SCREW, PAN

98507-06014-00

1

$6.18

In stock

11

WASHER, SEAT

(813-24746-00-00)

1
Out of stock

12

WASHER, LOCK

(90215-07064-00)

1
Out of stock

13

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

14

EMBLEM 2

821-77352-00-00

1
Out of stock

15

TOOL KIT

(821-28100-10-00)

1
Out of stock
← Frame GP-292B Seat GP-292B →
