1972 Yamaha GP292 Bumper GP-292B Diagram

← All diagrams

Find the part on the Bumper GP-292B diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

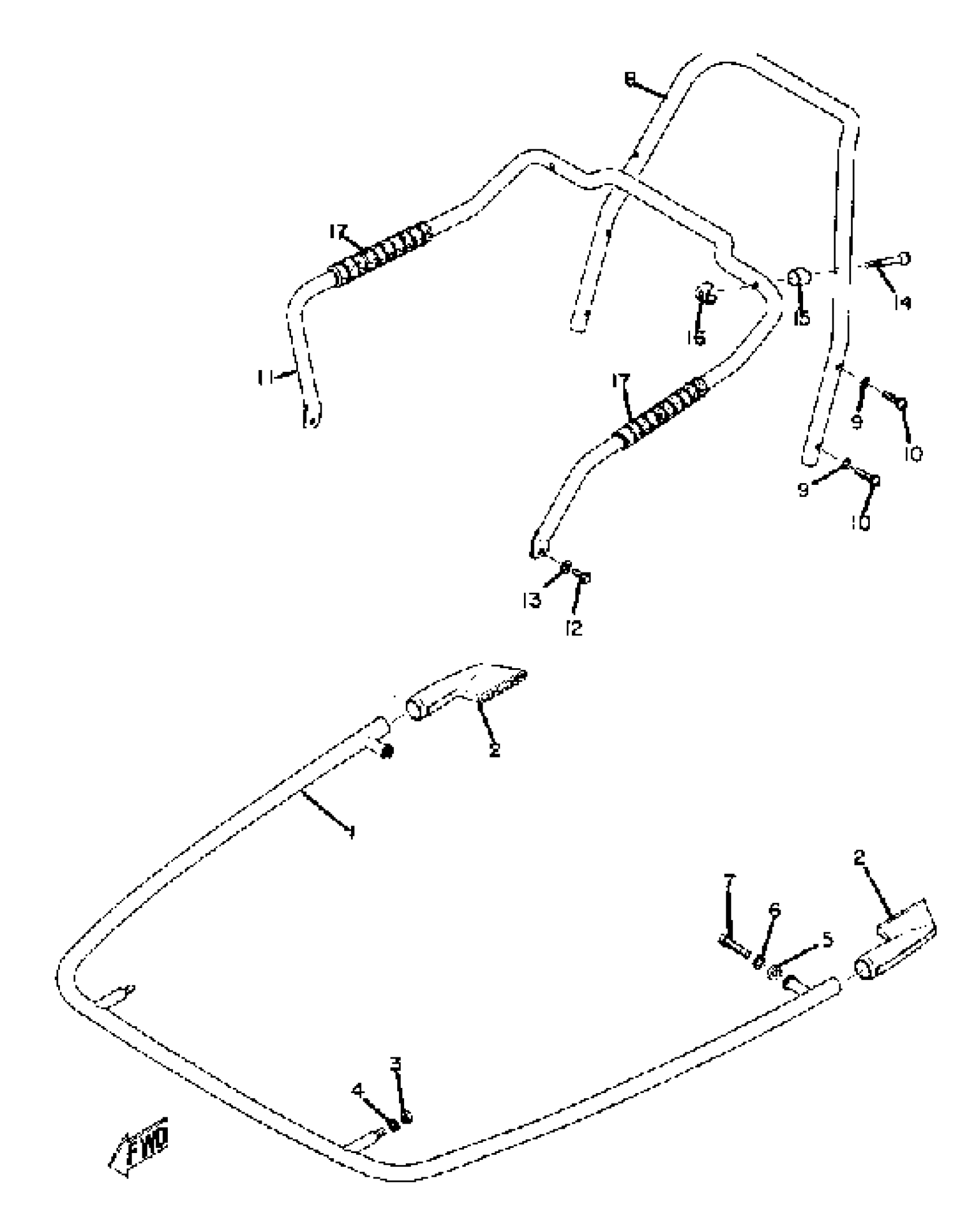

1972 Yamaha GP292 Bumper GP-292B Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT BUMPER

841-77510-00-00

1
Out of stock

2

END, BUMPER

838-77523-00-00

1
Out of stock

3

NUT(6L2)

95333-08600-00

1

$3.20

In stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

WASHER, PLATE

(90201-08456-00)

1
Out of stock

6

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

7

BOLT (8K4)

90101-08499-00

—

$21.95

In stock

8

BUMPER, REAR 1

(841-77541-00-00)

1
Out of stock

9

WASHER

92990-06500-00

1
Out of stock

10

SCREW, COUNTERSUNK

90152-06003-00

1
Out of stock

11

GRIP, ASSIST 1

841-77571-00-00

1
Out of stock

12

BOLT (661)

97013-06012-00

1

$4.71

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

SCREW

92601-06050-00

1
Out of stock

15

BUSH, RUBBER 1

(806-77515-00-00)

1
Out of stock

16

NUT, SPECIAL

806-77573-00-00

1
Out of stock

17

COVER, ASSIST GRIP

838-77575-00-00

1
Out of stock
