1972 Yamaha GP292 Frame GP-292 Diagram

← All diagrams

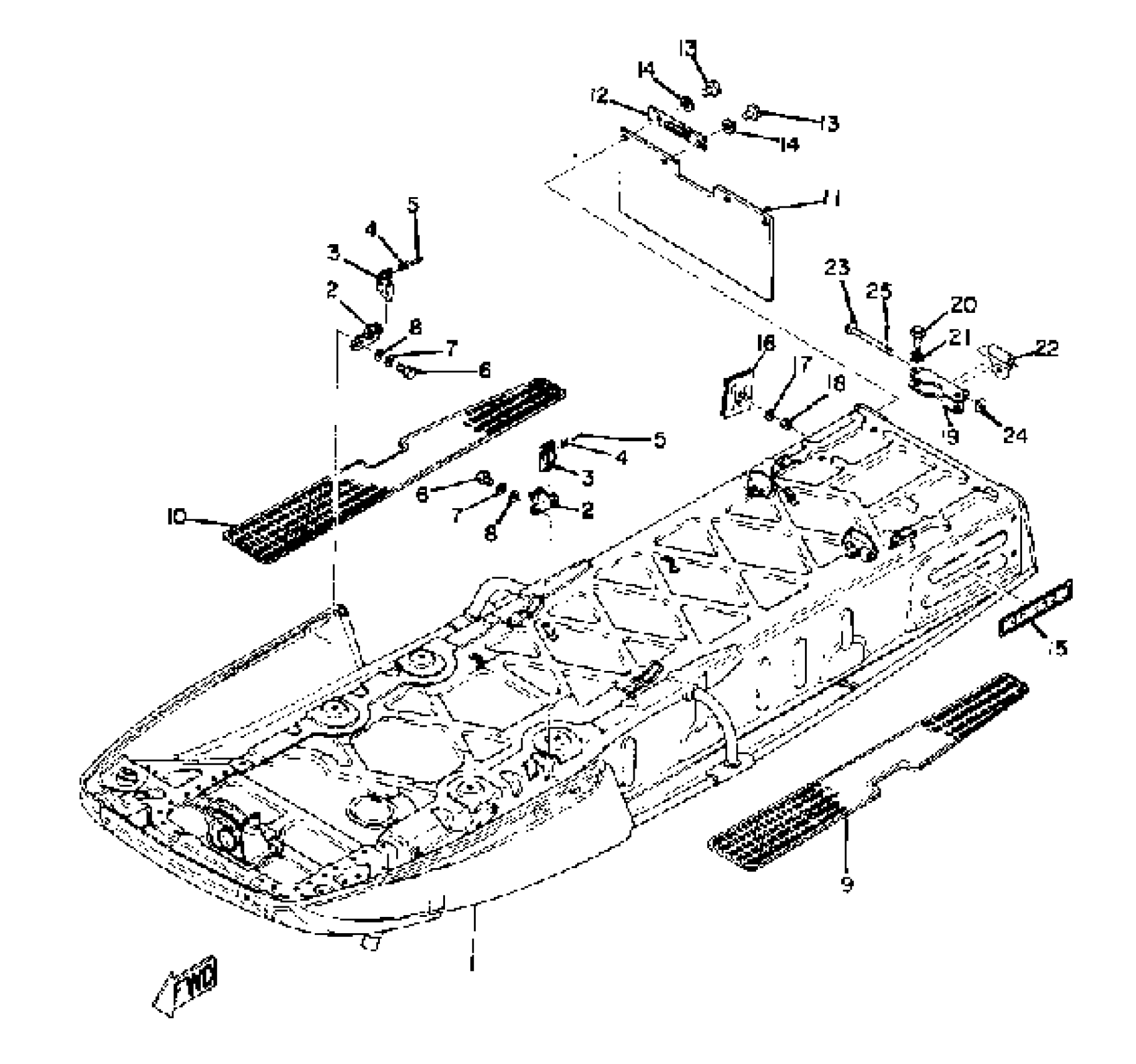

Find the part on the Frame GP-292 diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha GP292 Frame GP-292 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LATCH ASSEMBLY

813-77170-00-00

1
Out of stock

1

FRAME

(821-21910-00-00)

1
Out of stock

2

BODY, LATCH 2

(806-77172-00-00)

1
Out of stock

3

LEVER, LATCH 1

(813-77173-00-00)

1
Out of stock

4

. SPRING, TORSION

90508-10012-00

1
Out of stock

5

. PIN, SPECIAL SHAPE

90249-04068-00

1
Out of stock

6

BOLT, HEXAGON

97313-05016-00

1
Out of stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

9

COVER, FOOTREST

(806-27413-00-00)

1
Out of stock

10

COVER, FOOTREST

(806-27423-00-00)

1
Out of stock

11

FLAP

(802-77595-02-00)

1
Out of stock

12

PLATE, FLAP 1

(802-77593-00-00)

1
Out of stock

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

EMBLEM 4

(823-77354-00-00)

1
Out of stock

16

REFLECTOR, REAR 1

(821-85131-00-00)

1
Out of stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

19

BRACKET, HITCH 2

(802-77592-00-00)

1
Out of stock

20

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

BRACKET, HITCH 1

802-77591-00-00

1
Out of stock

23

PIN, CLEVIS

(91701-08102-00)

1
Out of stock

24

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

25

PIN, COTTER

91490-25020-00

—

$2.94

In stock
