1972 Yamaha GP292 Frame GP-292B Diagram

← All diagrams

Find the part on the Frame GP-292B diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

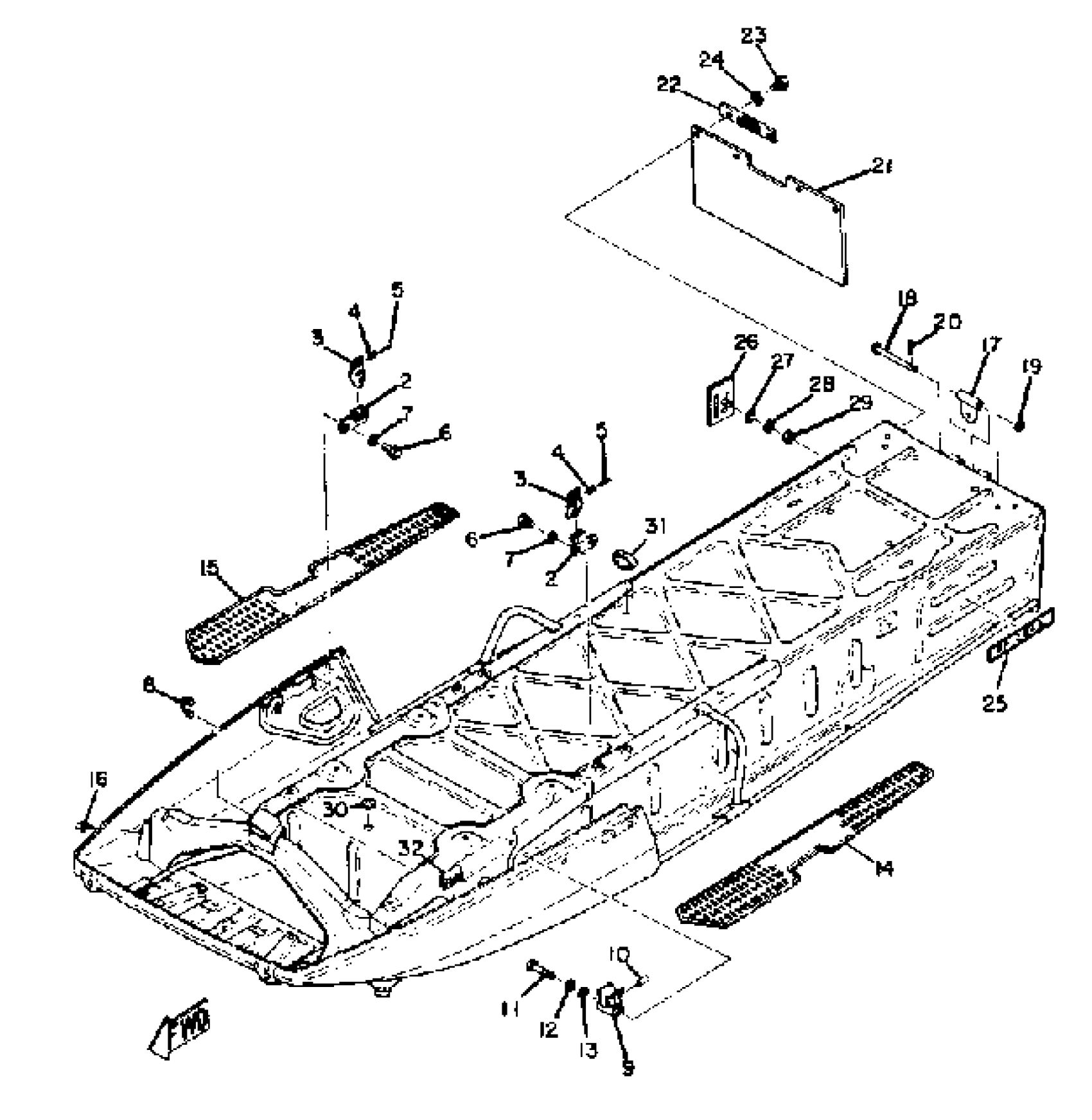

1972 Yamaha GP292 Frame GP-292B Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LATCH ASSEMBLY

806-77170-00-00

1
Out of stock

1

FRAME

(841-21910-00-00)

1
Out of stock

2

BODY, LATCH 2

(806-77172-00-00)

1
Out of stock

3

. LEVER, LATCH 1

806-77173-00-00

1
Out of stock

4

. SPRING, TORSION

90508-10012-00

1
Out of stock

5

. PIN, SPECIAL SHAPE

90249-04068-00

1
Out of stock

6

BOLT, HEXAGON

97313-05016-00

1
Out of stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

BAND

(841-82591-00-00)

1
Out of stock

9

CLAMP

90464-09006-00

1
Out of stock

10

STOPPER

821-77188-01-00

1
Out of stock

11

BOLT, HEXAGON

97013-06045-00

1

$1.51

In stock

12

WASHER, SPRING

92907-06100-00

1
Out of stock

13

WASHER(6TA)

92907-06200-00

1

$6.18

In stock

14

COVER, FOOTREST

878-27413-00-00

1
Out of stock

15

COVER, FOOTREST

878-27423-00-00

1
Out of stock

16

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

17

BRACKET, HITCH 1

802-77591-00-00

1
Out of stock

18

PIN, CLEVIS

(91701-08102-00)

1
Out of stock

19

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

20

PIN, COTTER

91490-25020-00

—

$2.94

In stock

21

FLAP

(802-77595-02-00)

1
Out of stock

22

PLATE, FLAP 1

(802-77593-00-00)

1
Out of stock

23

BOLT (661)

97013-06012-00

—

$4.71

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

EMBLEM 4

(845-77354-00-00)

1
Out of stock

26

REFLECTOR, REAR 1

(821-85131-00-00)

1
Out of stock

27

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

28

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

29

NUT, NYLON

95707-06300-00

—

$3.20

In stock

30

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

31

CLAMP

(90464-13008-00)

1
Out of stock

32

STRIP, WEATHER 1

(841-77161-00-00)

1
Out of stock
