1993 Kawasaki EX500 Side Covers Diagram

← All diagrams

Find the part on the Side Covers diagram for your 1993 Kawasaki EX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

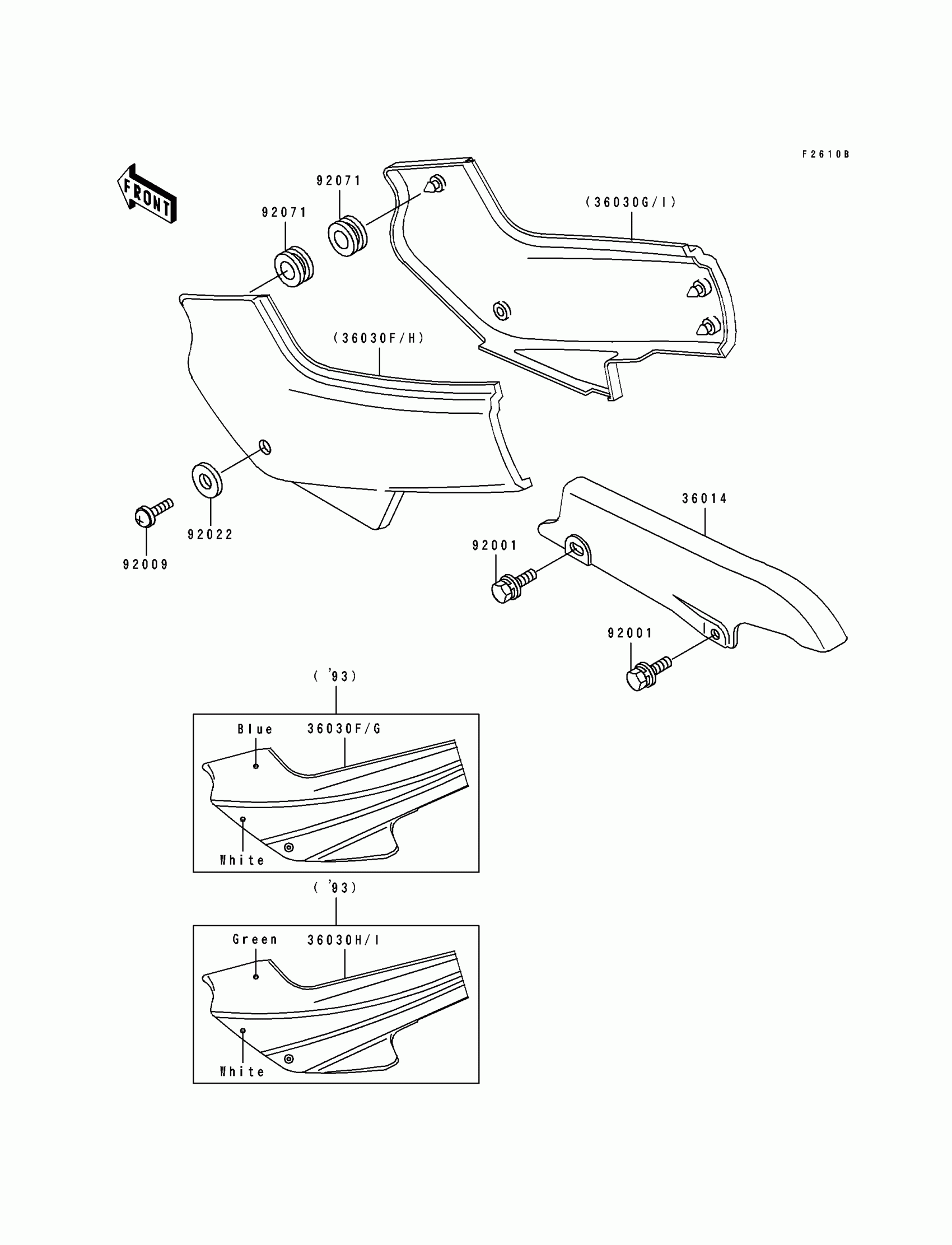

1993 Kawasaki EX500 Side Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36014

CASE-CHAIN

36014-1144

1

$88.63

In stock

36030F

COVER-SIDE,LH,L.P.BLUE

36030-5135-M4

1

$137.13

In stock

36030G

COVER-SIDE,RH,L.P.BLUE

36030-5136-M4

1

$143.46

In stock

36030H

COVER-SIDE,LH,P.T.GREEN

36030-5137-SM

1

$148.51

In stock

36030I

COVER-SIDE,RH,P.T.GREEN

36030-5138-SM

1

$141.61

In stock

92001

BOLT,6X14,BLACK

92001-1847

1

$3.58

In stock

92009

SCREW,6X14

92009-1288

1
Out of stock

92022

WASHER,6.5X16X1.0

92022-1654

1

$2.92

In stock

92071

GROMMET

92071-056

1

$3.39

In stock
