1989 Kawasaki EX500 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1989 Kawasaki EX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

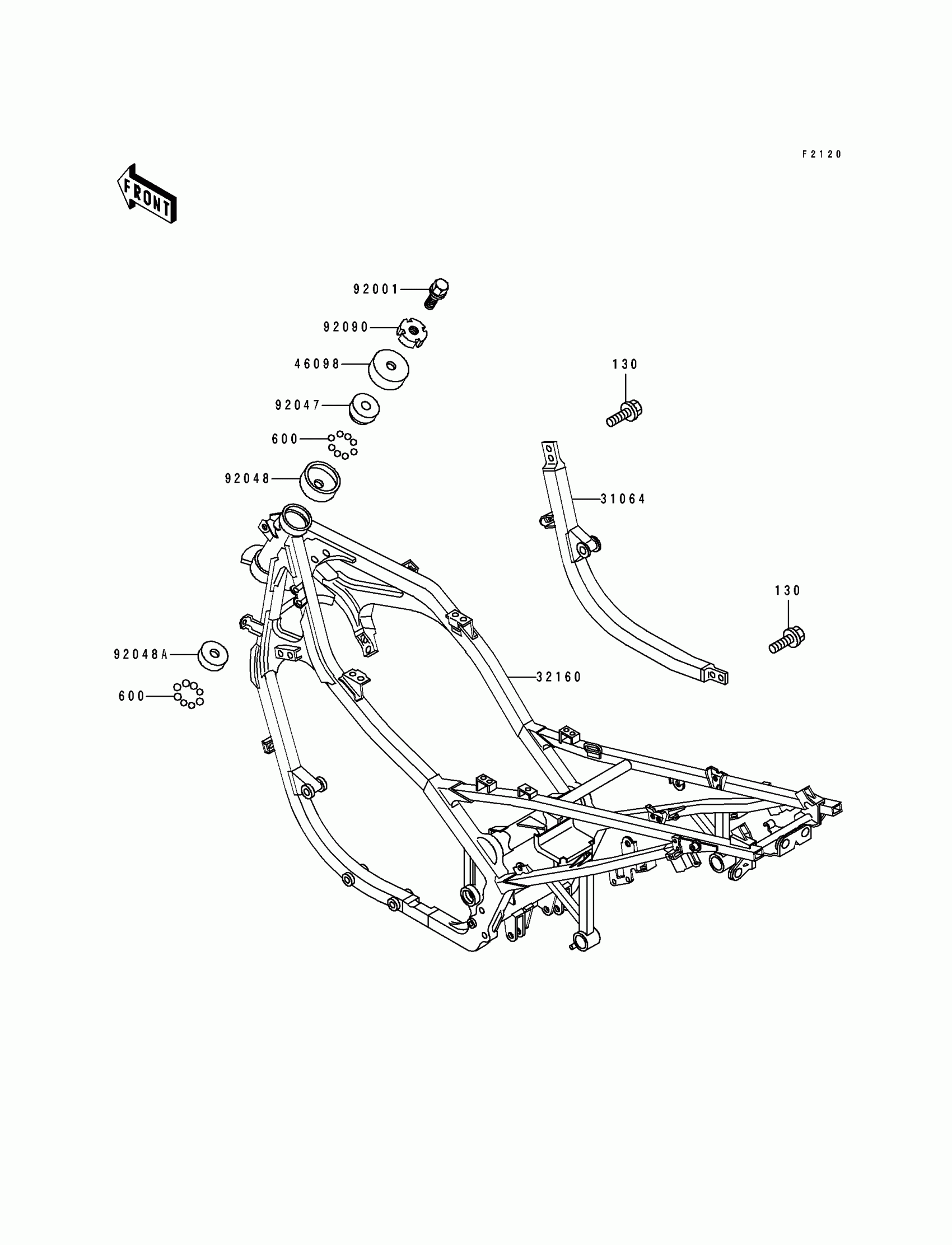

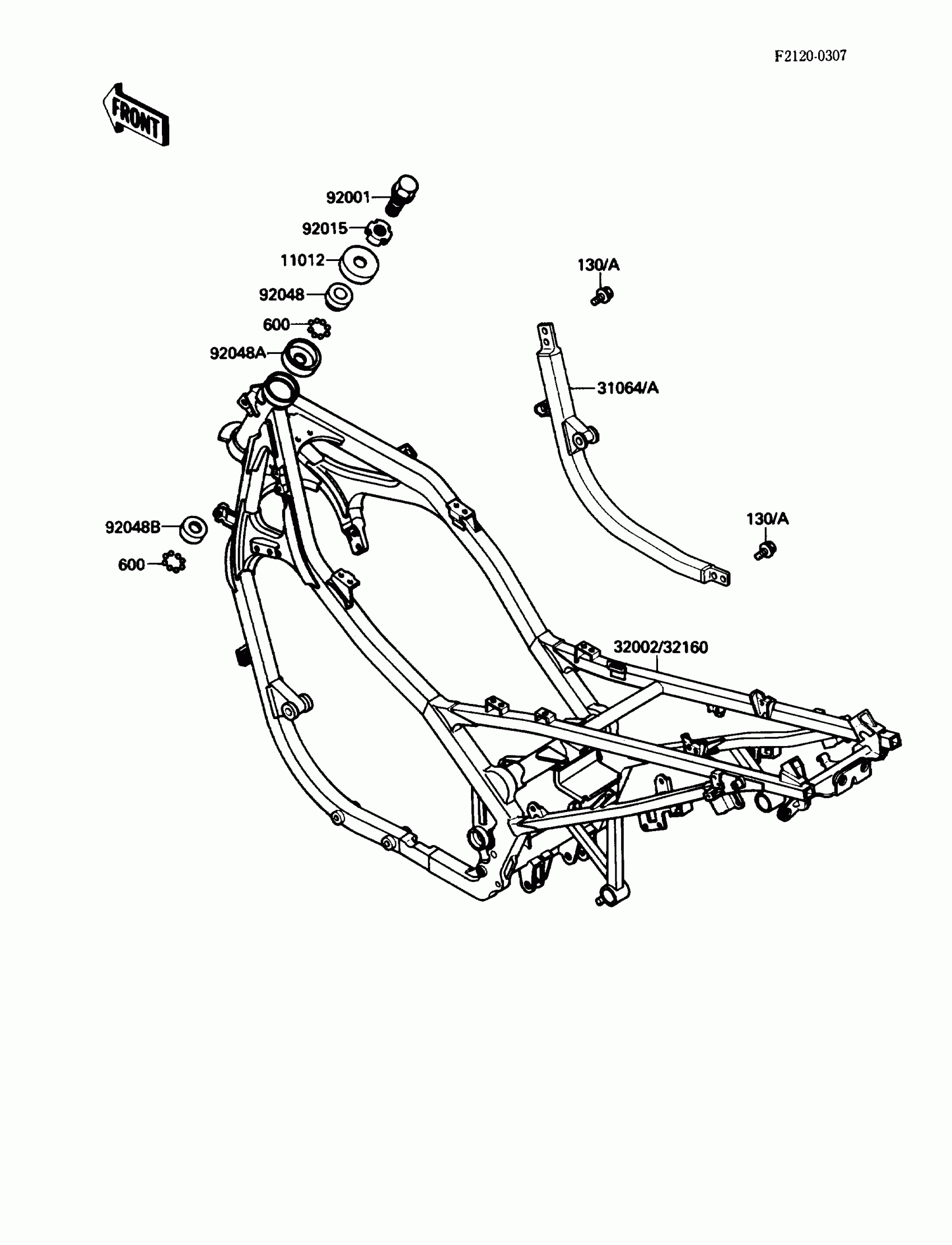

1989 Kawasaki EX500 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,STEERING STEM

46098-016

1

$5.66

In stock

31064A

PIPE-COMP,FRAME,RH

31064-1107

1

$162.16

In stock

32160

FRAME-COMP

32160-1036

1

$1,678.01

In stock

92001

BOLT,FLANGED,16X22

92001-1488

1

$20.88

In stock

92015

NUT,30MM

92090-007

1

$9.29

In stock

92048

RACE,STEERING STEM BEARING

92047-011

1
Out of stock

92048A

RACE,STEERING STEM BEARING

92048-006

1
Out of stock

92048B

RACE,STEERING STEM BEARING

92048-008

1
Out of stock

130A

BOLT-FLANGED,10X20

130J1020

1
Out of stock

600

BALL-STEEL,1/4

600A0800

1

$0.67

In stock
