1993 Kawasaki EX500 Cowling Diagram

← All diagrams

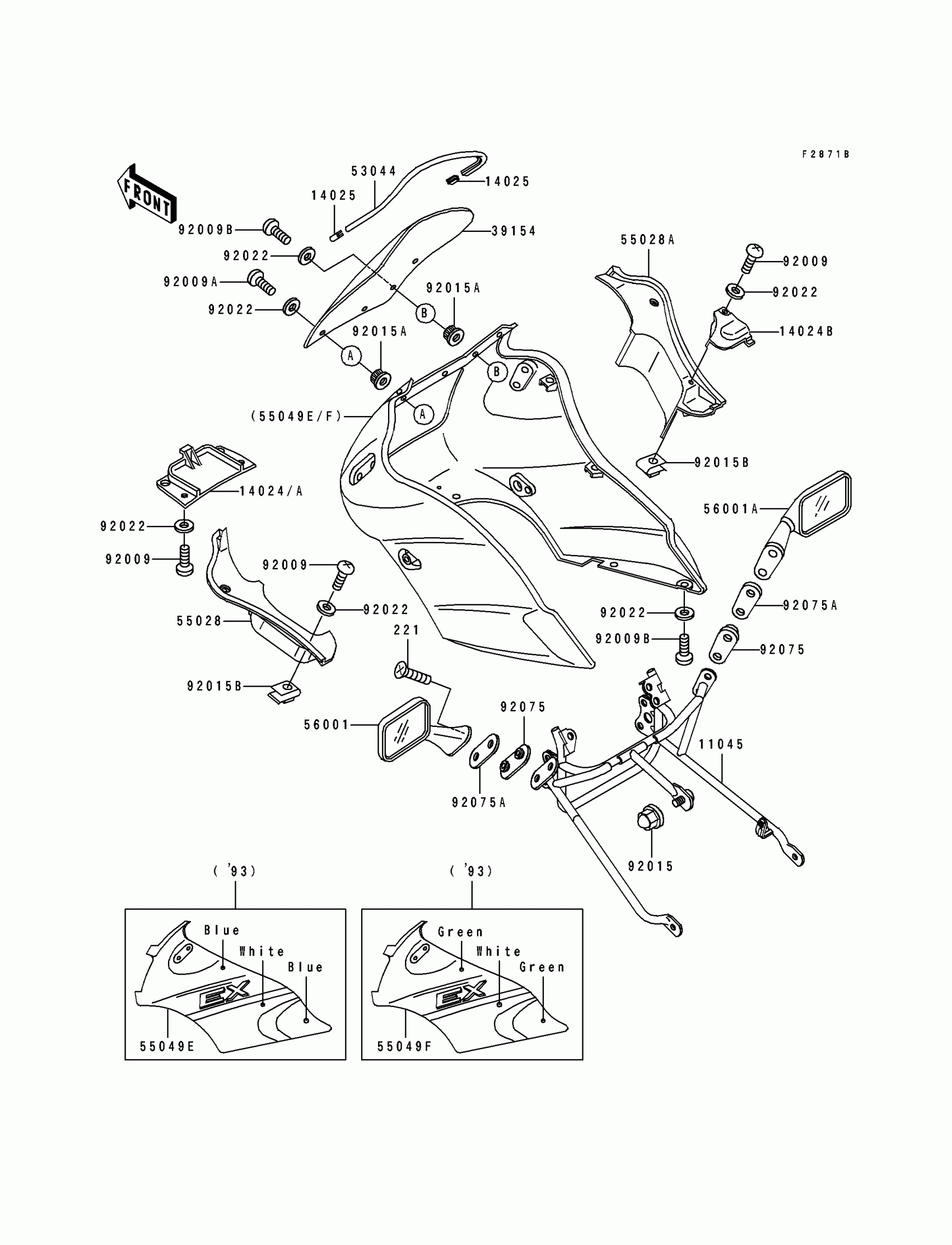

Find the part on the Cowling diagram for your 1993 Kawasaki EX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Kawasaki EX500 Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11045

BRACKET,COWLING

11045-1816

1
Out of stock

14024

COVER,UPPER COWLING,LWR,BLUE

14024-1385-M4

1
Out of stock

14024A

COVER,UPPER COWLING,LWR,GREEN

14024-1385-SM

1
Out of stock

14024B

COVER,INNER COWLING,RH

14024-1392

1
Out of stock

14025

COVER,TRIM END

14025-1756

1

$6.05

In stock

39154

WINDSHIELD

39154-1100

1

$347.37

In stock

53044

TRIM,WINDSHIELD

53044-1120

1
Out of stock

55028

COWLING,INNER,LH

55028-1145

1
Out of stock

55028A

COWLING,INNER,RH

55028-1146

1
Out of stock

55049E

COWLING.,UPP,BLUE/WHITE

55049-5129-S3

1
Out of stock

55049F

COWLING.,UPP,GREEN/WHITE

55049-5130-RX

1

$1,141.17

In stock

56001

MIRROR-ASSY,LH

56001-1248

1

$93.56

In stock

56001A

MIRROR-ASSY,RH

56001-1249

1

$93.56

In stock

92009

SCREW,TAPPING,5X15

92009-1479

1
Out of stock

92009A

SCREW,5X12

92009-1652

1
Out of stock

92009B

SCREW,5X16,BLACK

92009-1654

1
Out of stock

92015

NUT,CAP,8MM,BLACK

92015-1174

1
Out of stock

92015A

NUT,5MM,COWLING

92015-1343

1

$3.65

In stock

92015B

NUT,5MM

92015-1638

1
Out of stock

92022

1

$3.12

In stock

92075

DAMPER,MIRROR

92075-1492

1

$7.95

In stock

92075A

DAMPER,MIRROR

92075-1745

1

$7.95

In stock

221

SCREW-CSK-CROSS

221C0630

1
Out of stock
