1989 Kawasaki EX500 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1989 Kawasaki EX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

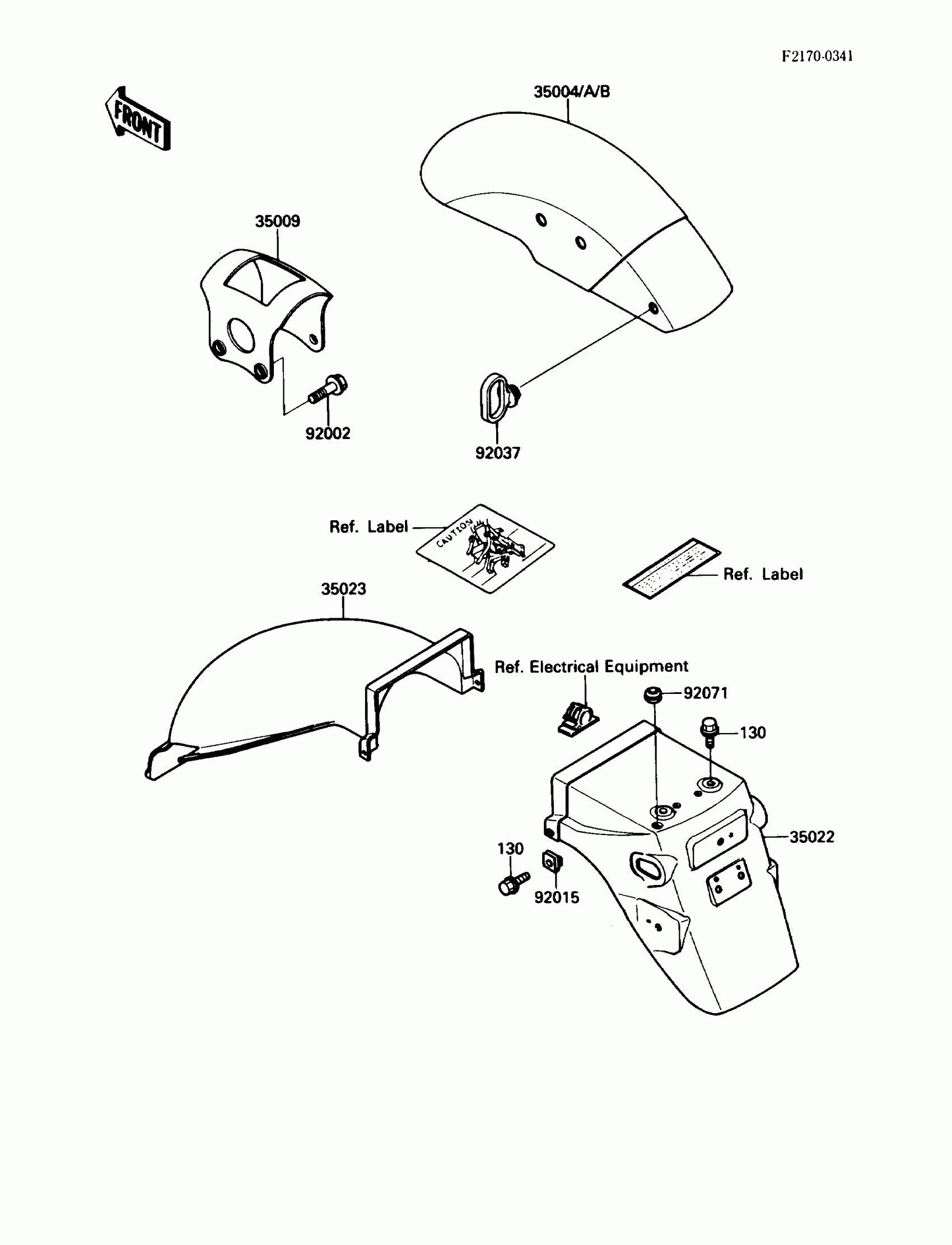

1989 Kawasaki EX500 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004A

1

$187.17

In stock

35004B

FENDER-FRONT,WHITE/BLACK

35004-1188-W6

1
Out of stock

35009

BRACE,FRONT FENDER

35009-1070

1
Out of stock

35022

1

$144.35

In stock

35023

FENDER-REAR,FR

35023-1183

1

$68.72

In stock

92002

BOLT,FLANGED,8X16

92002-1200

1

$4.34

In stock

92015

NUT,CLAMP,6MM

92015-1678

1

$4.37

In stock

92037

CLAMP,CABLE

92037-1459

1

$20.18

In stock

92071

GROMMET,10MM

92071-019

1

$3.10

In stock

130

BOLT-FLANGED,6X16

130B0616

1
Out of stock
