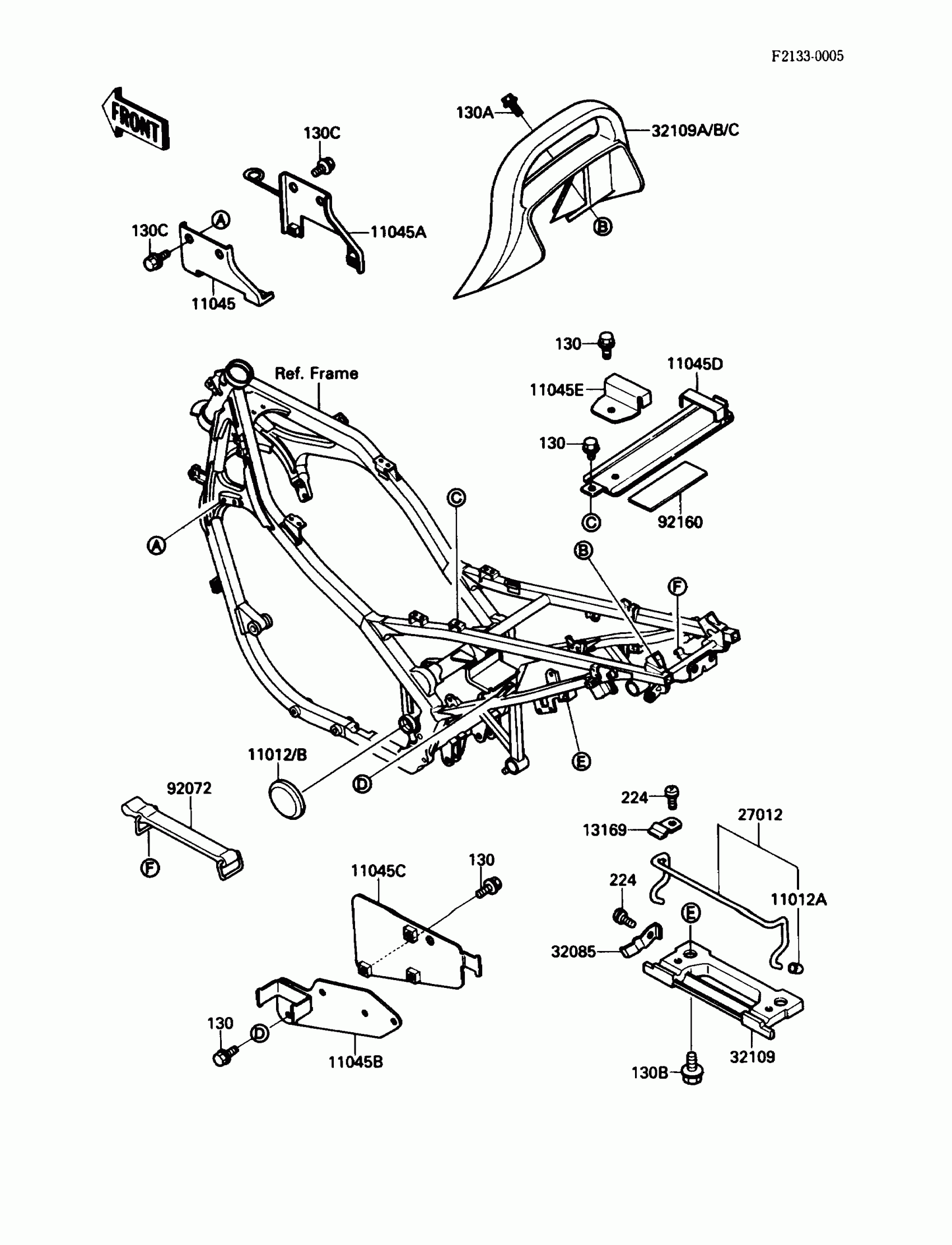

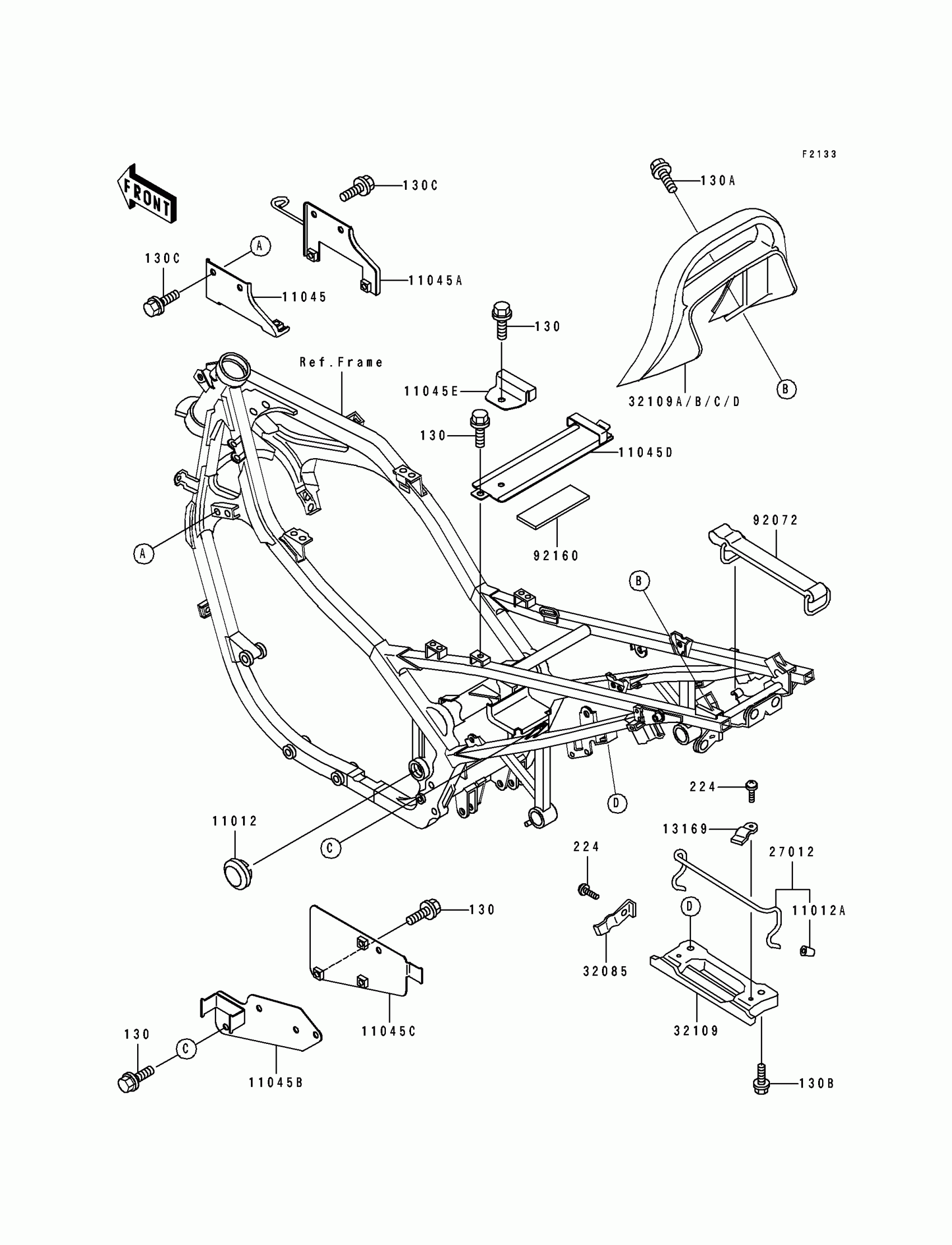

Find the part on the Electro Bracket diagram for your 1989 Kawasaki EX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki EX500 Electro Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

1

$11.42

In stock

11012A

1

$7.63

In stock

11045

1

$13.88

In stock

11045A

BRACKET,IGNITION COIL,RH

11045-1420

1
Out of stock

11045B

BRACKET,REGULATOR

11045-1421

1

$20.66

In stock

11045C

BRACKET,IGNITER

11045-1422

1
Out of stock

11045D

1

$19.69

In stock

11045E

BRACKET,JUNCTION BOX

11045-1424

1
Out of stock

13169

PLATE,GRIP

13169-1760

1

$10.24

In stock

27012

HOOK,BUNGEE CORD

27012-1311

1
Out of stock

32085

STOPPER,HOOK

32085-1187

1

$11.41

In stock

32109

GRIP-FRAME

32109-1108

1

$87.65

In stock

32109B

GRIP-FRAME,TAIL,EBONY

32109-1156-H8

1

$184.46

In stock

32109C

1

$101.93

In stock

92072

BAND

92072-1085

1

$14.27

In stock

92160

DAMPER,BATTERY

92160-1094

1
Out of stock

130

BOLT-FLANGED,6X8

130B0608

1
Out of stock

130A

BOLT-FLANGED

130D0814

1
Out of stock

130B

BOLT-FLANGED,8X14

130G0814

1
Out of stock

130C

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

224

SCREW-PAN-WP-CROS

224C0508

1
Out of stock
