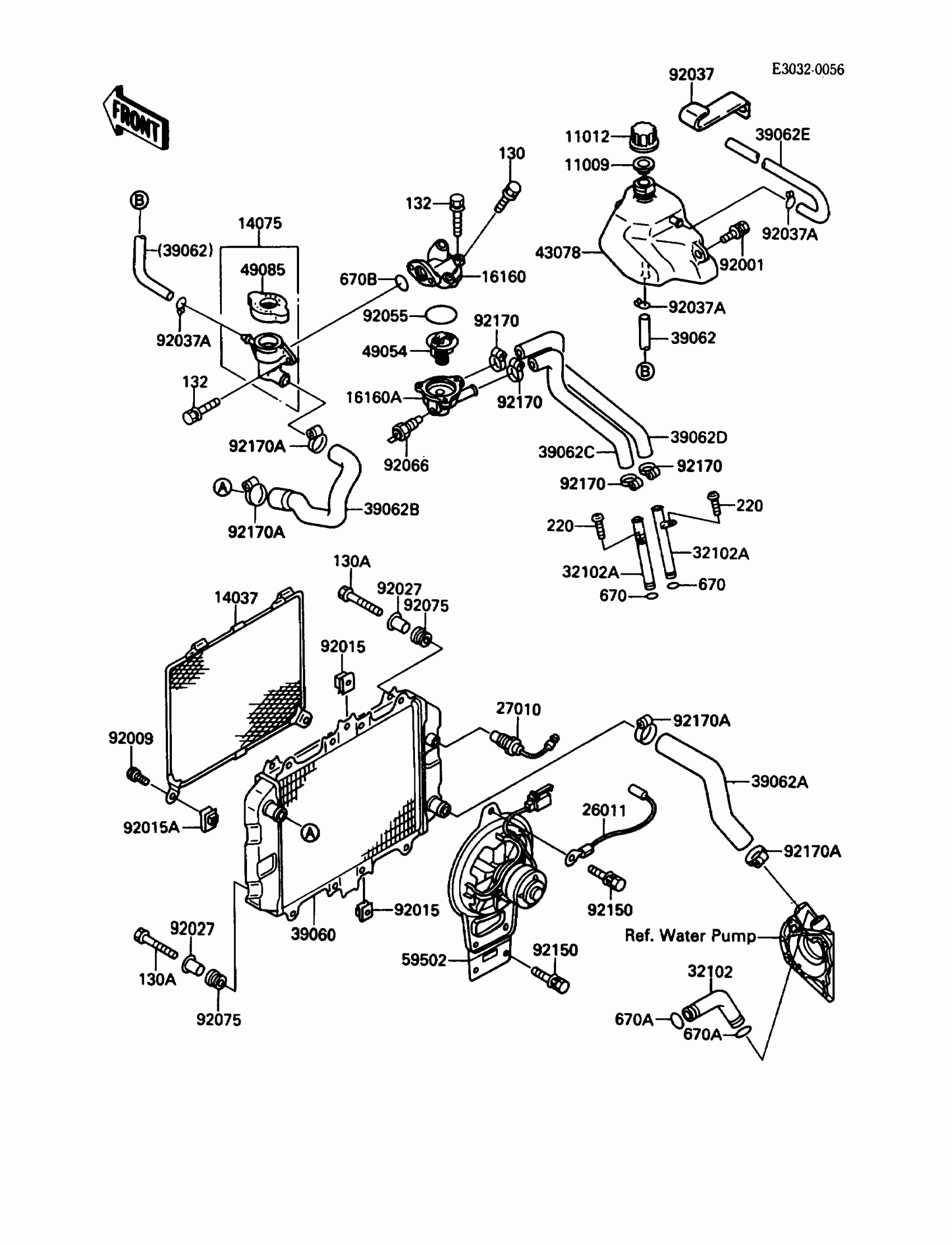

Kawasaki EX500 Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.25

11012

CAP

11012-1084

$1.31

14037

SCREEN

14037-1089

$50.44

14075

CAP-ASSY,RADIATOR

14075-1065

$151.81

16160

BODY,THERMOSTAT,UPP

16160-1126

$73.81

16160A

BODY,THERMOSTAT,LWR

16160-1138

$36.93

26011

WIRE-LEAD

26011-1361

$24.64

27010

SWITCH,FAN

27010-1180

$136.95

32102

PIPE,PUMP-CYLINDER

32102-1405

$44.48

32102A

PIPE

32102-1473

$34.56

39060

RADIATOR

39060-1075

$953.14

39062

HOSE-COOLING,L=447

39062-1195

$23.82

39062A

HOSE-COOLING,RADIATOR-PUMP

39062-1222

Unavailable

39062B

HOSE-COOLING,CAP-RADIATOR

39062-1223

Unavailable

39062C

HOSE-COOLING,THERMO-HEAD,LH

39062-1224

$34.82

39062D

HOSE-COOLING,THERMO-HEAD,RH

39062-1225

$36.58

39062E

HOSE-COOLING

39062-1257

$36.50

43078

RESERVOIR

43078-1084

$64.81

49054

THERMOSTAT

49054-1059

$62.23

49085

CAP-ASSY-PRESSURE

49085-1005

$33.98

59502

FAN-ASSY

59502-1070

$649.06

92001

BOLT,W/WASHER,6X12

92001-1516

$4.42

92009

SCREW,6X12

92009-1480

$2.59

92015

NUT

92015-1487

$3.80

92015A

NUT,6MM

92015-1582

$5.45

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$4.37

92037

CLAMP,HARNESS

92037-1316

$2.15

92037A

CLAMP,TUBE

92037-147

$5.84

92055

RING-O,44.7X2.4

92055-1279

$5.84

92066

PLUG,SENSOR,WATER

92066-1118

$70.35

92075

DAMPER

92075-277

$2.20

92150

BOLT,6X12

92150-1186

$2.92

92170

CLAMP,COOLING HOSE

92170-1032

$24.03

92170A

CLAMP,COOLING HOSE

92170-1033

$11.99

130

BOLT-FLANGED

130B0614

Unavailable

130A

BOLT-FLANGED,6X25

130J0625

Unavailable

132

BOLT-FLANGED-SMALL

132G0620

Unavailable

220

SCREW PAN HEAD 6X12

220B0612

Unavailable

670

O RING,14MM

670B2014

$1.08

670A

O RING,18MM

670B2018

$1.25

670B

O RING,20MM

670B2020

$1.12
