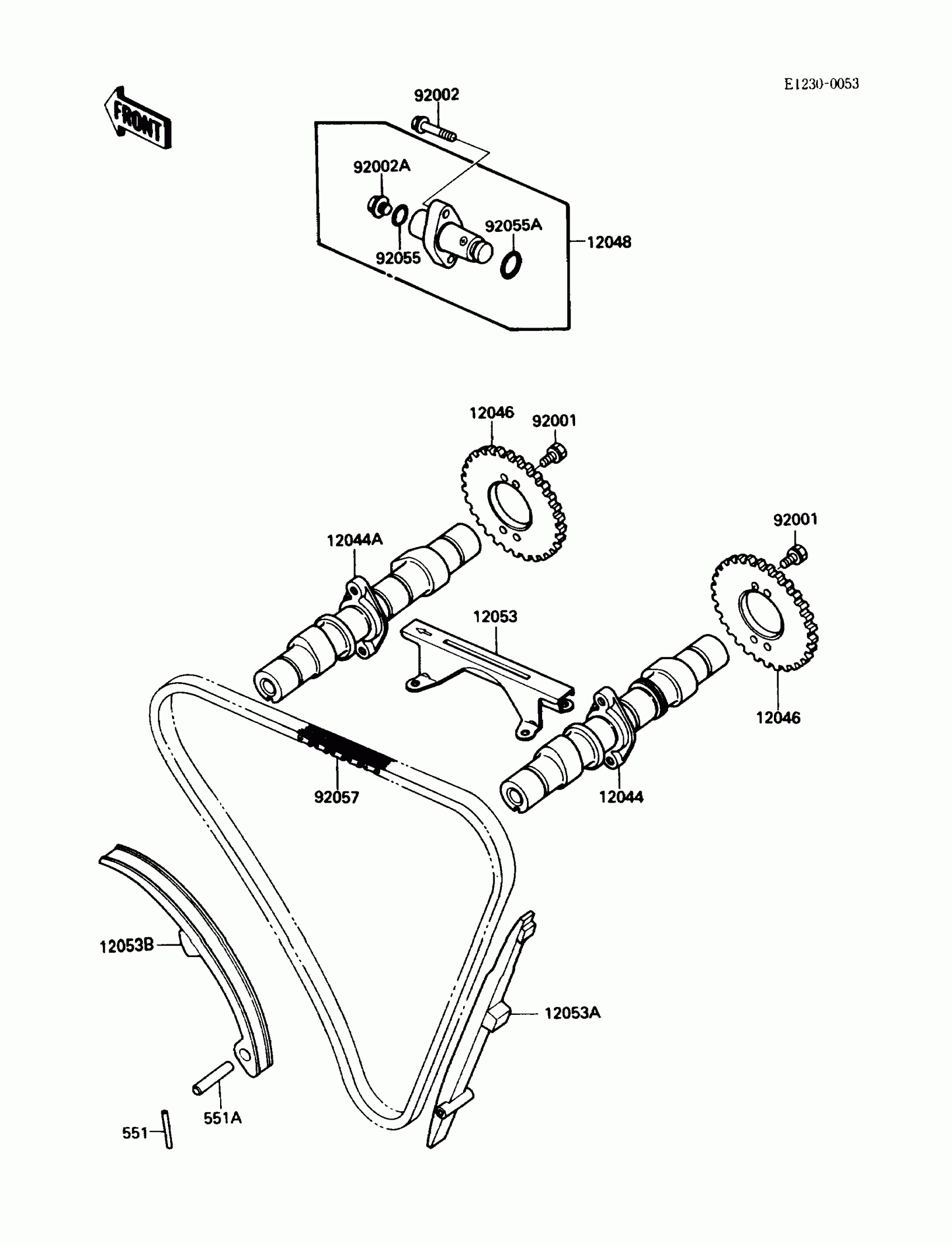

Kawasaki EX500 Camshaft(s)/Tensioner Diagram

Description

Price

12044

CAMSHAFT-VALVE,INTAKE

12044-1198

$474.48

12044A

CAMSHAFT-VALVE,EXHAUST

12044-1199

$474.48

12046

SPROCKET,CAMSHAFT,46T

12046-1075

$77.87

12048

TENSIONER-ASSY,CAM CHAIN

12048-1067

Unavailable

12053

GUIDE-CHAIN,UPP

12053-1145

$52.90

12053A

GUIDE-CHAIN,RR

12053-1150

$84.70

12053B

GUIDE-CHAIN,FR

12053-1151

Unavailable

92001

BOLT,FLANGED,6X11

92003-208

$3.43

92002

BOLT,FLANGED,6X25

92002-1086

$4.37

92002A

BOLT,TENSIONER

92002-1302

$7.56

92055

RING-O,TENSIONER BOLT

92055-1248

$1.63

92055A

RING-O,TENSIONER

92055-1249

$5.43

92057

CHAIN,CAM,79RH2015-148L

92057-1188

$128.45

551

PIN-DOWEL

551A0432

$4.17

551A

PIN-DOWEL,8X40

551A0840

$4.61
