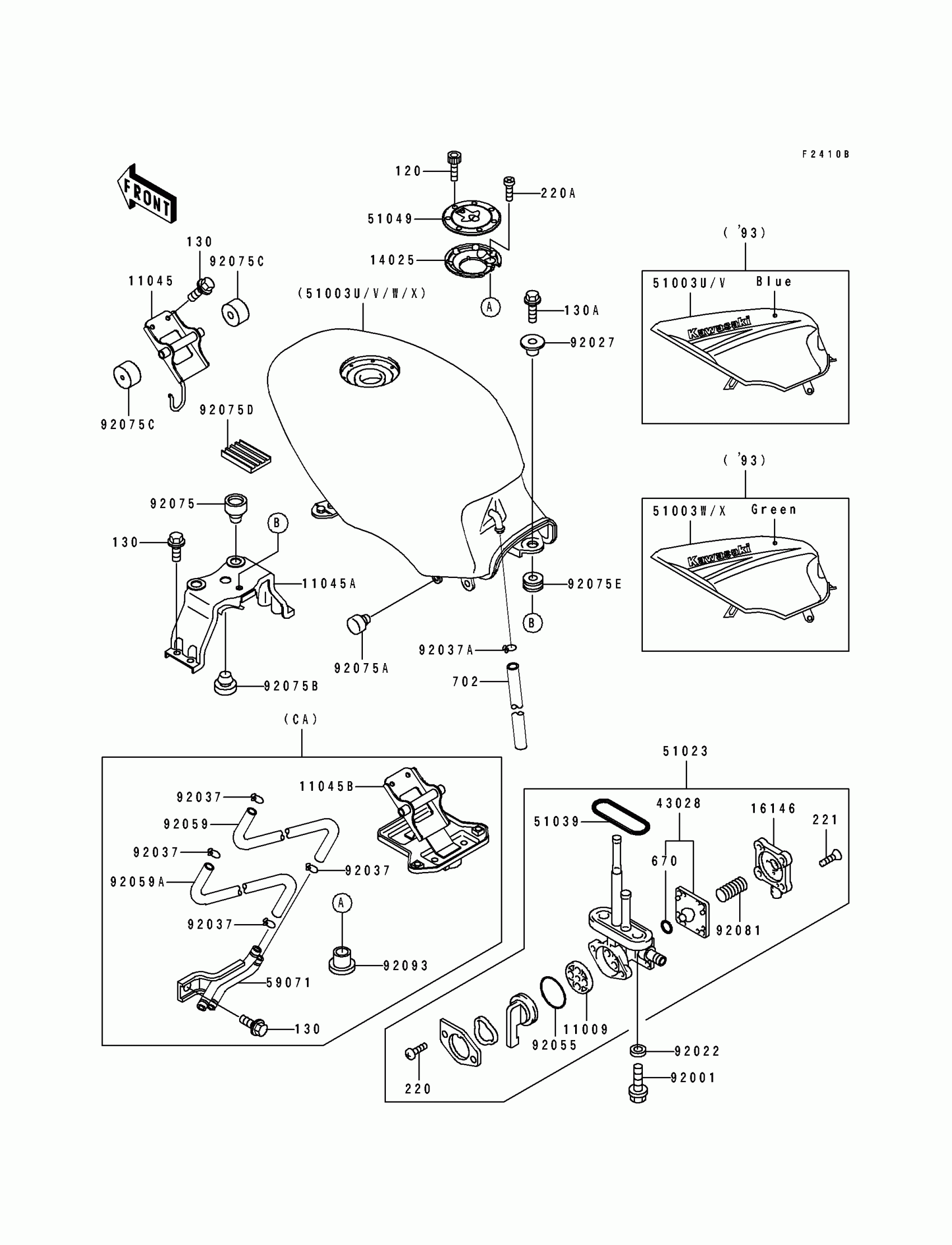

Kawasaki EX500 Fuel Tank(4/4)(EX500-A7) Diagram

#

Description
Price

11009

GASKET,TAP VALVE

11009-1188

$4.33

11045

BRACKET,FUEL TANK,FR

11045-1362

$43.35

11045A

BRACKET,FUEL TANK,RR

11045-1363

Unavailable

11045B

BRACKET,FUEL TANK,FR

11045-1389

$74.87

14025

COVER,TANK CAP

14025-1913

$17.42

16146

COVER-ASSY,TAP DIAPHRAGM

16146-1010

$23.78

43028

DIAPHRAGM

43028-1033

$18.50

51003U

TANK-COMP-FUEL,L.P.BLUE

51003-5473-M4

$1,120.50

51003V

TANK-COMP-FUEL,L.P.BLUE

51003-5474-M4

$1,120.50

51003W

TANK-COMP-FUEL,P.T.GREEN

51003-5475-SM

$1,120.50

51003X

TANK-COMP-FUEL,P.T.GREEN

51003-5476-SM

$1,050.39

51023

TAP-ASSY,FUEL

51023-1142

$118.03

51039

RING,TAP FLANGED

51039-003

$4.71

51049

CAP-TANK,FUEL

51049-1091

$117.85

59071

JOINT,EVAPO

59071-1122

$48.76

92001

BOLT,6X20

92001-1091

$2.99

92022

WASHER-PLAIN

92022-183

$2.99

92027

COLLAR,L=19.3

92027-1780

$4.93

92037

CLAMP,TUBE

92037-010

$2.99

92037A

CLAMP

92037-1712

$3.81

92055

RING-O,TAP LEVER

92055-1085

$3.85

92059

TUBE,EVAPO

92059-1767

$10.54

92059A

TUBE,EVAPO

92059-1768

$9.49

92075

DAMPER

92075-015

$3.81

92075A

DAMPER

92075-021

$4.61

92075B

DAMPER

92075-1045

$6.75

92075C

DAMPER,FUEL TANK,FR

92075-1115

$4.93

92075D

DAMPER

92075-1489

$6.82

92075E

DAMPER

92075-1736

$4.93

92081

SPRING,TAP DIAPHRAGM

92081-1240

$2.97

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

120

BOLT-SOCKET,5X12

120S0512

Unavailable

130

BOLT

130B0612

Unavailable

130

BOLT

130B0612

Unavailable

130A

BOLT,FLANGED,8X30

130G0830

Unavailable

220

SCREW-PAN-CROS,3X8

220B0308

$0.54

220A

SCREW-PAN-CROSS

220C0508

Unavailable

221

SCREW-CSK-CROS,4X14

221B0414

Unavailable

670

O RING,4MM

670B1504

$3.14

702

TUBE-RUBBER,7X10X380

702A07380

$10.11
