1989 Kawasaki EX500 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 1989 Kawasaki EX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

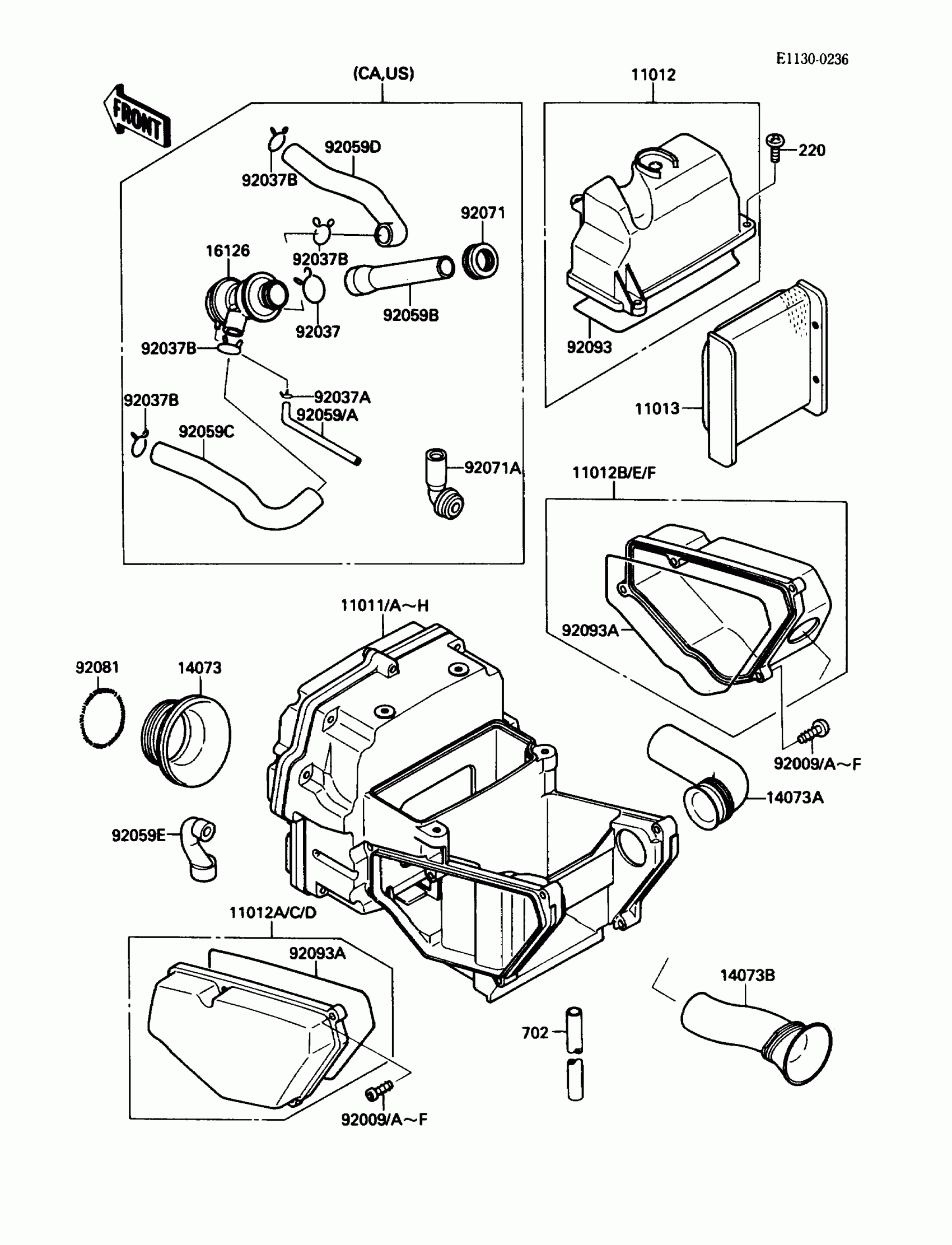

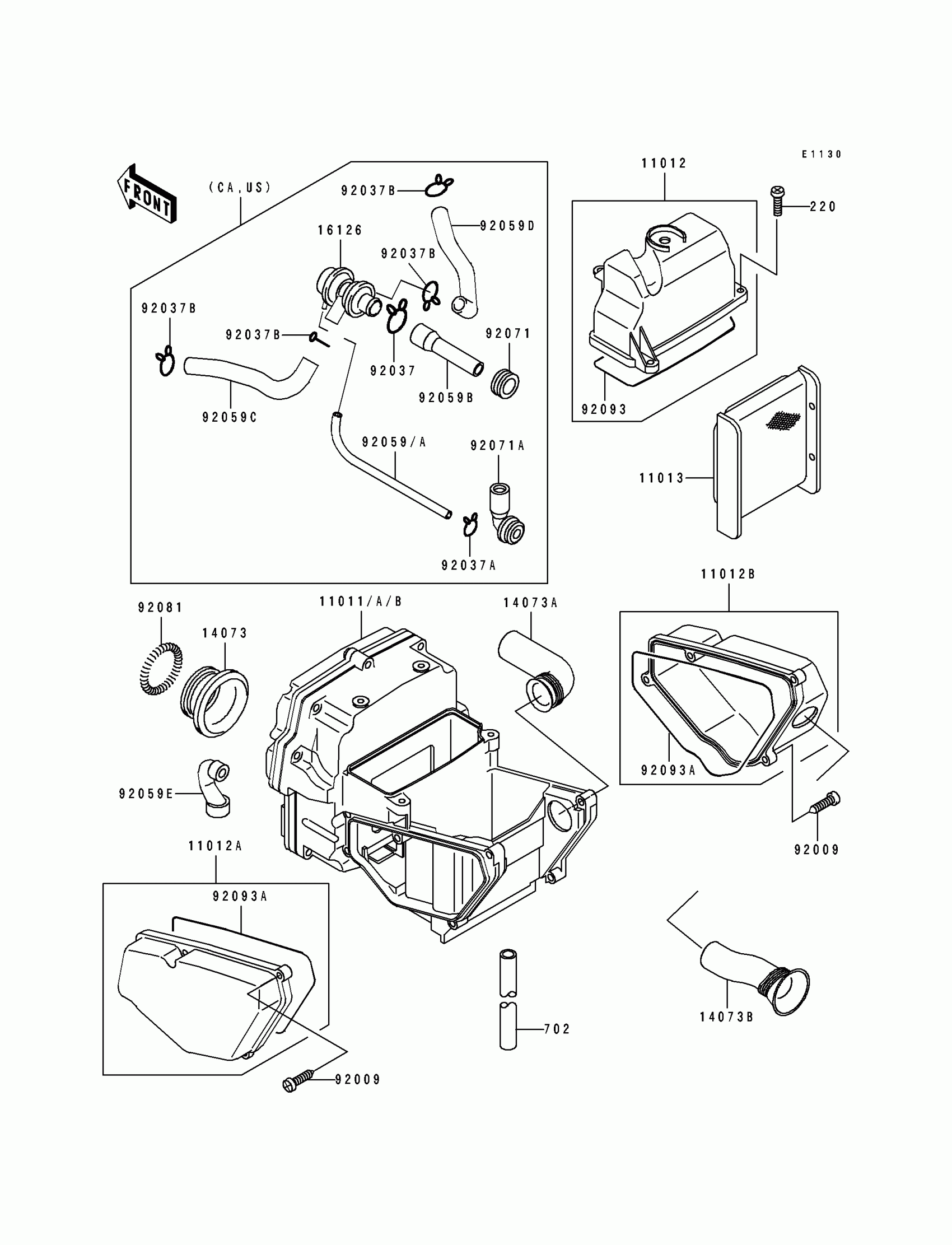

1989 Kawasaki EX500 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11011C

CASE-AIR FILTER

11011-1268

1
Out of stock

11011E

CASE-AIR FILTER

11011-1269

1

$208.68

In stock

11011G

CASE-AIR FILTER

11011-1270

1
Out of stock

11012

1

$49.77

In stock

11012C

CAP,AIR FILTER,LH

11012-1608

1

$42.95

In stock

11012E

CAP,AIR FILTER,RH

11012-1609

1

$38.35

In stock

11013

ELEMENT-AIR FILTER

11013-1155

1
Out of stock

14073

DUCT,CARBURATOR

14073-1292

1

$25.44

In stock

14073A

DUCT,INTAKE

14073-1293

1

$22.88

In stock

14073B

DUCT

14073-1295

1

$23.47

In stock

16126

VALVE,AIR SWITCH

16126-1005

1
Out of stock

92009C

SCREW,TAPPING,5X30

92009-1488

1
Out of stock

92037

CLAMP,TUBE

92037-1076

1

$7.14

In stock

92037A

CLAMP

92037-1712

1

$3.97

In stock

92037B

CLAMP,TUBE

92037-213

1

$3.43

In stock

92059

TUBE,4X9X290

92059-1043

1

$9.85

In stock

92059A

TUBE,4X9X110

92059-1131

1
Out of stock

92059B

TUBE,AIR FILTER-ACV

92059-1770

1
Out of stock

92059C

TUBE,AIR SWITCH,LH

92059-1771

1

$21.76

In stock

92059D

TUBE,AIR SWITCH,RH

92059-1772

1
Out of stock

92059E

TUBE,BREATHER

92059-1773

1

$11.29

In stock

92071

GROMMET,AIR FILTER

92071-1028

1

$5.78

In stock

92071A

GROMMET,AIR FILTER

92071-1114

1
Out of stock

92081

SPRING,COIL,BLACK

92081-1457

1

$9.04

In stock

92093

SEAL,AIR FILTER CAP

92093-1233

1

$9.20

In stock

92093A

SEAL,AIR FILTER

92093-1234

1
Out of stock

220

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock

702

TUBE-RUBBER,5X350

702A05350

1

$29.70

In stock
