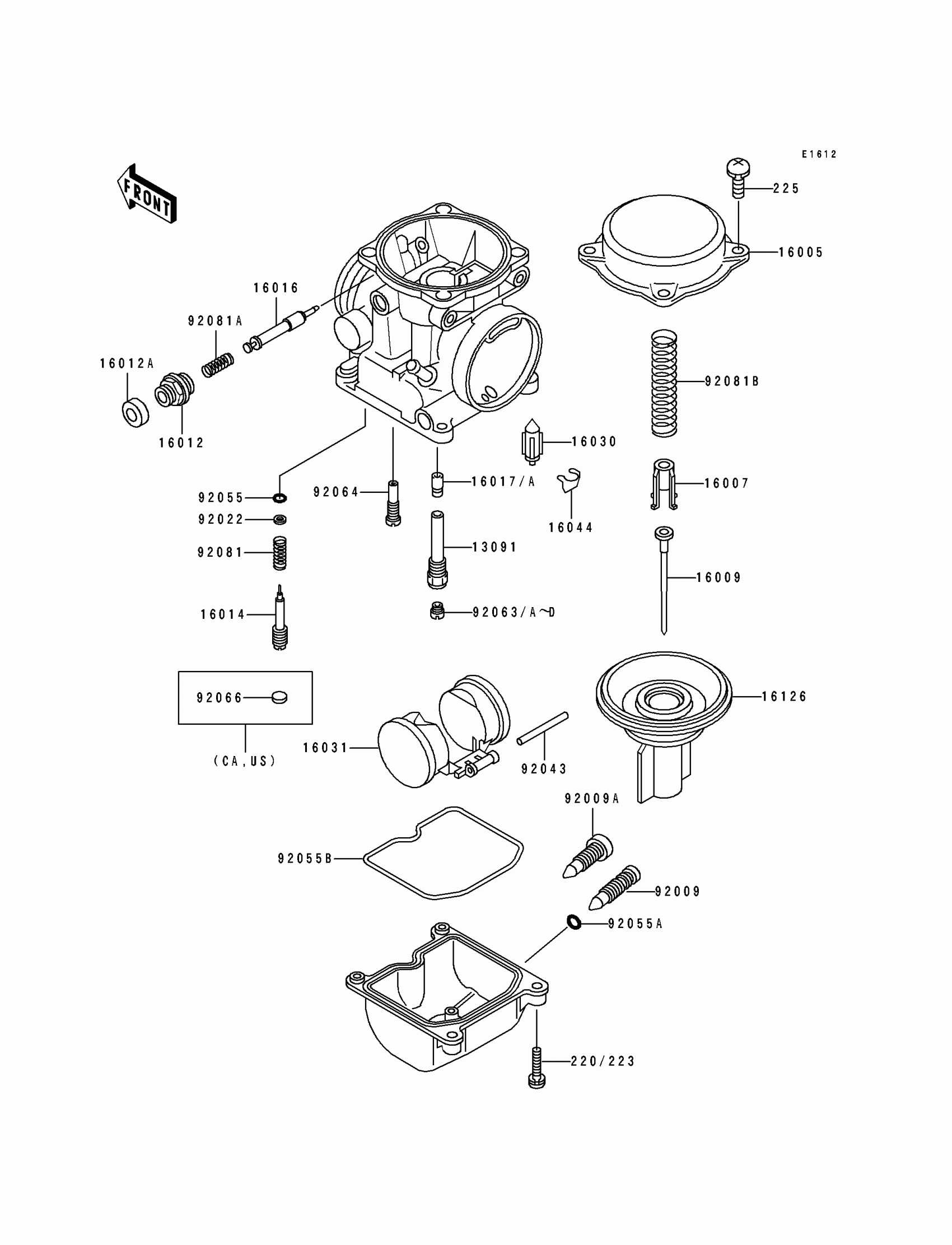

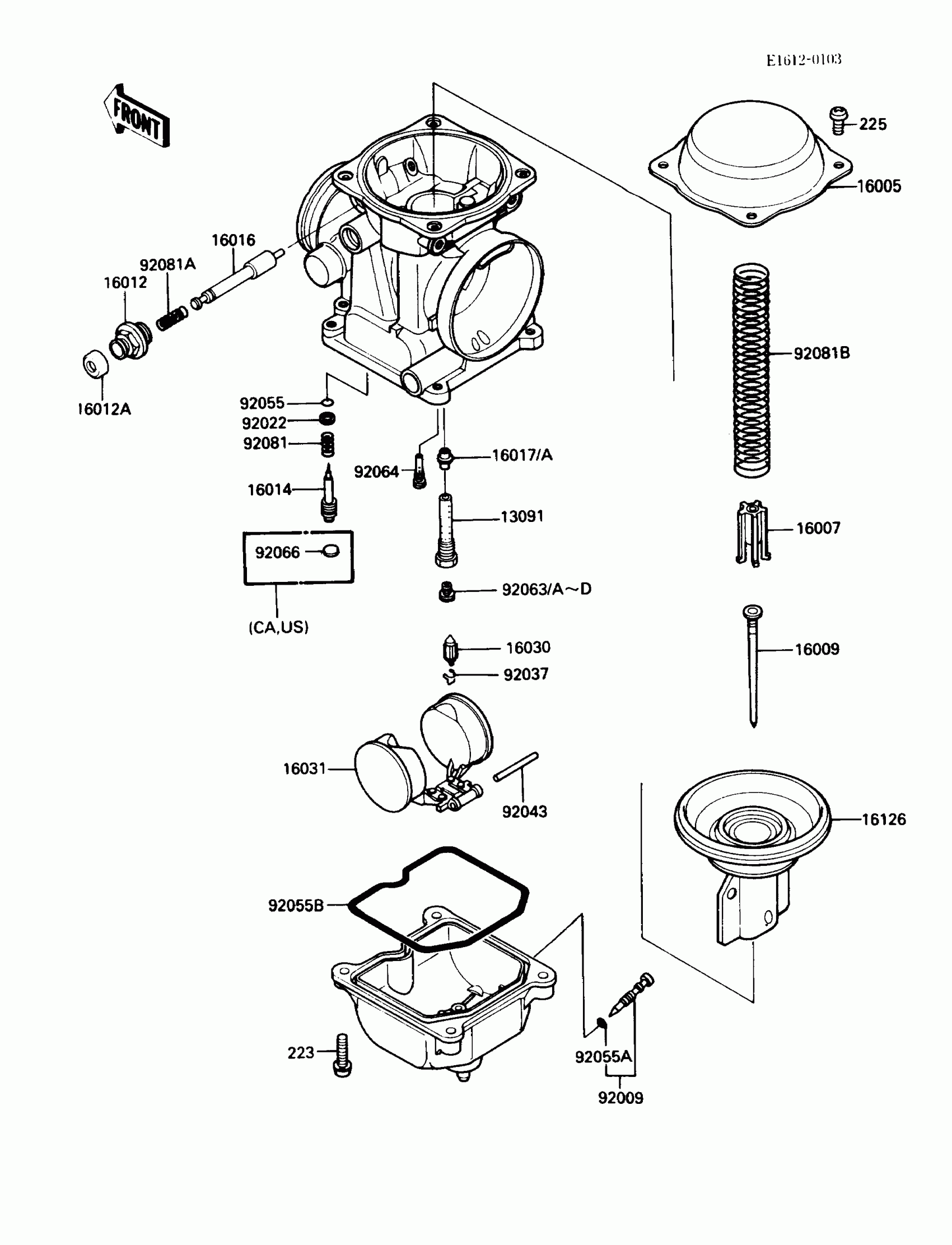

Kawasaki EX500 Carburetor Parts Diagram

#

Description
Price

13091

HOLDER,NEEDLE JET

13091-1406

$34.01

16005

TOP-CHAMBER,MIXING,27/60

16005-1057

$46.10

16007

SEAT-SPRING,VALVE

16007-1117

$20.29

16009

NEEDLE-JET,N36N

16009-1342

Unavailable

16012

CAP-STARTER PLUNGER

16012-1051

$8.50

16012A

CAP-STARTER PLUNGER

16012-1052

$11.72

16014

SCREW-PILOT AIR

16014-1054

$23.12

16016

PLUNGER,STARTER

16016-1061

$45.45

16017

JET-NEEDLE

16017-1059

$43.46

16017A

JET-NEEDLE,#6

16017-1208

$52.49

16030

VALVE-FLOAT

16030-1007

$42.48

16031

FLOAT

16031-1056

$47.31

16126

VALVE,VACUUM

16126-1173

$204.57

92009

SCREW,DRAIN,M6X1.0

92009-1095

$11.33

92022

WASHER,PLAIN

92022-1003

$3.29

92037

CLAMP,FLOAT VALVE

16044-007

$6.04

92043

PIN,FLOAT

92043-1207

$10.71

92055

RING-O,PILOT ADJUST

92055-1002

$3.29

92055A

RING-O

92055-1053

$3.24

92055B

RING-O,FLOAT CHAMBER

92055-1222

$13.15

92063

JET-MAIN,#135

92063-1014

$10.71

92063A

JET-MAIN,#125

92063-1069

$11.23

92063B

JET-MAIN,#128

92063-1074

$10.71

92063C

JET-MAIN,#130

92063-1075

$13.39

92063D

JET-MAIN,#132

92063-1076

$13.39

92064

JET-PILOT,#35

92064-1101

$12.84

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$3.85

92081

SPRING,PILOT ADJUST SCREW

92081-1002

$4.14

92081A

SPRING,STARTER PLUNGER

92081-1761

$9.31

92081B

SPRING,VACUUM VALVE

92081-1874

Unavailable

223

SCREW-PAN-WS-CROS,4X16

223C0416

$3.14

225

SCREW-PAN-WSP-CROS,4X18

225C0418

Unavailable
