1989 Kawasaki EX500 Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1989 Kawasaki EX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

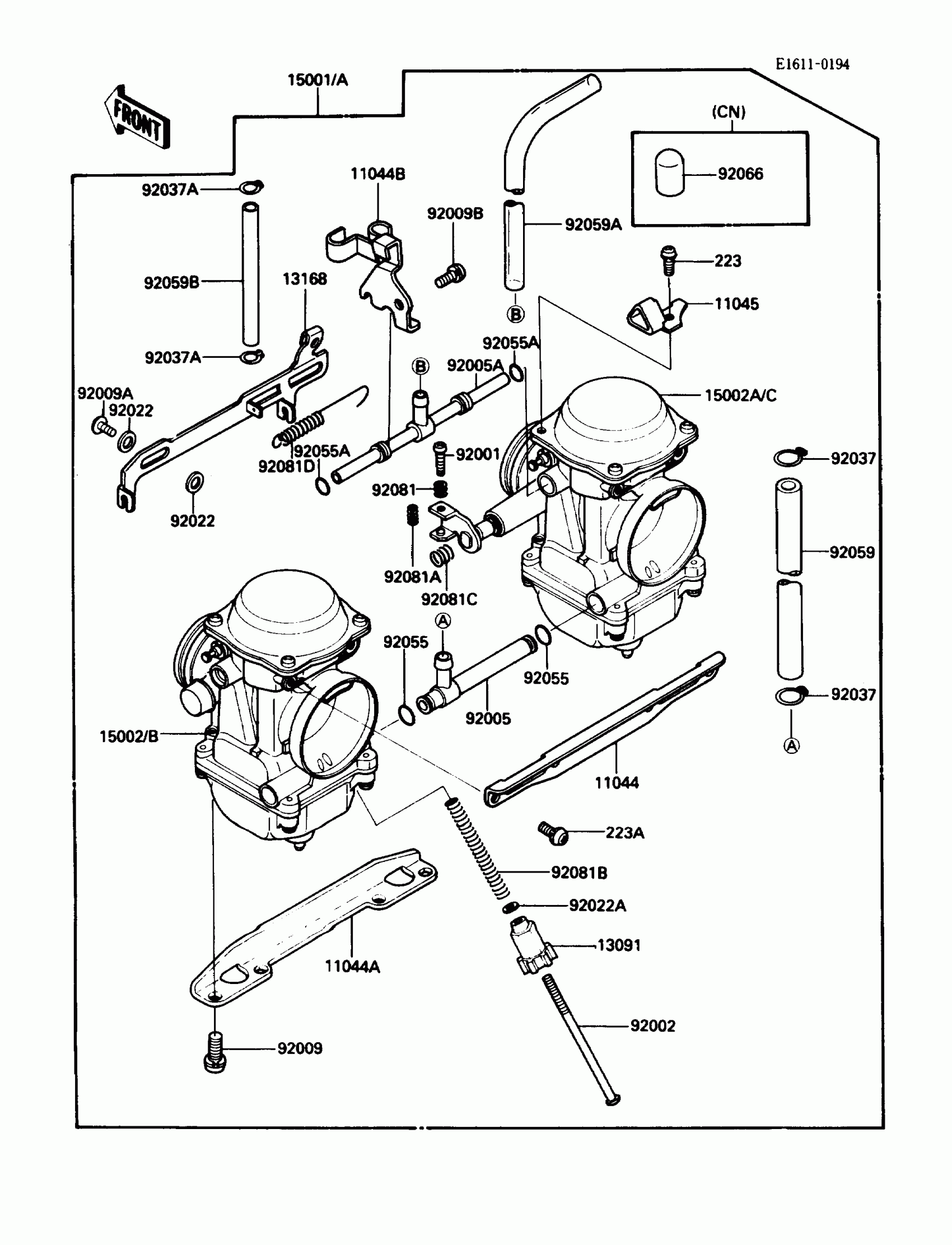

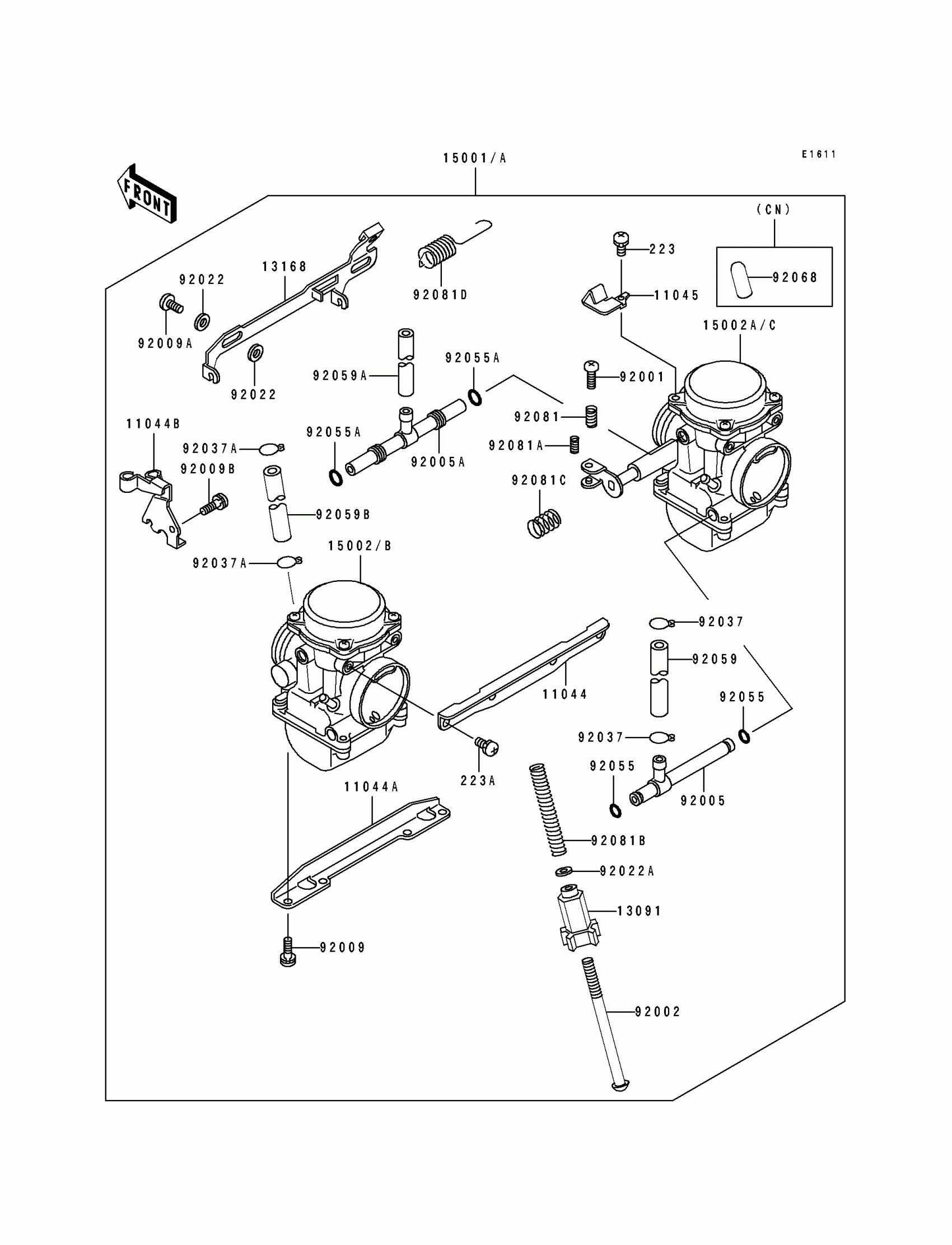

1989 Kawasaki EX500 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11044

1

$68.87

In stock

11044A

1

$73.73

In stock

11044B

1

$70.10

In stock

11045

BRACKET,STARTER LEVER

11045-1824

1
Out of stock

13091

1

$16.31

In stock

13168

LEVER

13168-1360

1

$76.50

In stock

15001

CARBURETOR-ASSY

15001-1334

1

$1,285.97

In stock

15001A

CARBURETOR-ASSY

15001-1335

1
Out of stock

15002

CARBURETOR,LH

15002-1492

1
Out of stock

15002A

CARBURETOR,RH

15002-1493

1

$749.90

In stock

15002B

CARBURETOR,LH

15002-1494

1
Out of stock

15002C

CARBURETOR,RH

15002-1495

1
Out of stock

92001

1

$15.88

In stock

92002

BOLT,THROTTLE STOP SCREW

92002-1552

1
Out of stock

92005

FITTING

92005-1133

1
Out of stock

92005A

FITTING

92005-1134

1
Out of stock

92009

SCREW,6X16

92009-1129

1
Out of stock

92009A

SCREW

92009-1262

1
Out of stock

92009B

SCREW,5X10

92009-1365

1
Out of stock

92022

1

$3.82

In stock

92022A

1

$4.42

In stock

92037

CLAMP,FUEL TUBE

92037-1075

1

$3.16

In stock

92037A

CLAMP,TUBE

92037-1477

1

$3.43

In stock

92055

RING-O

92055-1004

1

$3.43

In stock

92055A

RING-O

92055-1223

1

$4.37

In stock

92059

1

$34.56

In stock

92059A

TUBE,6.5X9.5X500

92059-1465

1

$34.01

In stock

92059B

TUBE,5X9X140

92059-1634

1

$18.19

In stock

92066

PLUG,12X25

92068-006

1

$3.39

In stock

92081

SPRING

92081-1620

1

$3.94

In stock

92081A

1

$4.12

In stock

92081B

SPRING,THROTTLE STOP SCREW

92081-1875

1
Out of stock

92081C

SPRING

92081-1876

1

$10.93

In stock

92081D

1

$22.88

In stock

223

SCREW-PAN-WS-CROS,4X20

223C0420

1
Out of stock

223A

1

$3.28

In stock
