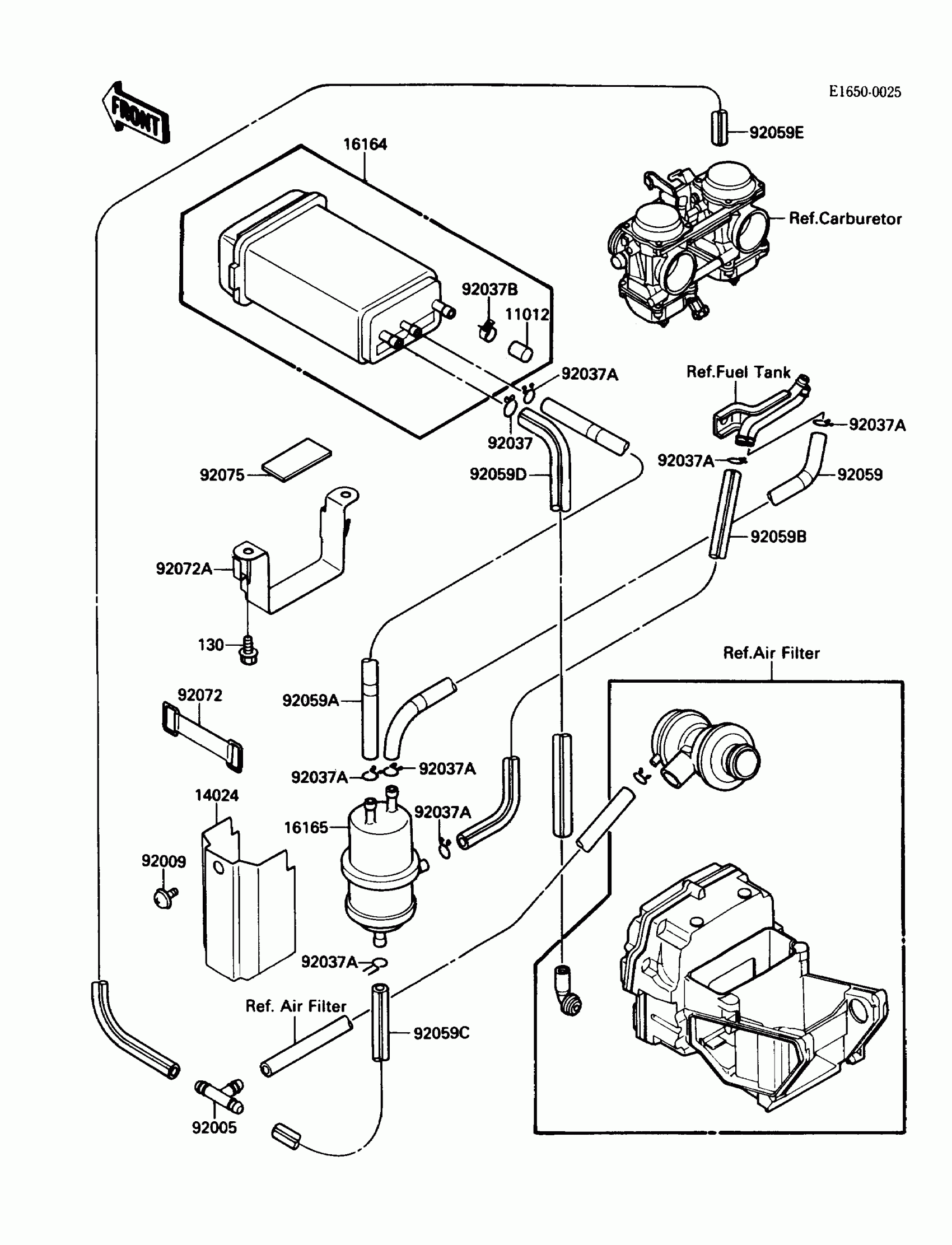

Find the part on the Fuel Evaporative System diagram for your 1989 Kawasaki EX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

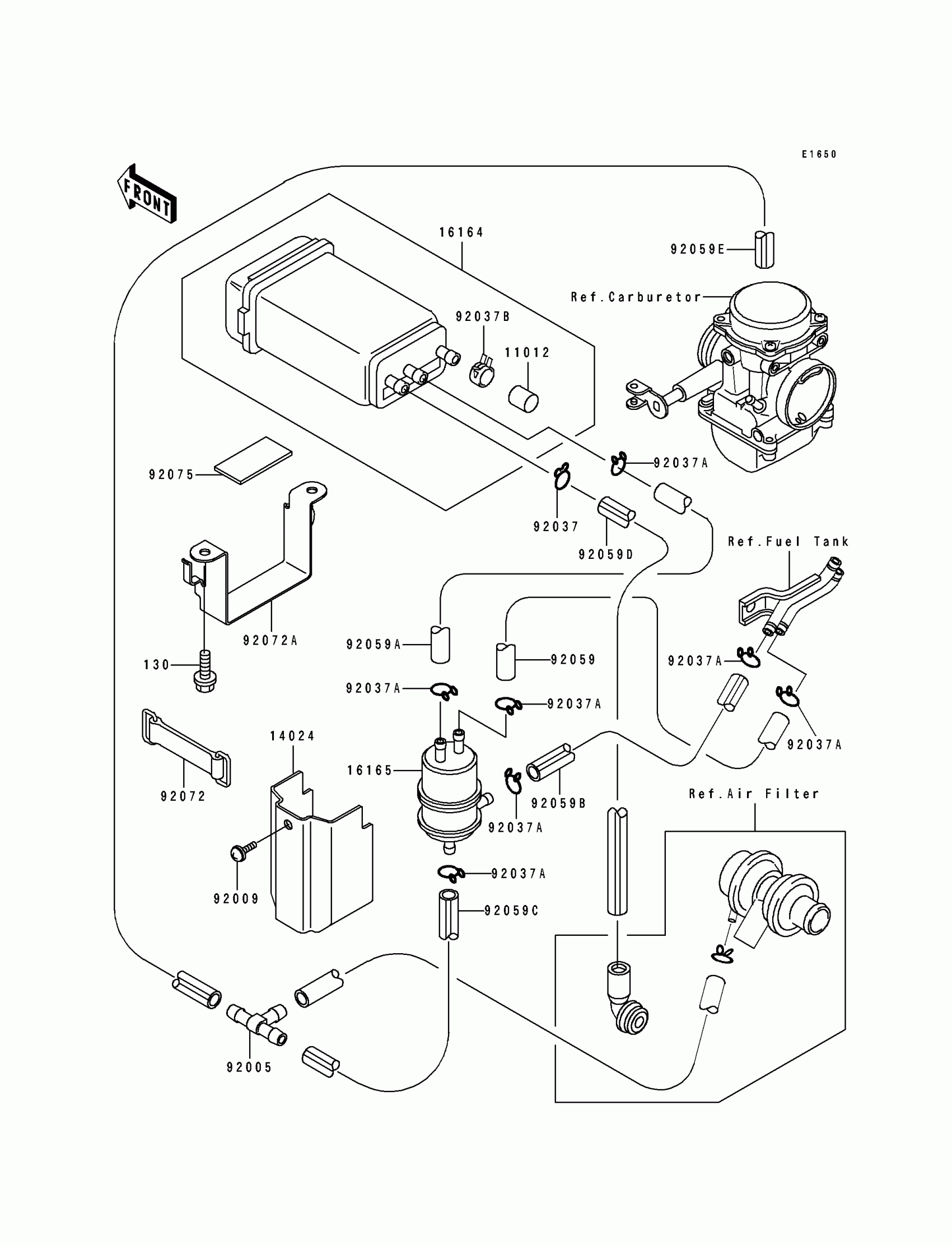

1989 Kawasaki EX500 Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,CANISTER

11012-1388

1

$8.31

In stock

14024

COVER,SEPARATOR

14024-1399

1
Out of stock

16164

CANISTER

16164-1054

1

$132.79

In stock

16165

SEPARATOR

16165-1001

1

$81.73

In stock

92005

FITTING,TUBE,T-TYPE

92005-1017

1
Out of stock

92009

SCREW,6X10

92009-1402

1
Out of stock

92037

CLAMP-HOSE

92037-1104

1

$1.27

In stock

92037A

CLAMP,TUBE

92037-147

1

$5.84

In stock

92037B

CLAMP,CANISTER

92037-1512

1

$5.71

In stock

92059

TUBE,5X10X170,BLUE

92059-1496

1
Out of stock

92059A

TUBE,5X10X320,BLUE

92059-1499

1
Out of stock

92059B

TUBE,5X10X250,RED

92059-1809

1
Out of stock

92059C

TUBE,5X10X380,WHITE

92059-1824

1

$20.29

In stock

92059D

TUBE,7X12X410,GREEN

92059-1825

1

$17.07

In stock

92059E

TUBE,5X10X160,WHITE

92059-1826

1

$32.75

In stock

92072

BAND,L=50

92072-066

1

$12.72

In stock

92072A

BAND,CANISTER

92072-1216

1

$19.68

In stock

92075

DAMPER

92075-1830

1

$4.92

In stock

130

BOLT

130B0612

1
Out of stock
