1993 Kawasaki EX500 Engine Covers Diagram

← All diagrams

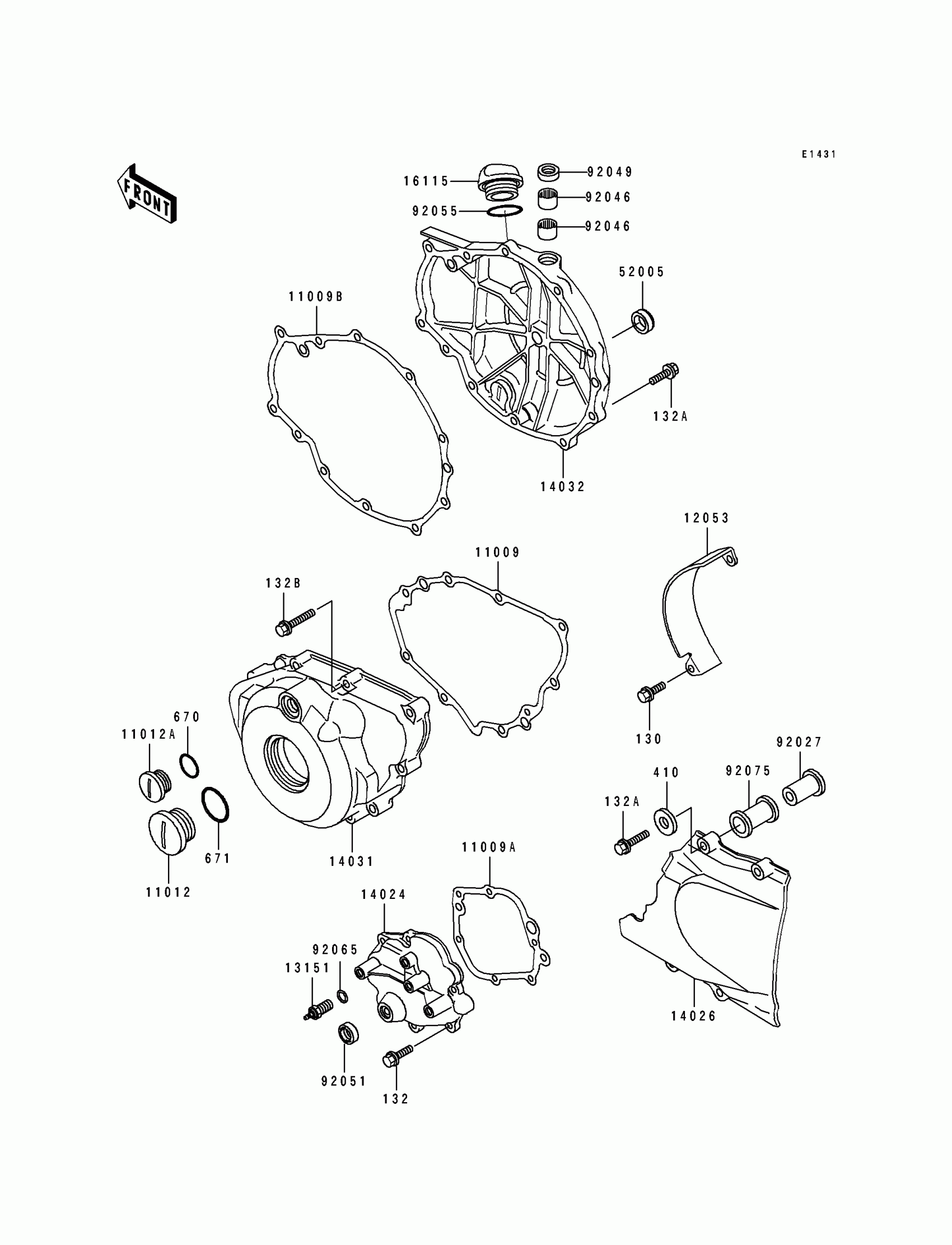

Find the part on the Engine Covers diagram for your 1993 Kawasaki EX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Kawasaki EX500 Engine Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,GENERATOR COVER

11009-1834

1
Out of stock

11009A

GASKET,CHANGE MECHANISM COVER

11009-1835

1
Out of stock

11009B

GASKET,CLUTCH COVER

11009-1836

1
Out of stock

11012

CAP

11012-1362

1

$6.98

In stock

11012A

CAP,TOP MARK

11012-1363

1

$5.15

In stock

12053

GUIDE-CHAIN

12053-1215

1

$12.46

In stock

13151

SWITCH-COMP,NEUTRAL

13151-1007

1
Out of stock

14024

COVER,CHANGE MECHANISM

14024-1387

1
Out of stock

14026

COVER-CHAIN

14026-1128

1

$77.08

In stock

14031

COVER-GENERATOR

14031-1202

1

$218.05

In stock

14032

COVER-CLUTCH

14032-1231

1
Out of stock

16115

CAP-OIL FILLER

16115-1009

1

$11.32

In stock

52005

GAUGE,OIL LEVEL

52005-1009

1

$14.45

In stock

92027

COLLAR

92027-1858

1

$5.37

In stock

92046

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92049

SEAL-OIL,TB12205.5

92049-1271

1
Out of stock

92051

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

92065

GASKET,10.5X16X1

92065-058

1

$3.16

In stock

92075

DAMPER

92075-1681

1

$5.37

In stock

130

BOLT-FLANGED,6X12

130G0612

1
Out of stock

132

BOLT-FLANGED-SMALL,6X20

132J0620

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X25

132J0625

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X30

132J0630

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM,BLACK

410F0600

1
Out of stock

670

O RING,18MM

670B2018

1

$1.25

In stock

671

O RING,40MM

671B2540

1

$4.93

In stock
