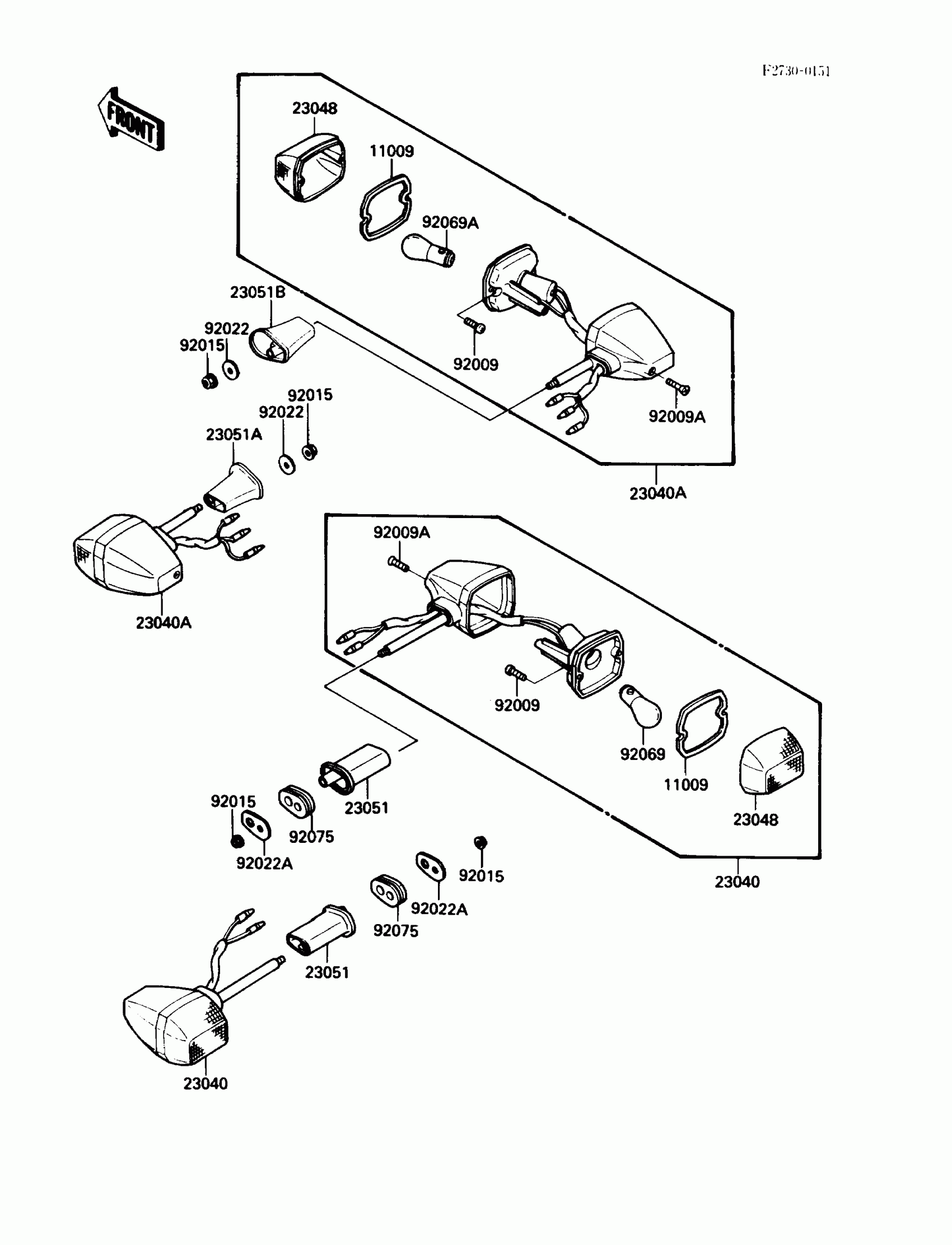

Find the part on the Turn Signals diagram for your 1989 Kawasaki EX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

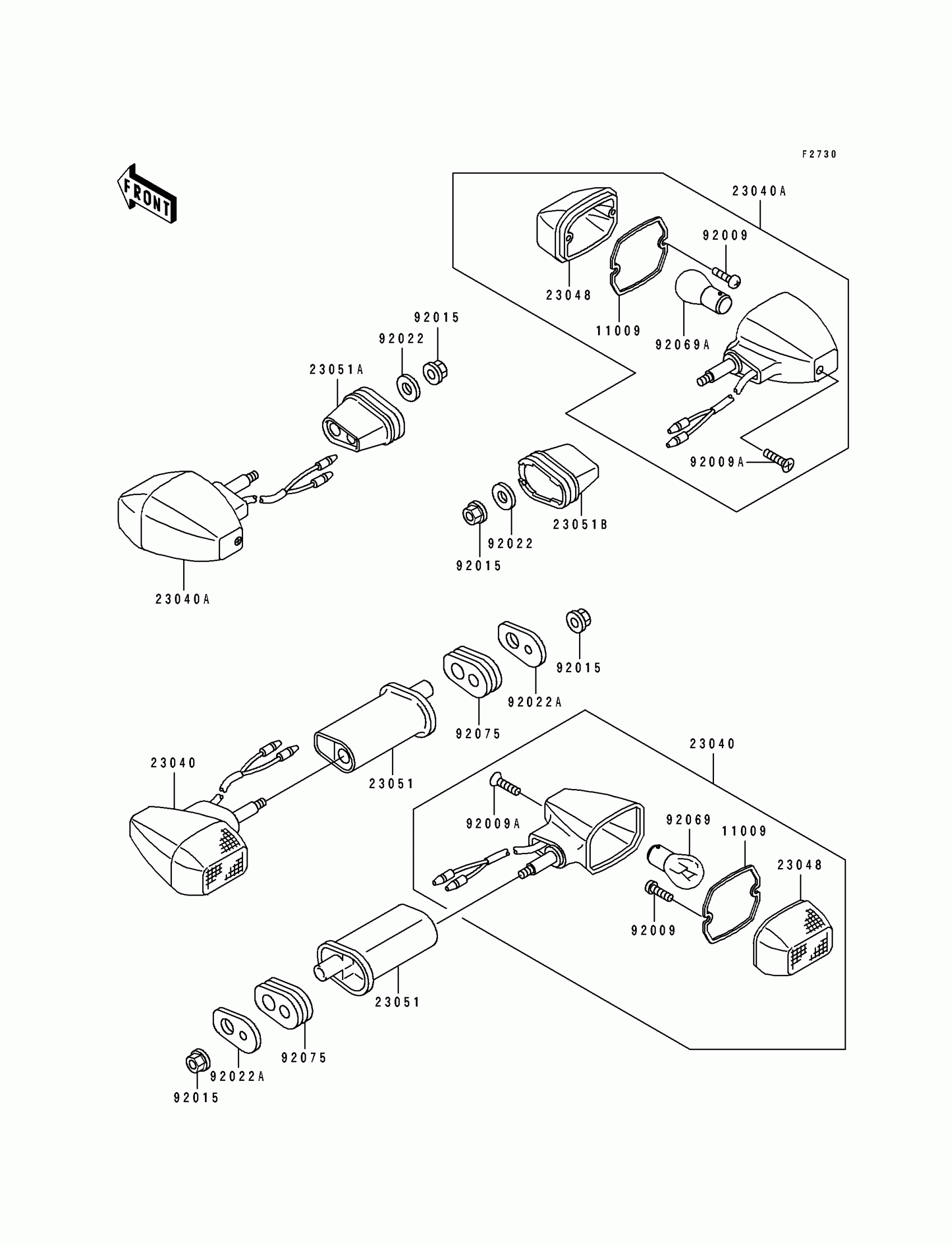

1989 Kawasaki EX500 Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,SIGNAL LAMP

11009-1402

1

$4.39

In stock

23040

LAMP-SIGNAL,RR

23040-1108

1

$61.35

In stock

23040A

LAMP-SIGNAL,FR

23040-1164

1

$81.61

In stock

23048

LENS-SIGNAL LAMP

23048-1054

1

$8.30

In stock

23051

BRACKET-SIGNAL LAMP

23051-1165

1

$22.73

In stock

23051A

BRACKET-SIGNAL LAMP,FR,LH

23051-1189

1
Out of stock

23051B

BRACKET-SIGNAL LAMP,FR,RH

23051-1190

1
Out of stock

92009

SCREW,TAPPING,3X16

92009-1115

1
Out of stock

92009A

SCREW,TAPPING,4X20

92009-1304

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92022A

WASHER,SIGNAL LAMP

92022-1672

1

$4.44

In stock

92069

BULB,12V 32CP(23W)

92069-055

1

$4.12

In stock

92069A

1

$7.70

In stock

92075

DAMPER,SIGNAL LAMP

92075-1698

1

$7.60

In stock
