1978 Yamaha EX440B Electrical Diagram

← All diagrams

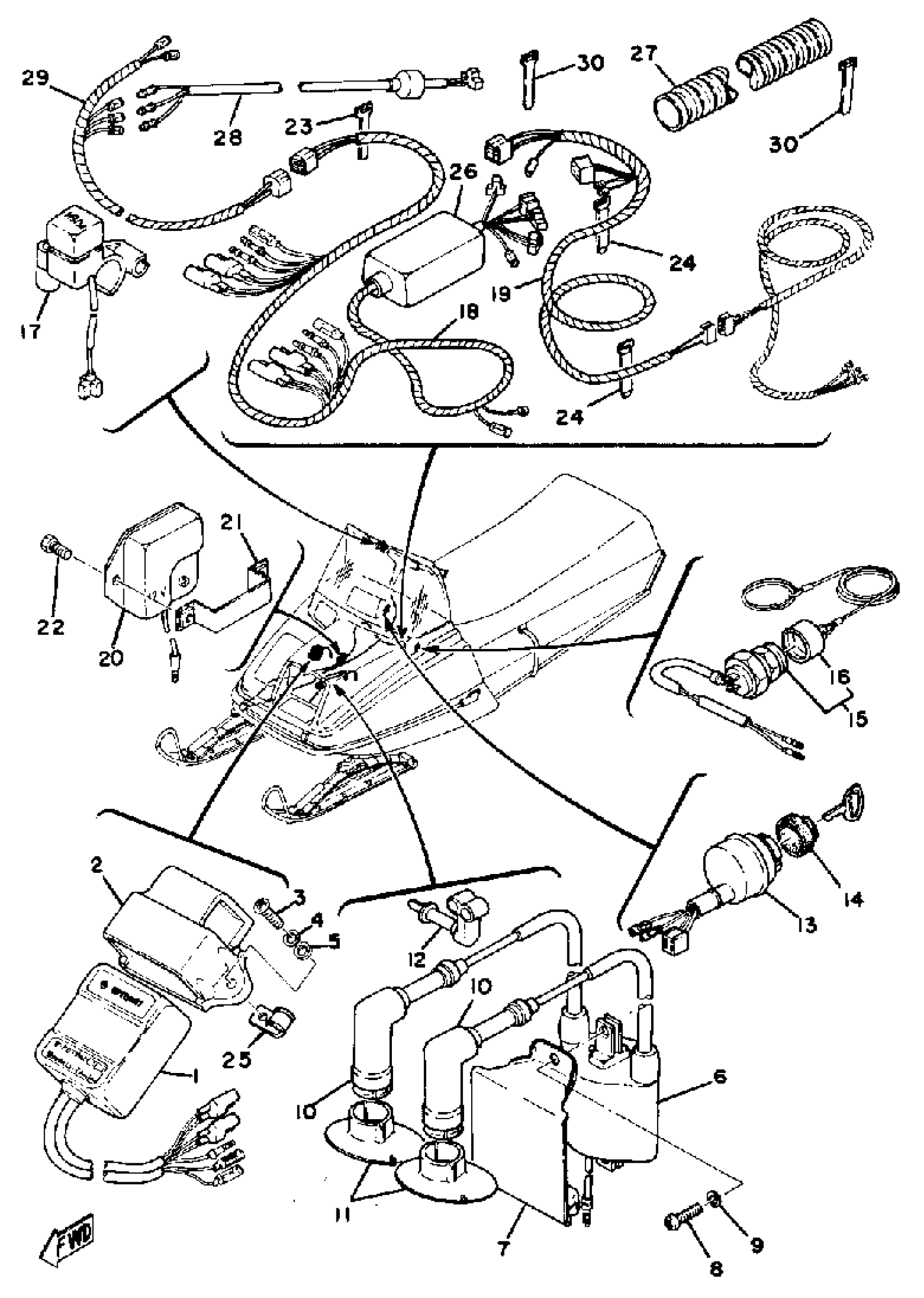

Find the part on the Electrical diagram for your 1978 Yamaha EX440B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha EX440B Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

8E7-85540-10-00

1
Out of stock

2

BAND

363-85546-00-00

1
Out of stock

3

SCREW, PAN HEAD

98580-06016-00

1

$2.90

In stock

4

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

5

WASHER, PLATE

90201-06M08-00

1
Out of stock

6

IGNITION COIL ASY

8E7-82310-09-00

1
Out of stock

7

COVER, IGNITN COIL

(8E7-82314-00-00)

1
Out of stock

8

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

PLUG CAP ASSY

7KA-82370-00-00

1

$62.25

In stock

11

SEAL, PLUG CAP

8E7-82372-00-00

1
Out of stock

12

CLAMP, CORD

(8E7-82361-00-00)

1
Out of stock

13

MAIN SWITCH ASSEMBLY

898-82508-20-00

1
Out of stock

14

COLLAR, MAIN SWITCH

806-82516-00-00

1
Out of stock

15

STOP SWITCH ASSEMBLY

8J7-82550-01-00

1
Out of stock

16

CAP, SWITCH

8H8-82552-09-00

—

$42.05

In stock

17

SWITCH, HANDLE 1

8E3-83976-02-00

—

$93.69

In stock

18

WIRE HARNESS ASSEMBLY

8G6-82590-20-00

1
Out of stock

19

WIRE HARNESS ASSEMBLY 2

8G6-82580-20-00

1
Out of stock

20

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

—

$50.55

In stock

21

PLATE, REG FITTING

8G6-81915-00-00

1
Out of stock

22

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

23

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

24

BAND

341-26397-01-00

1
Out of stock

25

CLAMP

90465-06013-00

1
Out of stock

26

COVER, CONNECTER

(878-82599-00-00)

1
Out of stock

27

PROTC, WIRE HARNESS

(8G6-82589-00-00)

1
Out of stock

28

CORD, HEADLIGHT

8G6-84359-00-00

1
Out of stock

29

WIRE, LEAD 1

8G6-84348-00-00

1
Out of stock

30

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock
