1978 Yamaha EX440B Generator Diagram

← All diagrams

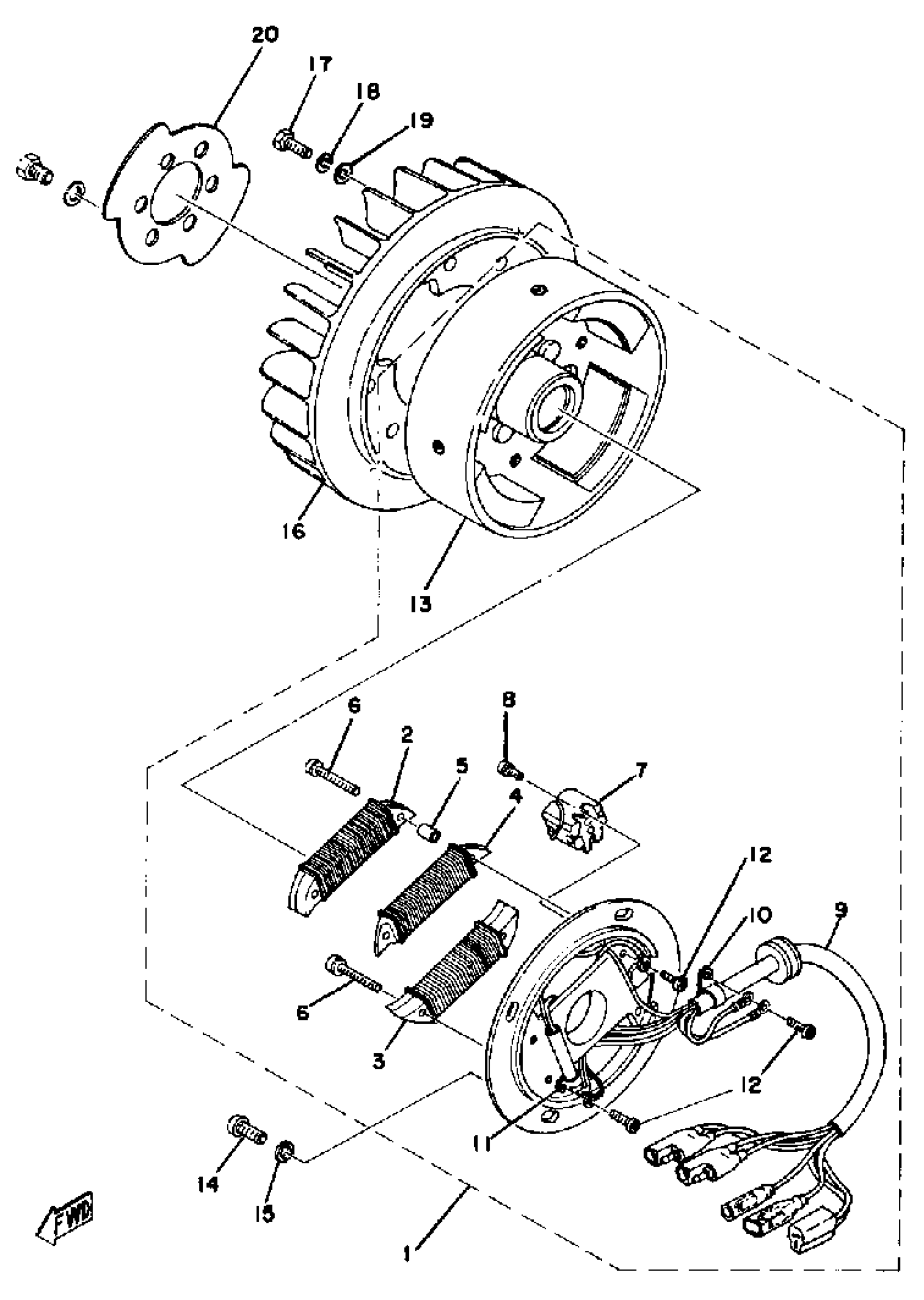

Find the part on the Generator diagram for your 1978 Yamaha EX440B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha EX440B Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI MAGNETO ASSEMBLY

(8E7-85500-10-00)

1
Out of stock

2

. COIL SOURCE 2

8E7-85512-10-00

1
Out of stock

3

. COIL, LIGHTING 1

8E7-85513-10-00

1
Out of stock

4

COIL, CHARGE

8E7-85541-10-00

1
Out of stock

5

. SPACER

647-81318-10-00

1
Out of stock

6

SCREW, PAN

98507-05035-00

1

$6.69

In stock

7

COIL PULSER

(888-85543-10-00)

1
Out of stock

8

SCREW, PAN HEAD

110-81346-21-00

1

$4.32

In stock

9

LEAD WIRE ASSEMBLY

(8E7-85515-10-00)

1
Out of stock

10

. CLAMP

109-81328-11-00

1
Out of stock

11

CLAMP, LEAD

(363-85528-10-00)

1
Out of stock

12

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

13

. ROTOR ASSEMBLY

8E7-85550-10-00

1
Out of stock

14

SCREW, PAN

98507-06014-00

1

$6.18

In stock

15

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

16

FAN

838-12611-00-00

1
Out of stock

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

20

COVER, HOLE

(8A5-81362-00-00)

1
Out of stock
