1978 Yamaha EX440B Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1978 Yamaha EX440B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

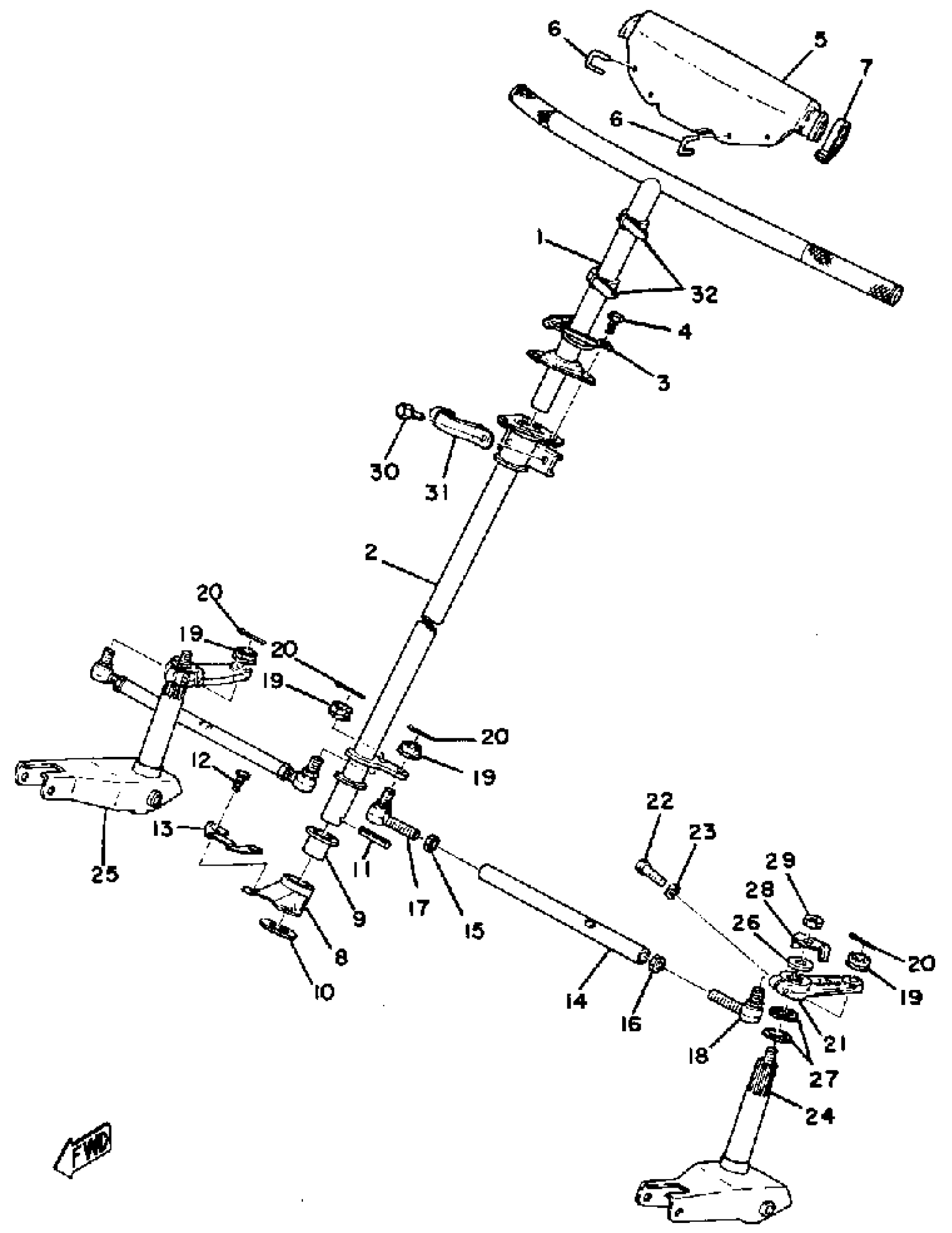

1978 Yamaha EX440B Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN, STEERING

8E7-23811-00-00

1
Out of stock

2

COLUMN, STEERING 2

8E7-23813-00-00

1
Out of stock

3

WASHER, LOCK 1

8A5-23894-00-00

1
Out of stock

4

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

5

PAD, STEERING (878-23815-00)

878-23815-01-00

1
Out of stock

6

CLAMP

(90465-05024-00)

1
Out of stock

7

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

8

BRACKET, STRG LOWERLOWER

8E7-23868-00-00

1
Out of stock

9

BEARING, STRG LOWERLOWER

8E7-23875-00-00

1
Out of stock

10

BEARING, STEERING

(856-23812-00-00)

1
Out of stock

11

PIN, SPRING

91609-60040-00

1
Out of stock

12

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

13

WASHER, LOCK 2

(8E7-23895-00-00)

1
Out of stock

14

ROD, STEERING RELAY

888-23821-00-00

1
Out of stock

15

NUT (682)

95380-10700-00

1

$5.78

In stock

16

NUT, HEXAGON (8A5)

90170-10186-00

—

$7.60

In stock

17

JOINT, UNIVERSAL 1

888-23841-91-00

1
Out of stock

18

JOINT, UNIVERSAL 2

888-23845-91-00

1
Out of stock

19

NUT, CASTLE

90171-10018-00

1
Out of stock

20

PIN, COTTER(6L5)

91490-25030-00

—

$2.85

In stock

21

ARM, OUTSIDE 1

8G6-23851-00-00

1
Out of stock

22

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

23

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

24

COLUMN, SKI 1

8G6-23853-00-00

1
Out of stock

25

COLUMN, SKI 2

8G6-23854-00-00

1
Out of stock

26

WASHER, PLATE (3J6)

90201-100A1-00

—

$6.71

In stock

27

WASHER, WAVE (878)

90206-20037-00

—
Out of stock

28

WASHER, LOCK

90215-10096-00

1
Out of stock

29

NUT(3BM)

95314-10600-00

—

$1.74

In stock

30

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

31

WASHER, LOCK

90215-06054-00

1
Out of stock

32

BAND

341-26397-01-00

1
Out of stock
