1976 Yamaha EX440 C - D - I - Magneto Diagram

← All diagrams

Find the part on the C - D - I - Magneto diagram for your 1976 Yamaha EX440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

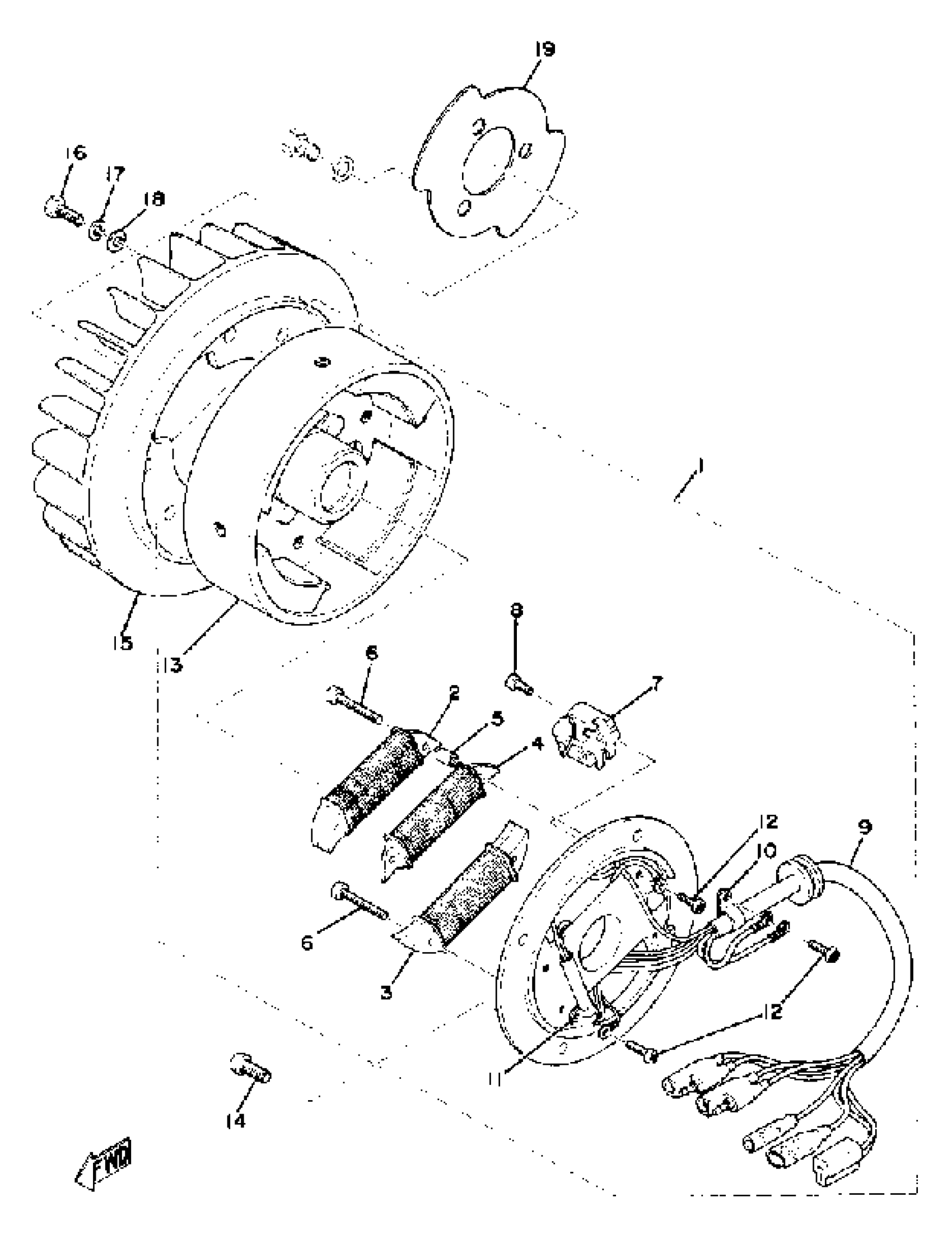

1976 Yamaha EX440 C - D - I - Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

.. SPACER

888-81318-10-00

1
Out of stock

1

CDI MAGNETO ASSEMBLY

(8A5-85500-10-00)

1
Out of stock

2

.. COIL, CHARGE

888-85541-10-00

1
Out of stock

2

CHARGE COIL

(99999-00850-00)

1
Out of stock

3

COIL, LIGHTING 1

(8A5-81313-10-00)

1
Out of stock

4

COIL, LIGHTING 2

(8A5-81314-10-00)

1
Out of stock

5

. SPACER

647-81318-10-00

1
Out of stock

6

SCREW, PAN

98507-05035-00

1
Out of stock

7

COIL PULSER

(888-85543-10-00)

1
Out of stock

8

SCREW, PAN HEAD

110-81346-21-00

1
Out of stock

9

LEAD WIRE ASSEMBLY

(8A5-85515-10-00)

1
Out of stock

10

. CLAMP

109-81328-11-00

1
Out of stock

11

CLAMP, LEAD

(363-85528-10-00)

1
Out of stock

12

SCREW, PAN HEAD (713)

98580-04008-00

1
Out of stock

13

ROTOR ASSEMBLY

(8A5-85550-10-00)

1
Out of stock

14

SCREW, PAN

98507-06014-00

—
Out of stock

15

FAN

838-12611-00-00

1
Out of stock

16

BOLT

90101-06127-00

1
Out of stock

17

WASHER, SPRING

92995-06100-00

1
Out of stock

18

WASHER, PLATE

90201-06M08-00

1
Out of stock

19

COVER, HOLE

(8A5-81362-00-00)

1
Out of stock
