1976 Yamaha EX440 Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1976 Yamaha EX440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

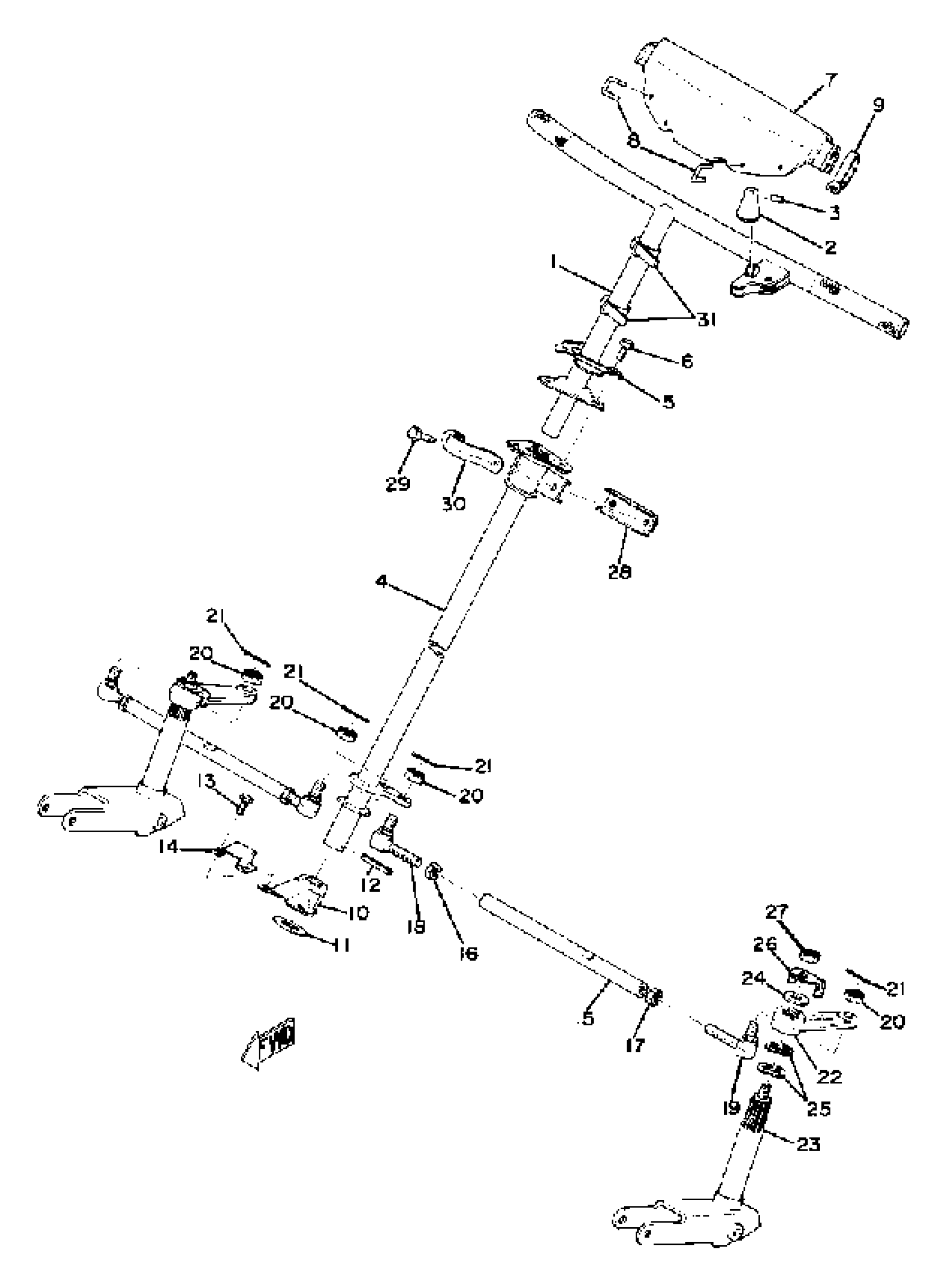

1976 Yamaha EX440 Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STRG COLUMN ASSEMBLY

8A5-23810-00-00

1
Out of stock

2

LEVER, LOCK

(803-83965-00-00)

1
Out of stock

3

PIN, SPEC''L SHAPE

(90249-04022-00)

1
Out of stock

4

COLUMN, STEERING 2

8A5-23813-00-00

1
Out of stock

5

WASHER, LOCK 1

8A5-23894-00-00

1
Out of stock

6

BOLT (661)

97013-06012-00

1

$4.71

In stock

7

PAD, STEERING (878-23815-00)

878-23815-01-00

1
Out of stock

8

CLAMP

(90465-05024-00)

1
Out of stock

9

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

10

BRACKET, STRG LOWERLOWER

8E7-23868-00-00

1
Out of stock

10

BEARING, STRG LOWERLOWER

8E7-23875-00-00

1
Out of stock

10

WASHER, LOCK 2

(8E7-23895-00-00)

1
Out of stock

10

BRACKET STEER LOWR

99999-01162-00

1
Out of stock

11

BEARING, STEERING

(856-23812-00-00)

1
Out of stock

12

PIN, SPRING

91609-60040-00

1
Out of stock

13

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

14

WASHER, LOCK 2

(8E7-23895-00-00)

1
Out of stock

15

ROD, STEERING RELAY

888-23821-00-00

1
Out of stock

16

. NUT, HEXAGON (802-23833-00)

90170-10082-00

1
Out of stock

17

NUT, HEXAGON

(90170-10135-00)

1
Out of stock

18

JOINT, UNIVERSAL 1

888-23841-91-00

1
Out of stock

19

JOINT, UNIVERSAL 2

888-23845-91-00

1
Out of stock

20

NUT, CASTLE

95307-10900-00

—

$7.55

In stock

21

PIN, COTTER(6L5)

91490-25030-00

—

$2.85

In stock

22

ARM, OUTSIDE 1

888-23851-00-00

1
Out of stock

23

COLUMN, SKI 1

888-23853-01-00

1
Out of stock

24

WASHER, PLATE (3J6)

90201-100A1-00

—

$6.71

In stock

25

WASHER, WAVE (878)

90206-20037-00

—
Out of stock

26

WASHER, LOCK

90215-10096-00

1
Out of stock

27

NUT(3BM)

95314-10600-00

—

$1.74

In stock

28

HOLDER, BEARING

(878-23872-00-00)

1
Out of stock

29

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

30

WASHER, LOCK

90215-06054-00

1
Out of stock

31

BAND

341-26397-01-00

1
Out of stock
