1976 Yamaha EX440 Electrical Diagram

← All diagrams

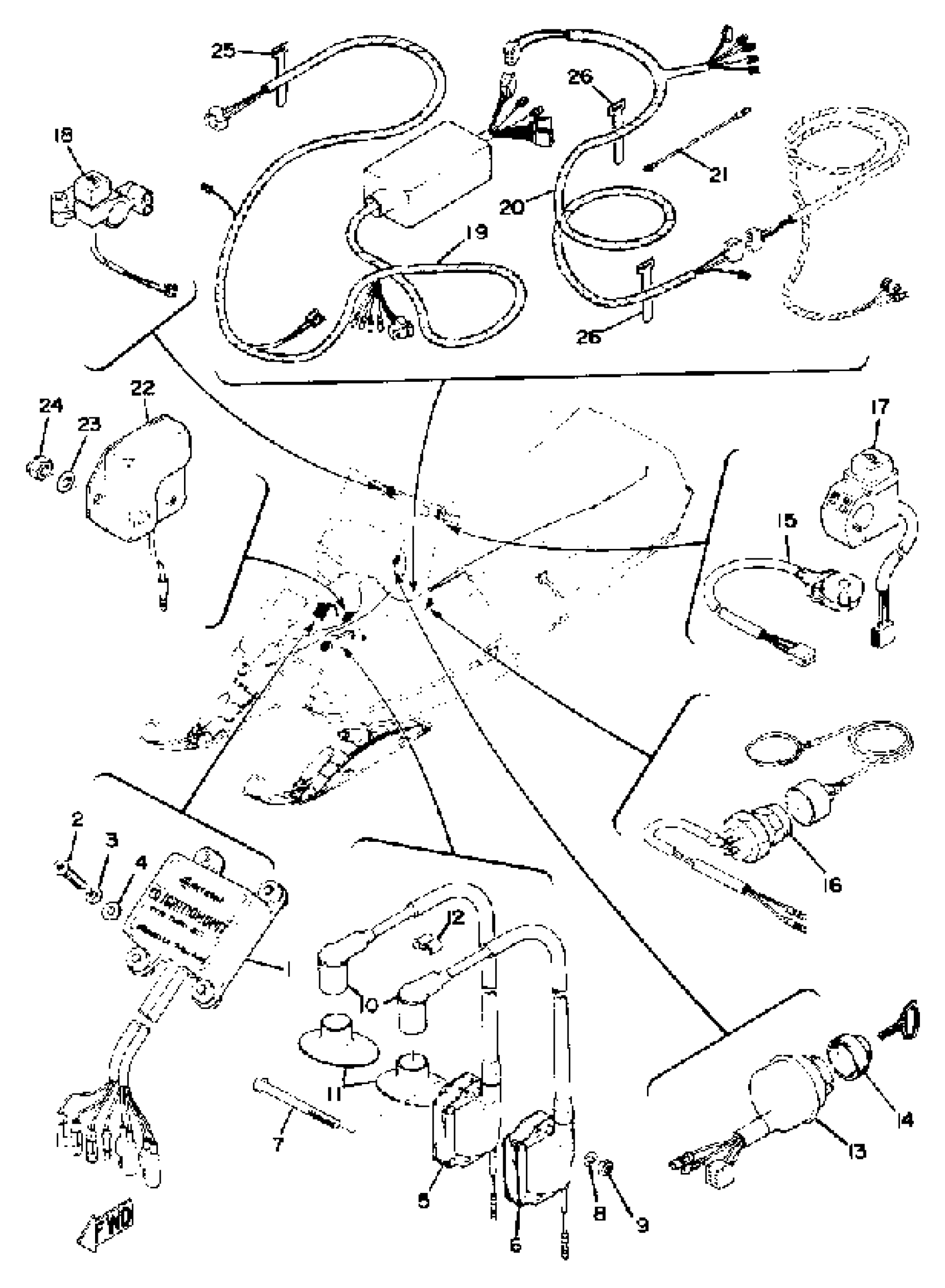

Find the part on the Electrical diagram for your 1976 Yamaha EX440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha EX440 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

888-85540-10-00

1
Out of stock

2

SCREW, PANHEAD (A93)

98580-05525-00

1

$1.54

In stock

3

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

4

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

5

IGNITION COIL ASSEMBLY

8A5-82310-30-00

1
Out of stock

6

IGNITION COIL ASSEMBLY

(8A5-82320-30-00)

1
Out of stock

7

SCREW, PAN HEAD

98507-06070-00

1

$6.91

In stock

8

WASHER, SPRING

92907-06100-00

1
Out of stock

9

NUT(6TA)

95317-06600-00

1

$2.69

In stock

10

PLUG CAP ASSEMBLY

8A5-82370-20-00

1
Out of stock

11

SEAL, PLUG CAP

(8A1-82372-00-00)

1
Out of stock

12

CLAMP(56R)

90464-60067-00

1
Out of stock

13

MAIN SWITCH ASSEMBLY

898-82508-20-00

1
Out of stock

14

COLLAR, MAIN SWITCH

806-82516-00-00

1
Out of stock

15

STOP SWITCH ASSEMBLY

878-82530-00-00

1
Out of stock

16

STOP SWITCH ASSEMBLY

8J7-82550-01-00

1
Out of stock

17

BEAM SWITCH ASSEMBLY

878-83950-00-00

1
Out of stock

18

SWITCH, HANDLE 1

(8A5-83976-00-00)

1
Out of stock

19

WIRE HARNESS ASSEMBLY

(8A5-82590-21-00)

1
Out of stock

20

WIRE HARNESS ASSEMBLY 2

(8A5-82580-20-00)

1
Out of stock

21

WIRE, EARTH LEAD

(838-82519-00-00)

1
Out of stock

22

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

—

$50.55

In stock

23

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

24

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

25

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

26

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock
