1976 Yamaha EX440 Grip-Wiring Diagram

← All diagrams

Find the part on the Grip-Wiring diagram for your 1976 Yamaha EX440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

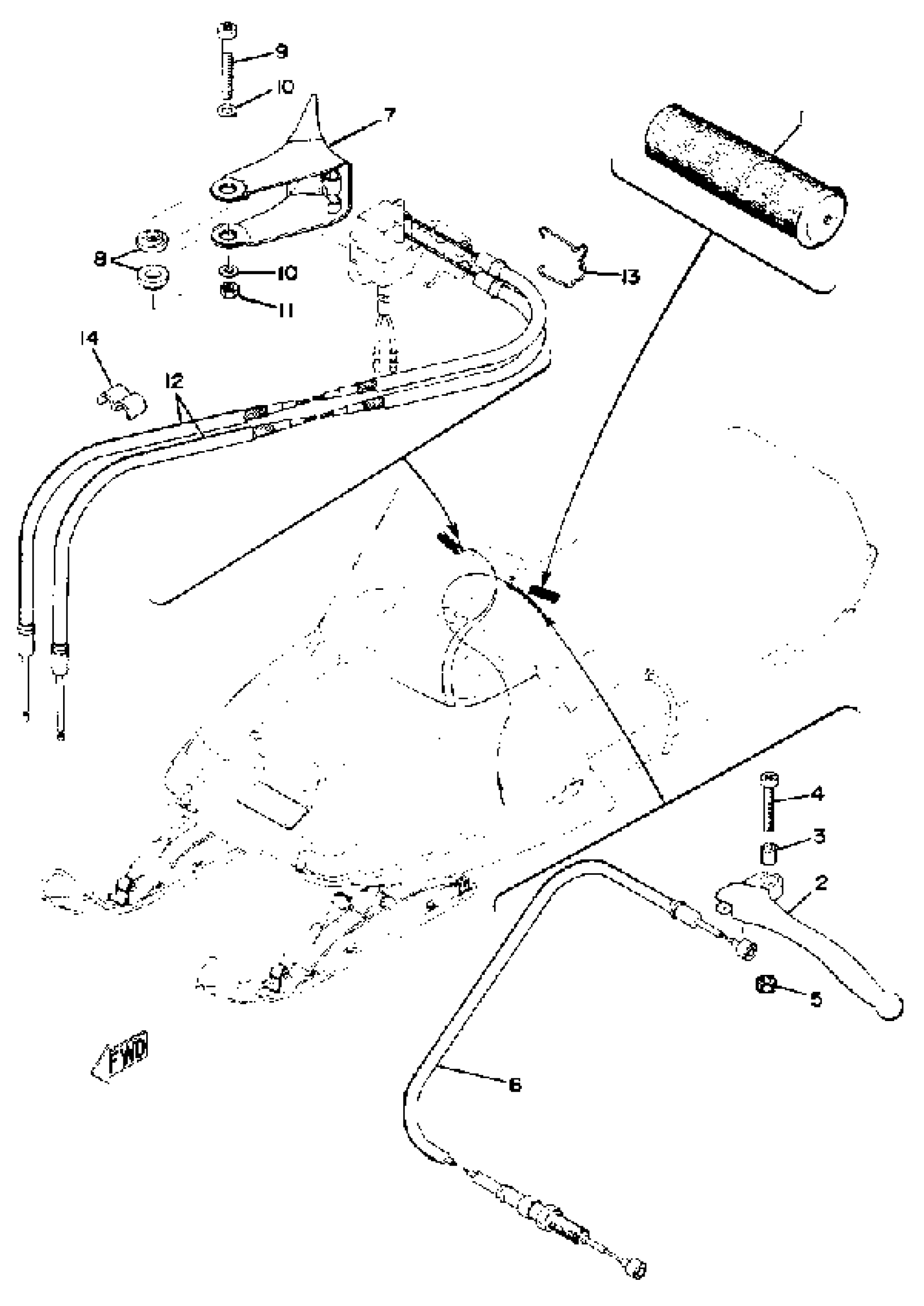

1976 Yamaha EX440 Grip-Wiring Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP

801-26241-02-00

1
Out of stock

2

LEVER L

803-83912-00-38

1
Out of stock

3

COLLAR, LEVER

802-83913-00-00

—

$6.35

In stock

4

SCREW, LVR FITTING

(849-83915-00-00)

1
Out of stock

5

NUT, U

95617-05100-00

1

$6.68

In stock

6

CABLE, BRAKE

8A5-26340-00-00

1
Out of stock

7

LEVER, THROTTLE

(8H0-42138-00-00)

1
Out of stock

8

C0LLAR

90387-062M9-00

1
Out of stock

9

SCREW, PAN HEAD (810-83925-00)

90157-06004-00

1
Out of stock

10

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

11

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

12

CABLE, THROTTLE 1

8A5-26311-00-00

1
Out of stock

13

CLIP, CABLE

(878-26391-00-00)

1
Out of stock

14

CLAMP, CORD

861-82361-00-00

—

$5.34

In stock
