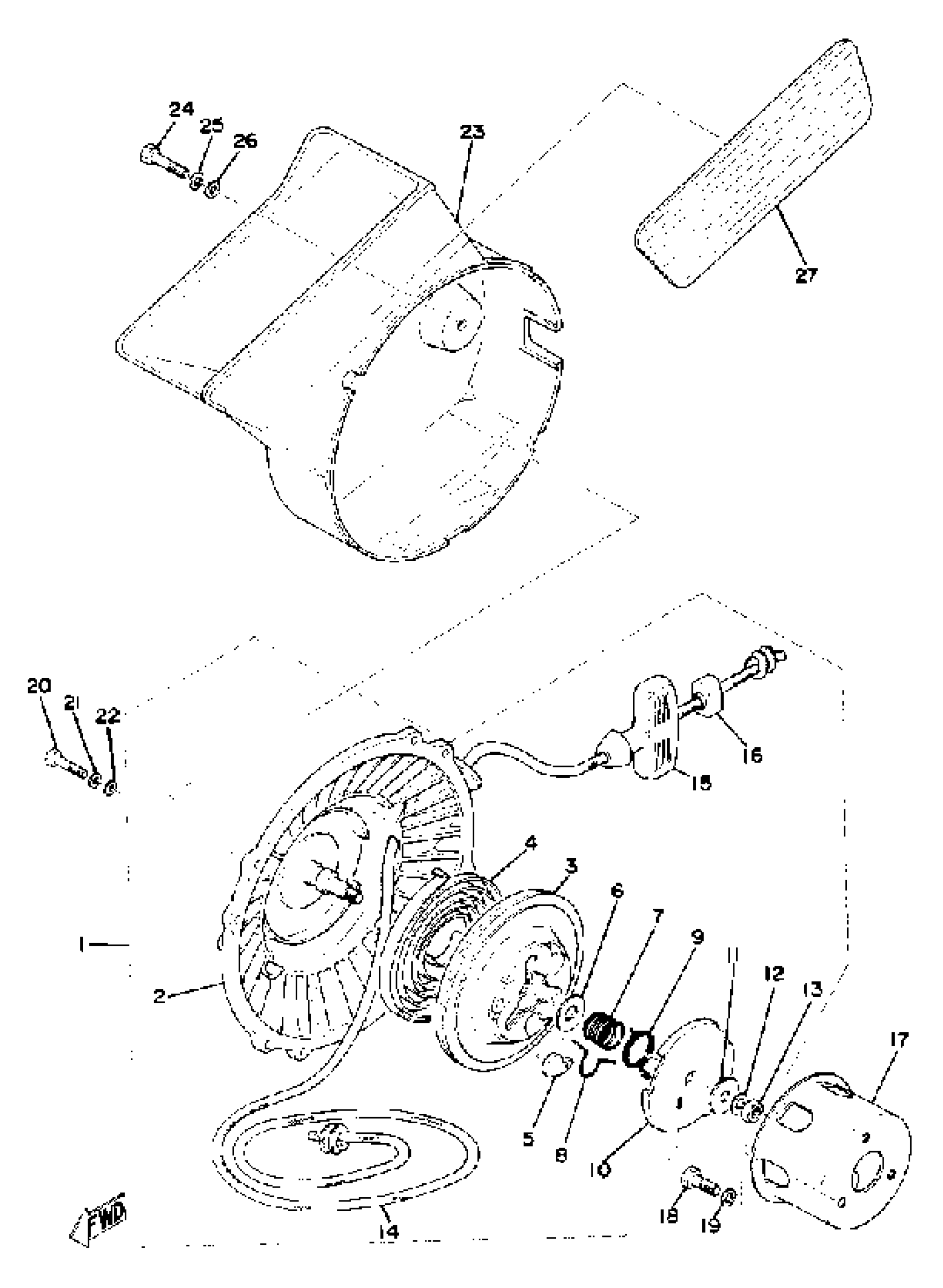

Find the part on the Starter diagram for your 1976 Yamaha EX440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha EX440 Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER ASSEMBLY

(8A5-15710-00-00)

1
Out of stock

2

. CASE, STARTER

8A1-15711-00-00

1
Out of stock

3

. DRUM, SHEAVE

857-15714-00-00

1
Out of stock

4

SPRING, STARTER

8F3-15713-01-00

1

$41.31

In stock

5

. PAWL, DRIVE

616-15741-01-00

1
Out of stock

6

WASHER, FLAT

(802-15726-00-00)

1
Out of stock

7

SPRING,DRIVE PLATE

626-15715-01-00

—

$2.42

In stock

8

. SPRING, RETURN

811-15784-00-00

1
Out of stock

9

. SPRING, RETURN

811-15734-00-00

1
Out of stock

10

. PLATE, DRIVE

811-15716-00-00

1
Out of stock

11

WASHER,FLAT

807-15726-01-00

—

$3.54

In stock

12

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

13

NUT, HEXAGON SMALL

95317-05700-00

1

$6.18

In stock

14

WIRE, STARTER (BRAIDED)

89A-15751-00-00

1

$27.50

In stock

15

. HANDLE, STARTER

807-15755-00-00

1
Out of stock

16

GUIDE, ROPE

(8A1-15758-00-00)

1
Out of stock

17

PULLEY, STARTER

8A1-15723-00-00

1
Out of stock

18

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

19

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

20

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

21

WASHER, SPRING

92907-06100-00

—
Out of stock

22

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

23

DUCT, AIR

8A5-15471-00-00

1
Out of stock

24

BOLT, HEXAGON

97017-06012-00

—

$2.62

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

27

SEAL, AIR DUCT

(8A5-15472-00-00)

1
Out of stock
