1972 Yamaha EW643 Transmission Diagram

← All diagrams

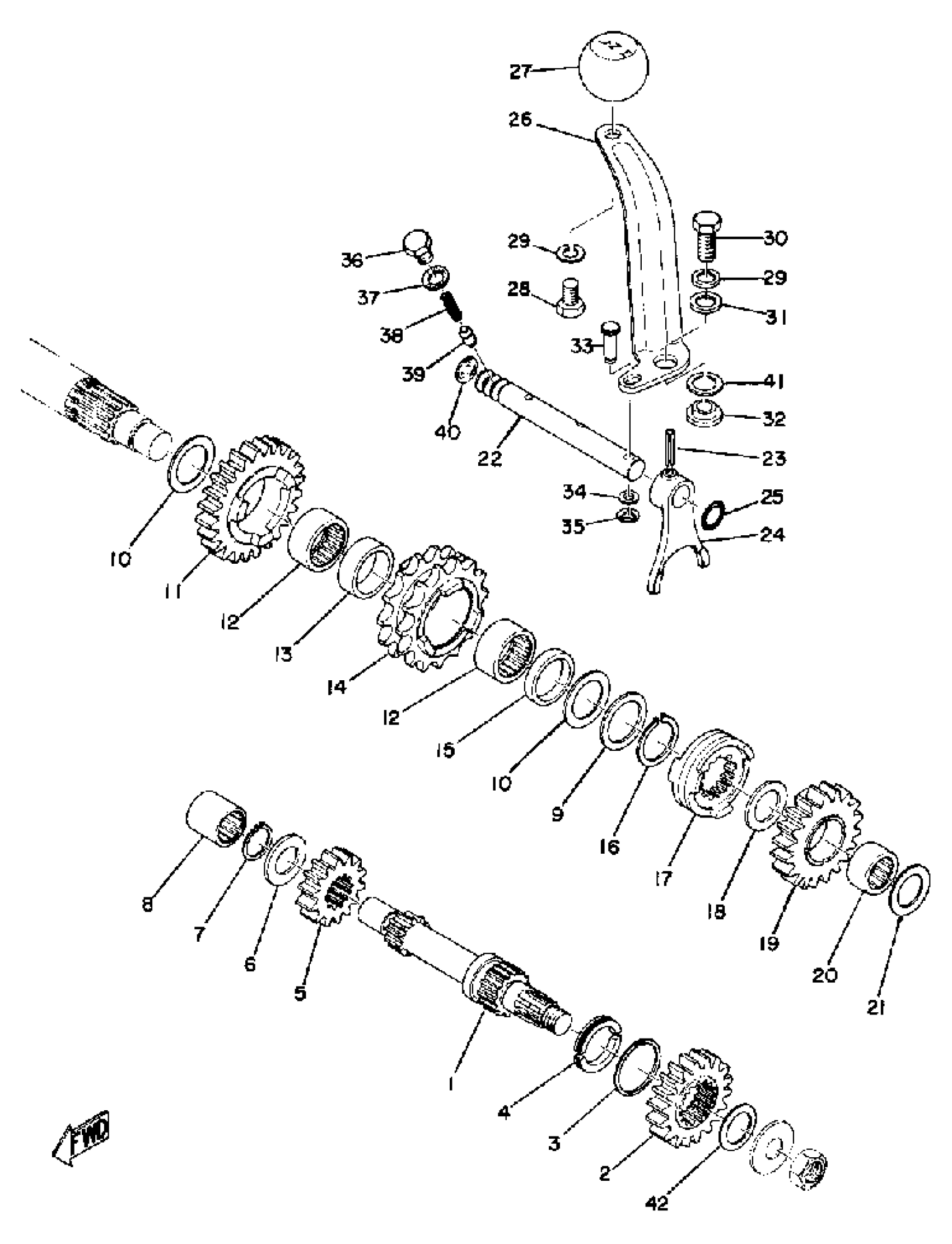

Find the part on the Transmission diagram for your 1972 Yamaha EW643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha EW643 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, DRIVE

(826-17421-00-00)

1
Out of stock

2

GEAR, 2ND WHEEL

826-17221-00-00

1
Out of stock

3

CIRCLIP(4A6)

99009-30400-00

1

$6.55

In stock

4

COLLAR

806-17645-00-00

1
Out of stock

5

GEAR, 3RD WHEEL

826-17231-00-00

1
Out of stock

6

SHIM

826-17219-00-00

1
Out of stock

7

CIRCLIP(1AR)

99009-15400-00

1

$5.10

In stock

8

BEARING, CYLINDER.#20

93320-31501-00

1
Out of stock

9

SHIM 3

826-17238-00-00

1
Out of stock

10

SHIM

826-17229-00-00

1
Out of stock

11

GEAR, 3RD PINION

826-17131-00-00

1
Out of stock

12

BEARING, CYLINDER.#15

93315-22414-00

1
Out of stock

13

COLLAR

90387-24183-00

1
Out of stock

14

SPRKT, CHAIN DR 14T

826-17682-40-00

1
Out of stock

14

SPRKT, CHAIN DR 15T

(826-17682-50-00)

1
Out of stock

15

COLLAR

(90387-24182-00)

1
Out of stock

16

CIRCLIP

99009-24400-00

—

$7.49

In stock

17

DOG, TRANS SHIFT

826-17492-00-00

1
Out of stock

18

WASHER, PLATE(39K)

90201-191J4-00

—
Out of stock

19

GEAR, 2ND PINION

826-17121-00-00

1
Out of stock

20

BRG,CYL-CAL ROLLER 12G KY

93315-21813-00

—

$31.48

In stock

21

SHIM 1

136-17417-00-10

1
Out of stock

22

BAR, SHIF FRK GDE 1

(826-18531-00-00)

1
Out of stock

23

PIN, SPRING

91690-40020-00

1

$3.30

In stock

24

FORK, SHIFT 1

826-18511-01-00

1
Out of stock

25

O-RING (137)

93210-12014-00

—

$5.92

In stock

26

LEVER

(834-18198-00-00)

1
Out of stock

27

KNOB, CHANGE

(826-18199-00-00)

1
Out of stock

28

BOLT(62E)

97013-08012-00

—

$2.48

In stock

29

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

30

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

31

SPACER

(90560-08065-00)

1
Out of stock

32

COLLAR

90387-08079-00

—
Out of stock

33

PIN, SPEC''L SHAPE

(90249-06019-00)

1
Out of stock

34

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

35

CIRCLIP(22K)

99080-05600-00

—

$6.17

In stock

36

BOLT(8X2)

90101-08344-00

—

$1.12

In stock

37

GASKET

90430-08023-00

1
Out of stock

38

—

$2.37

In stock

39

PIN, SPEC''L SHAPE

90249-07004-00

1
Out of stock

40

PLUG, EXPANSION

(90330-16002-00)

1
Out of stock

41

WASHER, WAVE (17W)

90206-12074-00

—

$6.98

In stock

42

SHIM 1

150-17417-00-02

1
Out of stock

42

SHIM 1

(150-17417-00-03)

1
Out of stock
