1972 Yamaha EW643 Pump Gear Unit Diagram

← All diagrams

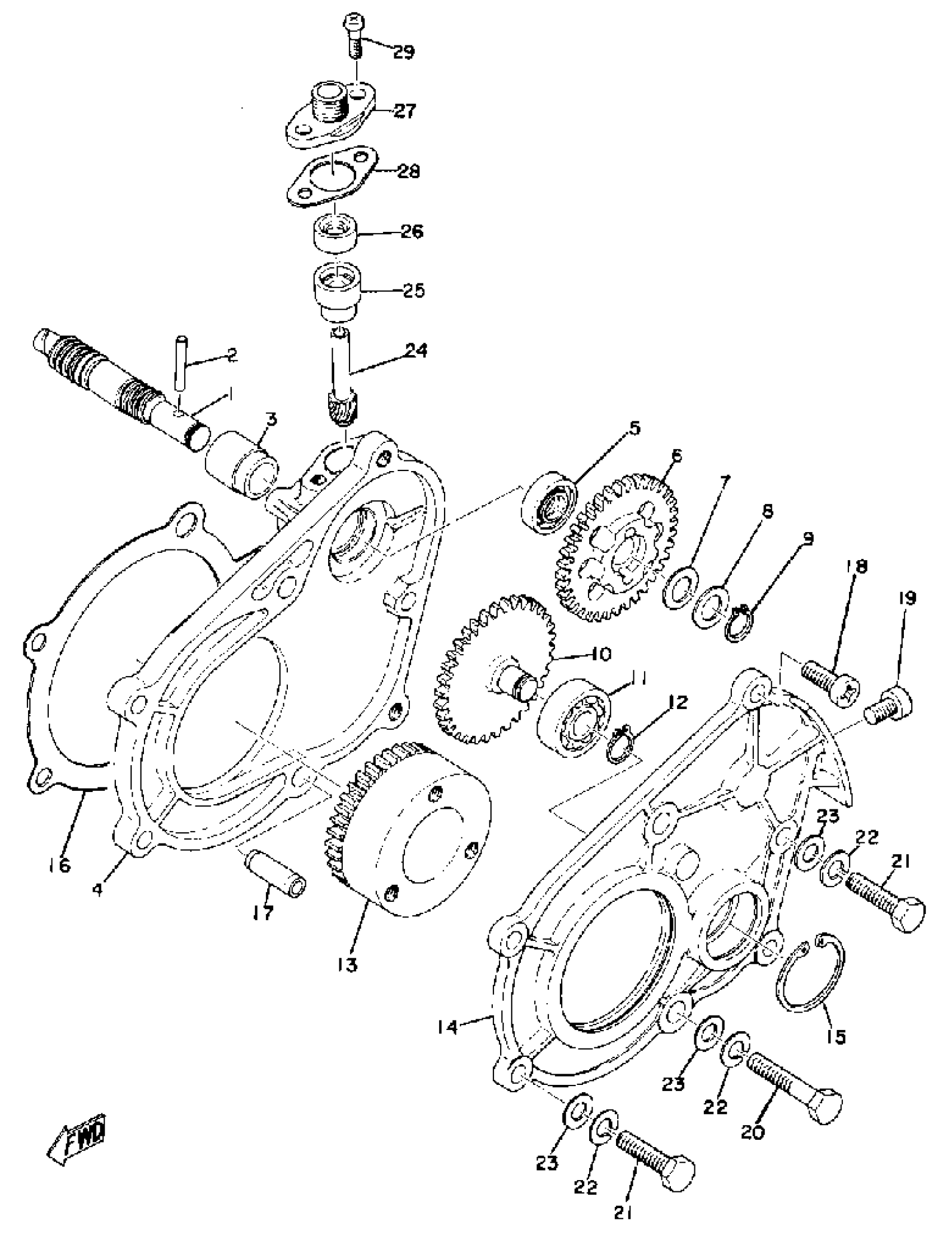

Find the part on the Pump Gear Unit diagram for your 1972 Yamaha EW643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha EW643 Pump Gear Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, WORM

826-13175-00-00

1
Out of stock

2

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

3

METAL, WORM SHAFT OUTER

821-13176-00-00

1

$6.33

In stock

4

COVER, OIL PUMP

(834-15416-00-00)

1
Out of stock

5

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

6

GEAR, DRIVE

(834-13188-00-00)

1
Out of stock

7

WASHER, WAVE (137)

90206-11016-00

—

$12.72

In stock

8

PLATE, CAM THRUST

137-13148-00-00

—

$3.28

In stock

9

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

10

GEAR, IDLE

(821-13179-00-00)

1
Out of stock

11

—

$29.35

In stock

12

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

13

GEAR, PUMP DRIVE

(834-13178-00-00)

1
Out of stock

14

COVER, OIL PUMP R

(834-15426-00-00)

1
Out of stock

15

CIRCLIP, R-TYPE (R-26)

93420-26024-00

1
Out of stock

16

GASKET, O/PMP CVR 1

(834-15456-00-00)

1
Out of stock

17

PIN, DOWEL

91810-18022-00

1
Out of stock

18

SCREW, PAN

98507-06014-00

—

$6.18

In stock

19

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

20

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

21

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

24

GEAR, DRIVEN (10T)

813-17841-00-00

1
Out of stock

25

BUSH, DRIVEN GEAR OUTER

821-17843-00-00

1
Out of stock

26

OIL SEAL (6X12X4-821)

93104-06033-00

—

$6.49

In stock

27

CAP, HOUSING

821-17819-00-00

1
Out of stock

28

GASKET

821-17818-02-00

—

$5.66

In stock

29

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock
