1972 Yamaha EW643 Track - Suspension Wheel Diagram

← All diagrams

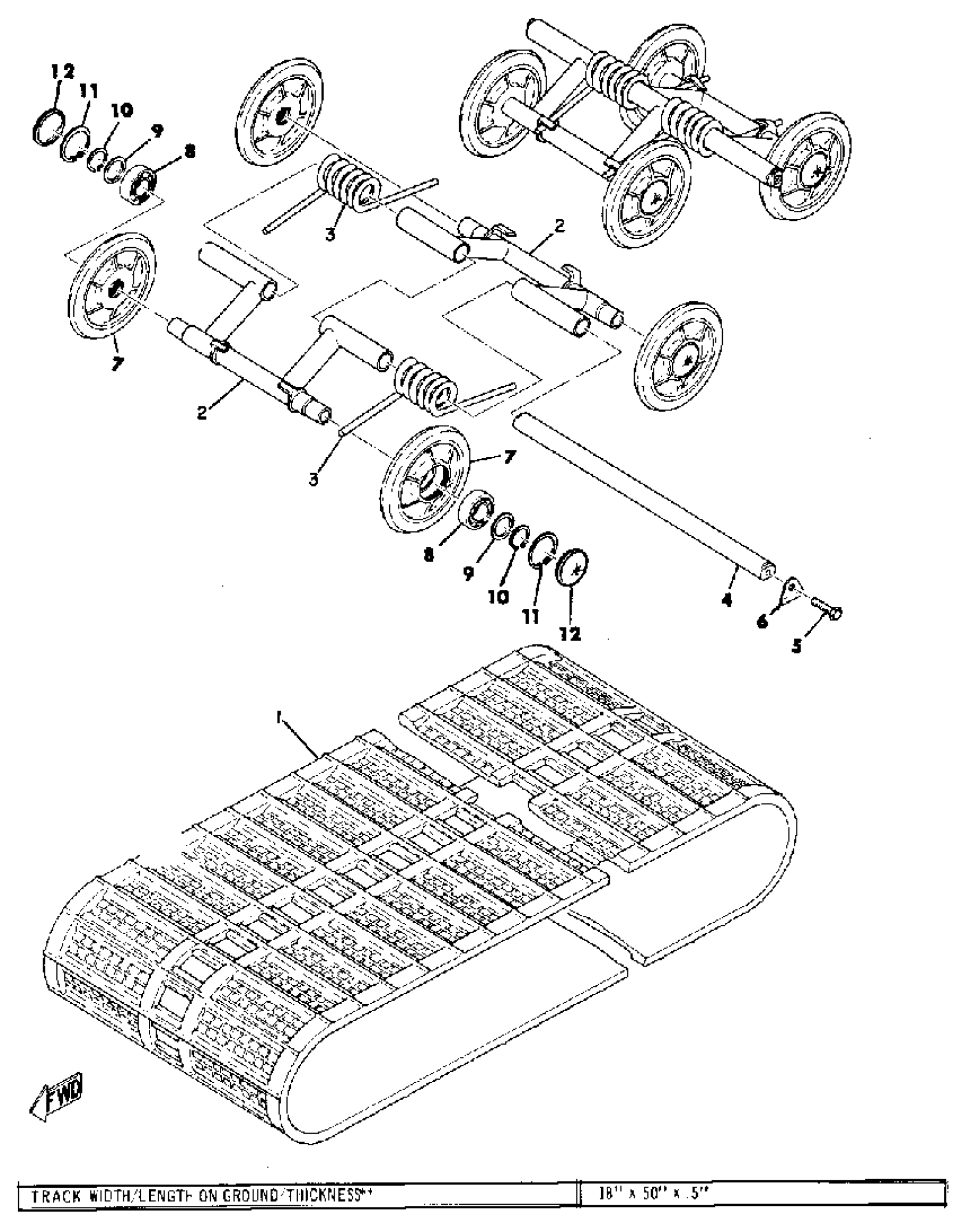

Find the part on the Track - Suspension Wheel diagram for your 1972 Yamaha EW643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha EW643 Track - Suspension Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TRACK ASSEMBLY (847-47110-00)

863-47110-00-00

1
Out of stock

2

ARM, PIVOT 1 (807-47331-00)

807-47331-01-00

1
Out of stock

3

SPRING, TORSION

90508-65089-00

1
Out of stock

4

SHAFT, PIVOT

807-47337-00-00

1
Out of stock

5

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

6

WASHER, LOCK

(806-47347-00-00)

1
Out of stock

7

SUSPENSION WHEEL COMP

885-47320-01-00

1

$67.65

In stock

8

BEARING(8AB)

93306-00444-00

1

$35.70

In stock

9

WASHER PLATE 820473590000

90201-20272-00

1

$5.88

In stock

10

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

11

CIRCLIP(5U8)

99009-42500-00

1

$6.77

In stock

12

CAP, WHEEL

818-47317-01-00

1
Out of stock
