1972 Yamaha EW643 Rear Axle Diagram

← All diagrams

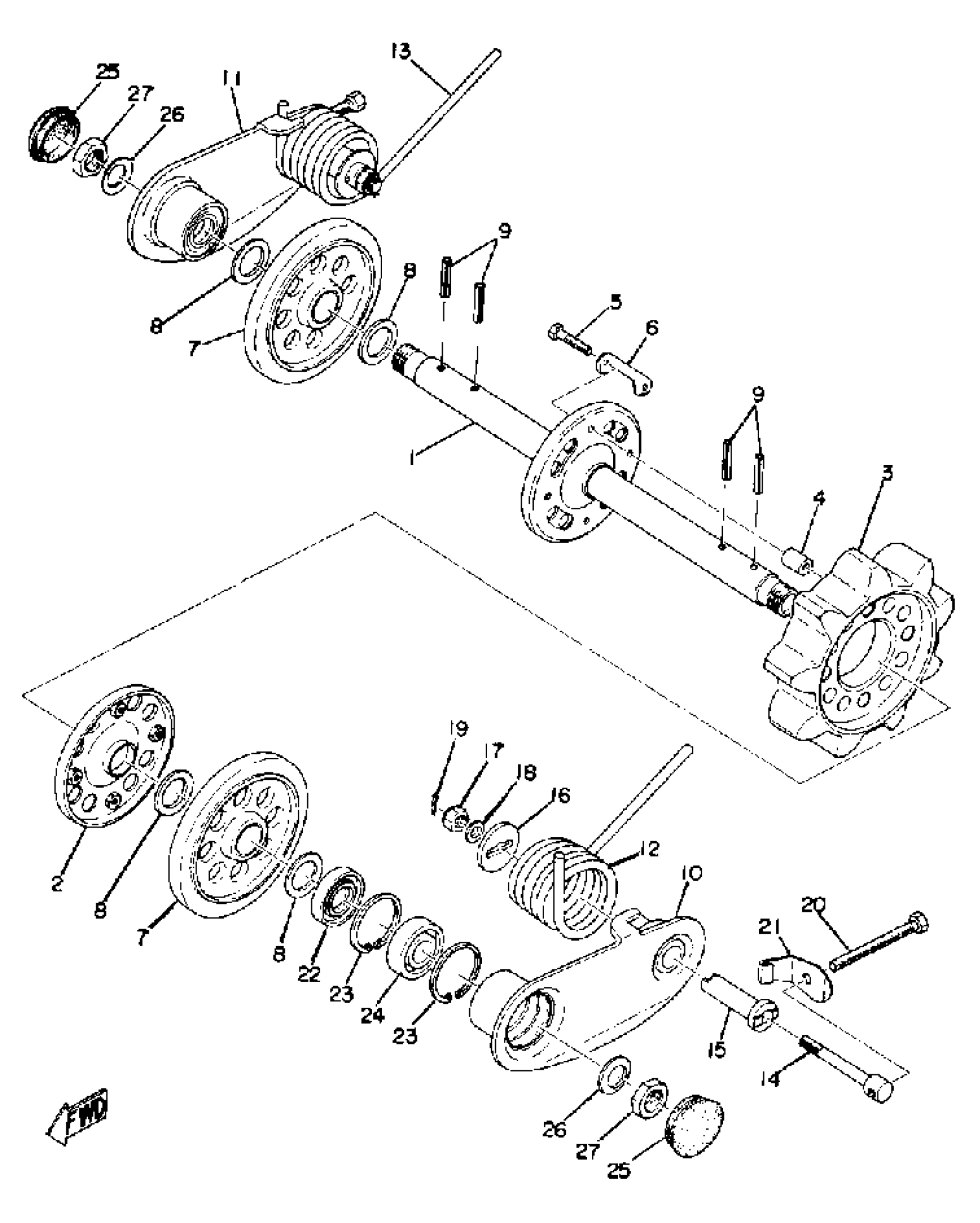

Find the part on the Rear Axle diagram for your 1972 Yamaha EW643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha EW643 Rear Axle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR AXLE

826-47520-00-00

1
Out of stock

2

RIM, SPROCKET WHL 2

(810-47522-00-00)

1
Out of stock

3

WHEEL, SPROCKET 2

810-47532-00-00

1
Out of stock

4

COLLAR

(90387-06021-00)

1
Out of stock

5

BOLT(3RV)

97014-06035-00

1

$1.54

In stock

6

WASHER, LOCK

90215-06100-00

1
Out of stock

7

GUIDE WHEEL

810-47530-00-00

1
Out of stock

8

WASHER, PLATE

90201-25499-00

1
Out of stock

9

PIN, SPRING

91609-60036-00

1
Out of stock

10

ARM, REAR PIVOT 1

(810-47361-00-00)

1
Out of stock

11

ARM, REAR PIVOT 2

810-47362-00-00

1
Out of stock

12

SPRING, TORSION

(90508-75086-00)

1
Out of stock

13

SPRING, TORSION

90508-75116-00

1
Out of stock

14

SCREW, SPEC''L SHAPE

90149-08022-00

1
Out of stock

15

COLLAR

810-47369-00-00

1
Out of stock

16

WASHER, SPEC''L SHAP

90209-08067-00

1
Out of stock

17

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

18

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

19

PIN, COTTER

91490-30030-00

—

$7.15

In stock

20

BOLT, DOME HEAD (841-47373-00)

90106-08050-00

1
Out of stock

21

WASHER, LOCK

90215-08069-00

1
Out of stock

22

OIL SEAL (25X44X6-810)

93102-25081-00

—
Out of stock

23

CIRCLIP, R-TYPE

93420-44029-00

1
Out of stock

24

BEARING

93306-00412-00

1
Out of stock

25

CAP (NOT AVAIL)

810-47552-00-00

1
Out of stock

26

WASHER 810475810000

90208-22001-00

—

$7.35

In stock

27

NUT (821-47579-00)

90170-22094-00

—

$5.34

In stock
