1972 Yamaha EW643 Brake Diagram

← All diagrams

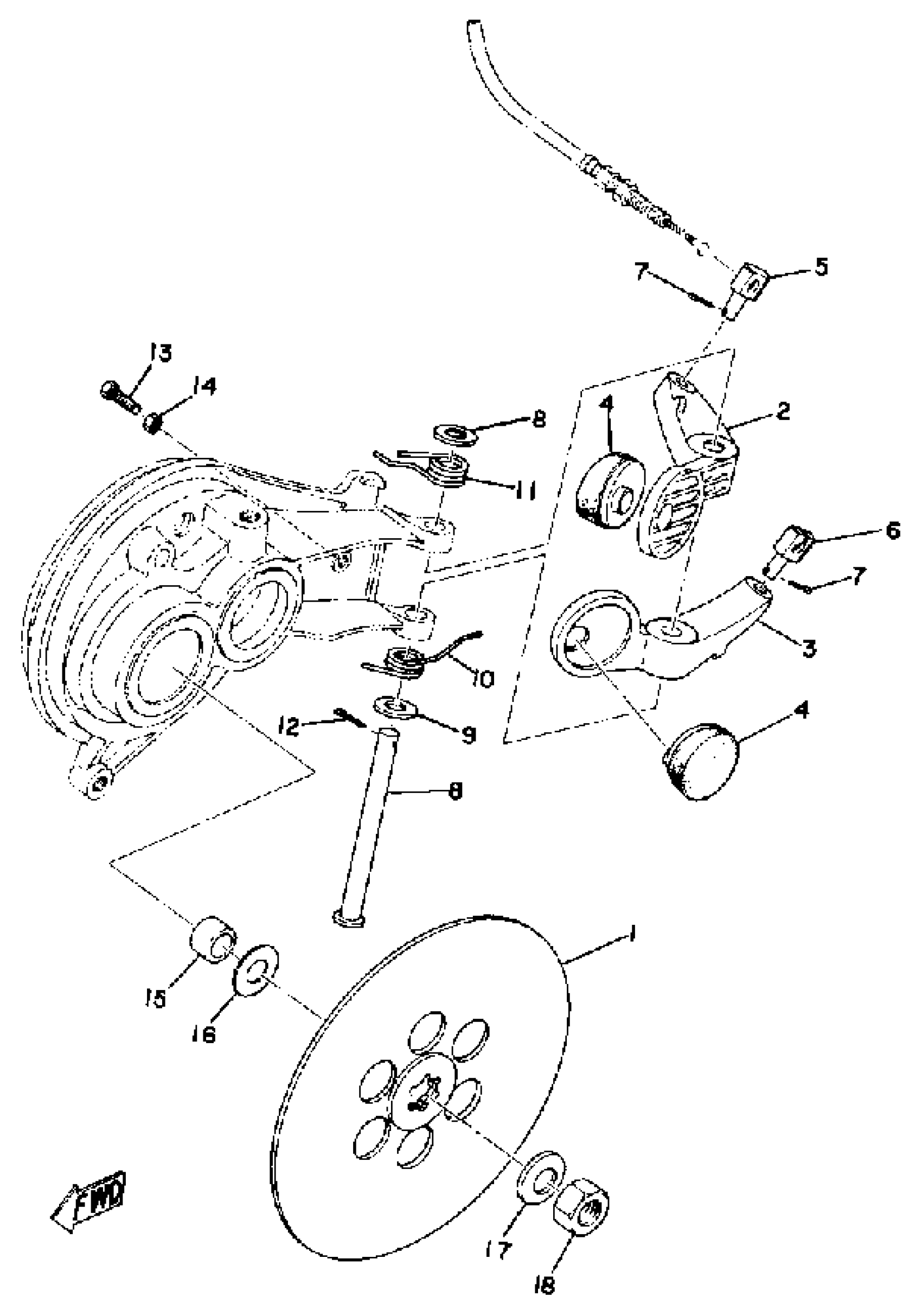

Find the part on the Brake diagram for your 1972 Yamaha EW643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha EW643 Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISC, BRAKE

(826-25711-00-00)

1
Out of stock

2

BODY, CALIPER 1

(826-25731-00-00)

1
Out of stock

3

BODY, CALIPER 2

(826-25741-00-00)

1
Out of stock

4

PAD, CALIPER

(826-25732-09-00)

1
Out of stock

5

PIN (810)

90249-06012-00

—

$9.91

In stock

6

PIN

90249-06009-00

1
Out of stock

7

PIN, COTTER

91490-20025-00

1

$1.31

In stock

8

PIN, CLEVIS

(90240-08022-00)

1
Out of stock

9

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

10

SPRING, TORSION

(90508-26034-00)

1
Out of stock

11

SPRING, TORSION

90508-26033-00

1
Out of stock

12

PIN, COTTER

91490-20025-00

1

$1.31

In stock

13

BOLT HEXAGON

97001-05018-00

1
Out of stock

14

NUT, HEXAGON SMALL

95317-05700-00

1

$6.18

In stock

15

COLLAR

90387-17134-00

1
Out of stock

16

SHIM 1

150-17417-00-02

1
Out of stock

16

SHIM 1

(150-17417-00-03)

1
Out of stock

17

WASHER, CONICAL SPR

90208-12007-00

1
Out of stock

18

NUT (821-23834-00)

90170-12054-00

—
Out of stock
