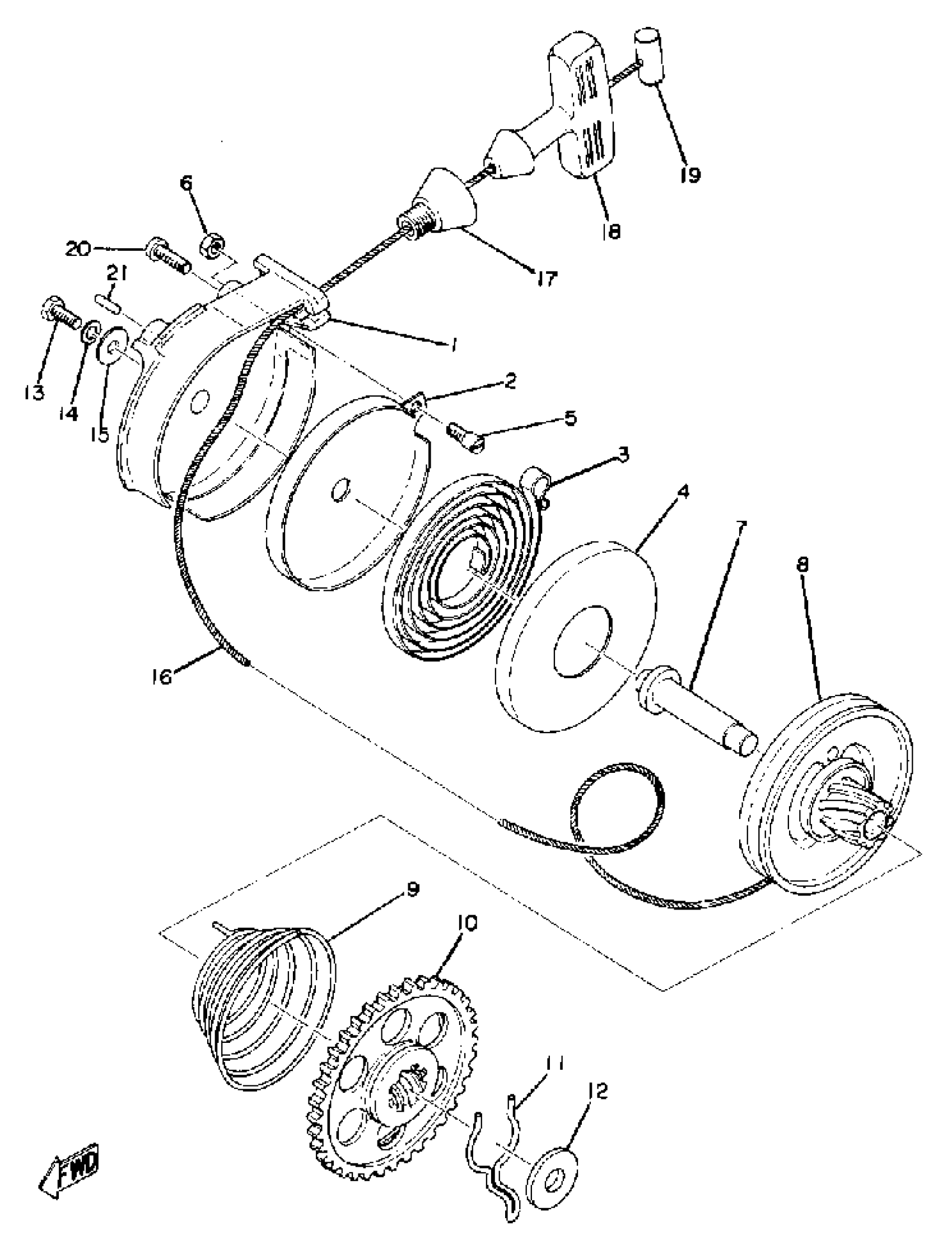

Find the part on the Starter diagram for your 1972 Yamaha EW643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha EW643 Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER ASSEMBLY

(834-15710-00-00)

1
Out of stock

1

CASE, STARTER

(834-15711-00-00)

1
Out of stock

2

CASE, SPRING R

(834-15769-00-00)

1
Out of stock

3

SPRING, SPIRAL

(90510-08003-00)

1
Out of stock

4

CASE, SPRING L

(834-15766-00-00)

1
Out of stock

5

. PIN, SPEC''L SHAPE (834-15727-00)

90249-06043-00

1
Out of stock

6

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

7

. SHAFT, STARTER

834-15717-00-00

1
Out of stock

8

DRUM, SHEAVE

(834-15714-00-00)

1
Out of stock

9

SPRING, CONICAL

(90502-16020-00)

1
Out of stock

10

GEAR, STARTER

(834-15786-00-00)

1
Out of stock

11

CLIP

(90468-35041-00)

1
Out of stock

12

. WASHER, PLATE (834-15726-00)

90201-12311-00

1
Out of stock

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

WASHER, PLATE

90201-06M02-00

1

$2.23

In stock

16

ROPE, STARTER

(834-15751-00-00)

1
Out of stock

17

GUIDE, ROPE

(834-15758-00-00)

1
Out of stock

18

. HANDLE, STARTER

807-15755-00-00

1
Out of stock

19

CONNECTOR 1

(834-15756-00-00)

1
Out of stock

20

SCREW, PAN

98517-06020-00

—
Out of stock

21

PIN,DOWEL (137)

93604-14012-00

—

$1.88

In stock
