1972 Yamaha EW643 Flywheel Magneto Diagram

← All diagrams

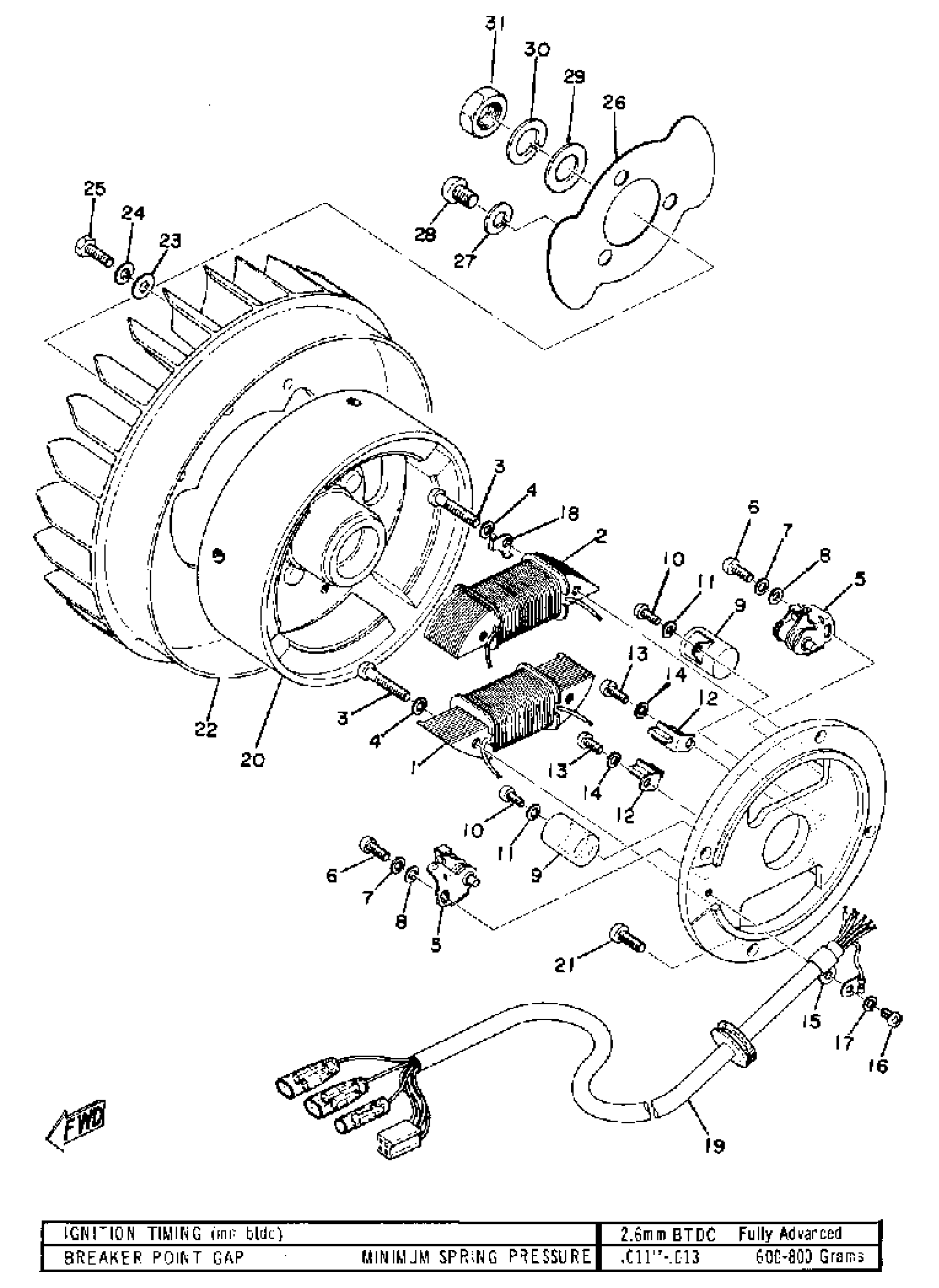

Find the part on the Flywheel Magneto diagram for your 1972 Yamaha EW643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha EW643 Flywheel Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FLYWHL MAGNETO ASSEMBLY

(834-81300-20-00)

1
Out of stock

1

COIL, SOURCE

(834-81312-20-00)

1
Out of stock

2

COIL, LIGHTING 1

(812-81313-20-00)

1
Out of stock

3

. SCREW, PAN HEAD

802-81345-20-00

1
Out of stock

4

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

5

. CONTACT BRKR ASSEMBLY

806-81321-20-00

1

$27.71

In stock

6

SCREW, PAN HEAD

110-81346-21-00

1

$4.32

In stock

7

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

8

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

9

. CONDENSER 1

802-81325-90-00

1
Out of stock

10

SCREW, PAN HEAD

110-81346-21-00

1

$4.32

In stock

11

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

12

. LUBRICATOR

116-81331-20-00

1
Out of stock

13

SCREW, PAN HEAD

110-81346-21-00

1

$4.32

In stock

14

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

15

CLAMP, LEAD

104-81328-20-00

—

$6.31

In stock

16

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

17

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

18

PLATE, TIMING

(812-81332-20-00)

1
Out of stock

19

LEAD WIRE ASSEMBLY

(834-81315-20-00)

1
Out of stock

20

ROTOR ASSEMBLY

(834-81350-20-00)

1
Out of stock

21

SCREW, PAN

98507-06014-00

—

$6.18

In stock

22

FAN

(834-12611-00-00)

1
Out of stock

23

WASHER, PLATE

90201-06M08-00

1
Out of stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

BOLT

(90101-06006-00)

1
Out of stock

26

COVER, HOLE

(812-81362-00-00)

1
Out of stock

27

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

28

SCREW, PAN

98507-08010-00

—
Out of stock

29

WASHER

(92901-16247-00)

1
Out of stock

30

WASHER(JN5)

92907-16100-00

—

$12.08

In stock

31

NUT

90170-16425-00

—
Out of stock
