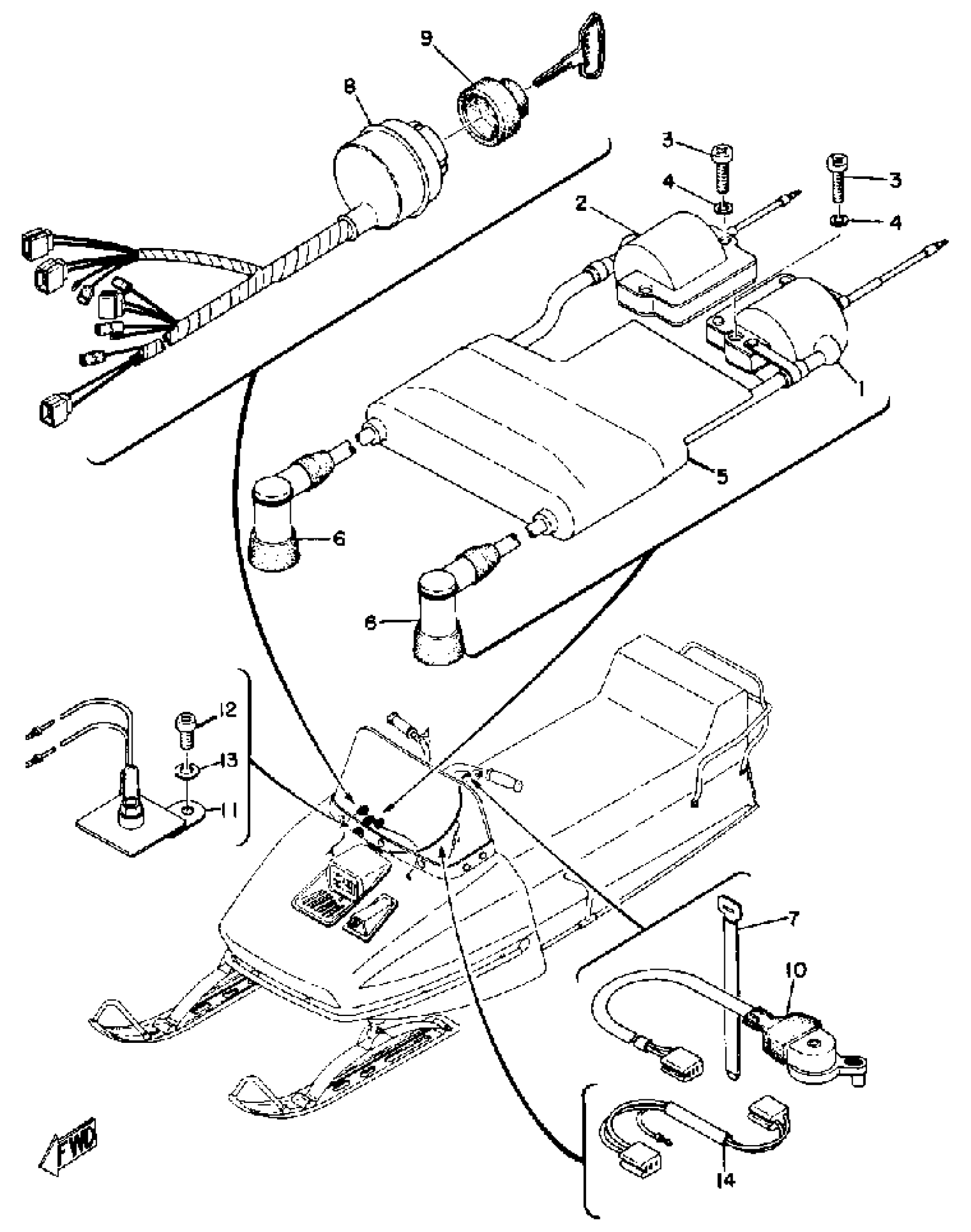

Find the part on the Electrical 2 diagram for your 1972 Yamaha EW643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha EW643 Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSEMBLY

(810-82310-40-00)

1
Out of stock

2

IGNITION COIL ASSEMBLY

(834-82320-40-00)

1
Out of stock

3

SCREW, PAN

98517-06020-00

1
Out of stock

4

WASHER, SPRING

92907-06100-00

1
Out of stock

5

COVER, IGNITN COIL

(810-82314-00-00)

1
Out of stock

6

PLUG CAP ASSY

56J-82370-00-00

1

$56.63

In stock

7

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

8

MAIN SWITCH ASSEMBLY

(821-82508-20-00)

1
Out of stock

9

COLLAR, MAIN SWITCH

806-82516-00-00

1
Out of stock

10

STOP SWITCH ASSEMBLY

822-82530-00-00

1
Out of stock

11

RECTIFIER ASSEMBLY

(812-81970-41-00)

1
Out of stock

12

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

WIRE, LEAD

(827-82531-00-00)

1
Out of stock
