1972 Yamaha EW643 Electrical 1 Diagram

← All diagrams

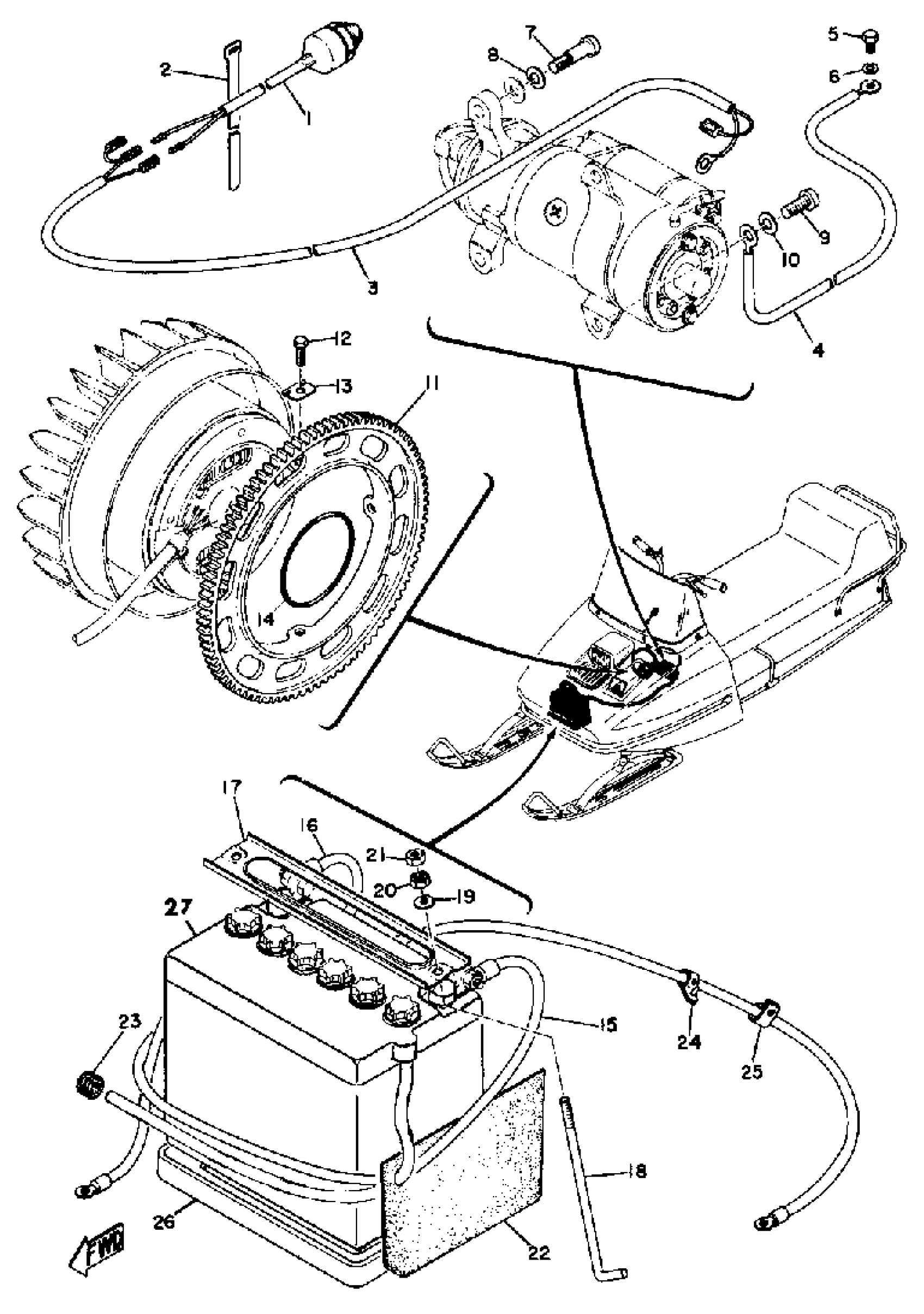

Find the part on the Electrical 1 diagram for your 1972 Yamaha EW643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha EW643 Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER SWITCH ASSEMBLY

(811-83970-00-00)

1
Out of stock

2

BAND, SWITCH CORD

437-83936-11-00

1

$3.20

In stock

3

WIRE, LEAD 2

(834-82127-00-00)

1
Out of stock

4

WIRE, LEAD

(819-82117-00-00)

1
Out of stock

5

BOLT(3JP)

97017-06010-00

1

$2.62

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

SCREW, SPEC''L SHAPE

90149-08056-00

1
Out of stock

8

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

9

SCREW PAN HEAD

98580-08020-00

—

$3.14

In stock

10

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

11

GEAR, RING

(834-81891-00-00)

1
Out of stock

12

BOLT, DOME HEAD

(90106-08004-00)

1
Out of stock

13

WASHER, LOCK

(90215-08071-00)

1
Out of stock

14

O-RING (1.9-68.6)

93210-69058-00

1
Out of stock

15

WIRE, PLUS LEAD

824-82115-00-00

1
Out of stock

16

WIRE, MINUS LEAD

822-82116-00-00

1
Out of stock

17

PLATE, BATT FITTING

(822-82136-00-00)

1
Out of stock

18

SCREW, SPEC''L SHAPE

(90149-06024-00)

1
Out of stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

21

NUT(650)

95380-06700-00

—

$6.17

In stock

22

SEAL, BATTERY

822-82118-00-00

1
Out of stock

23

GROMMET 152845180000

90480-12013-00

—
Out of stock

24

BAND

(822-82591-00-00)

1
Out of stock

25

CLAMP

90465-06013-00

1
Out of stock

26

SEAT, BATTERY

807-82122-00-00

1
Out of stock

27

SMB BATTERY B68-12

(807-82110-80-00)

1
Out of stock
