1979 Yamaha ET340EC Speedometer Diagram

← All diagrams

Find the part on the Speedometer diagram for your 1979 Yamaha ET340EC, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

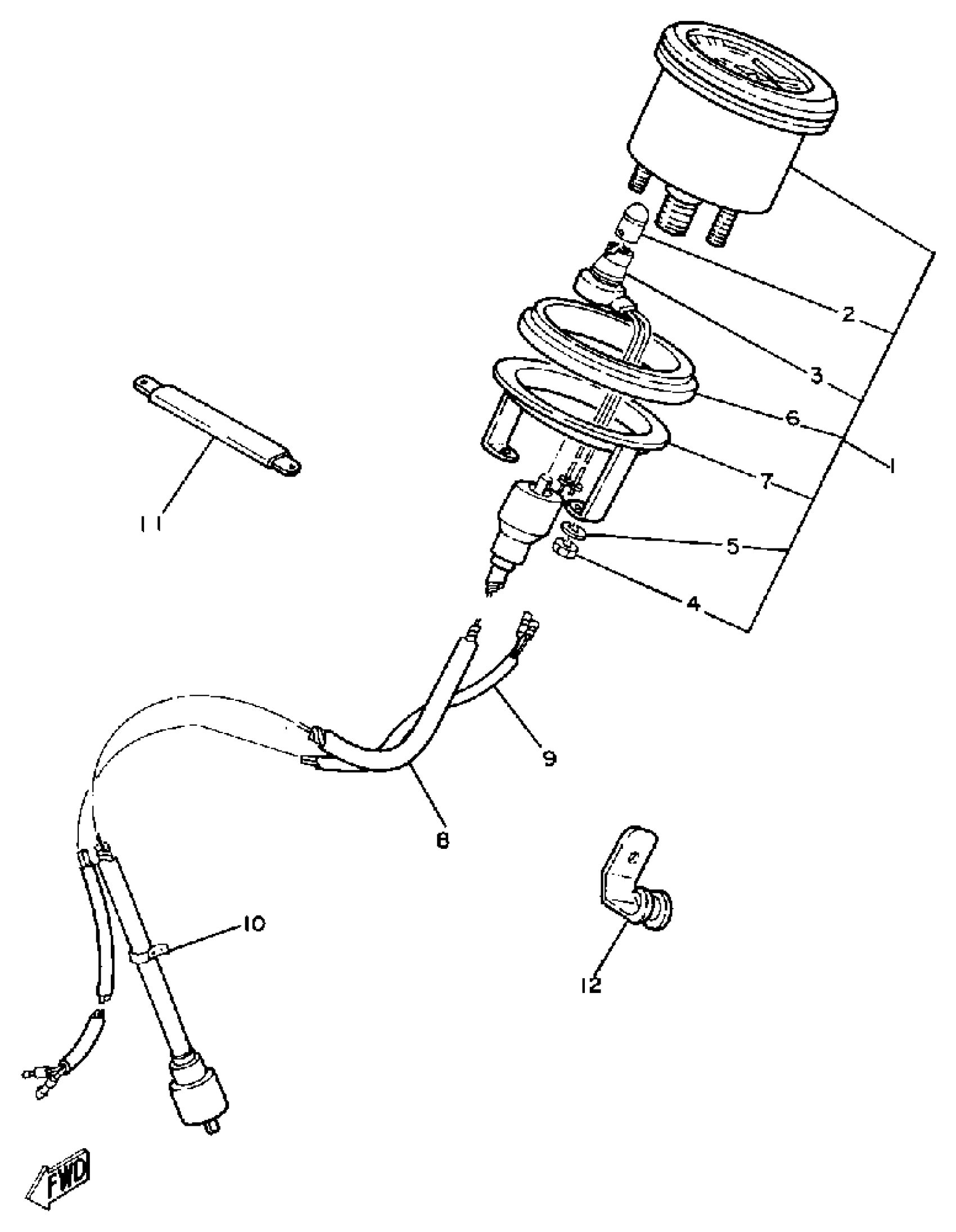

1979 Yamaha ET340EC Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

8G6-83510-21-00

1
Out of stock

2

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

3

SOCKET, METER

(861-83536-40-00)

1
Out of stock

4

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

DAMPER, METER

8G6-83523-00-00

—

$8.91

In stock

7

. BRACKET, METER

8G6-83519-00-00

1
Out of stock

8

SPEEDOMETER CABLE

8F3-83550-01-00

1
Out of stock

9

WIRE, LEAD

8H4-83553-00-00

1
Out of stock

10

BAND, SWITCH CORD

25G-83936-01-00

1

$4.12

In stock

11

CLAMP

90465-05128-00

1
Out of stock

12

CLAMP

90465-06013-00

1
Out of stock
