1979 Yamaha ET340EC Electric Starter 2 Diagram

← All diagrams

Find the part on the Electric Starter 2 diagram for your 1979 Yamaha ET340EC, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

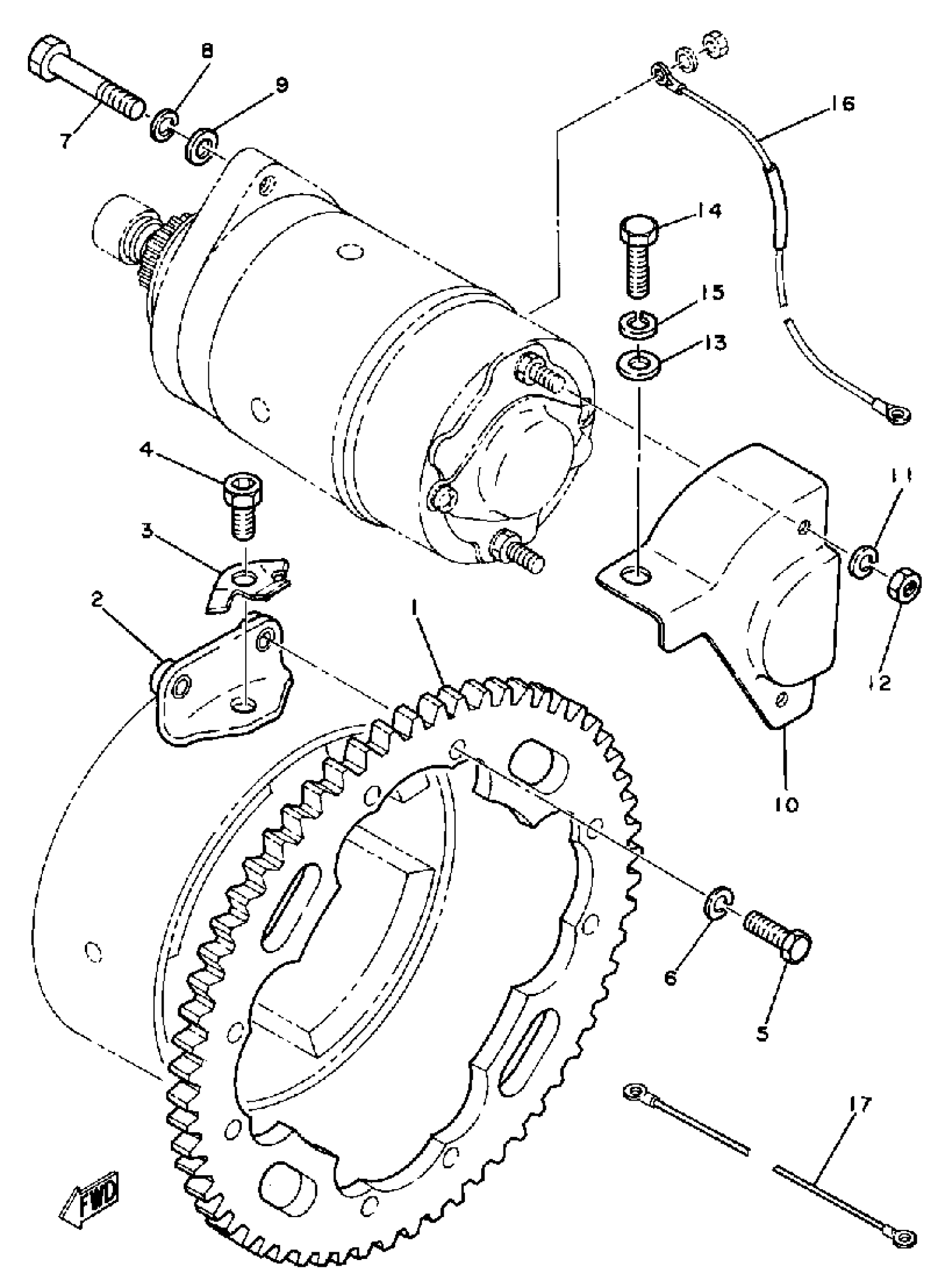

1979 Yamaha ET340EC Electric Starter 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, RING

8J4-81891-01-00

1
Out of stock

2

STAY, RING GEAR

8J4-81895-01-00

1
Out of stock

3

WASHER, LOCK

90215-08148-00

1
Out of stock

4

BOLT, HEX SKT HEADSOCKET HEAD

90110-08028-00

1
Out of stock

5

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

BOLT

97014-08040-00

1

$5.26

In stock

8

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

9

WASHER

(92921-08600-00)

1
Out of stock

10

BRACKET, STRTG MTR

8J4-81822-00-00

1
Out of stock

11

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

12

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

13

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

14

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

16

WIRE, LEAD

8J4-82117-01-00

1
Out of stock

17

WIRE, MINUS LEAD

8J4-82116-01-00

1
Out of stock
