1979 Yamaha ET340EC Electric Starter 1 Diagram

← All diagrams

Find the part on the Electric Starter 1 diagram for your 1979 Yamaha ET340EC, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

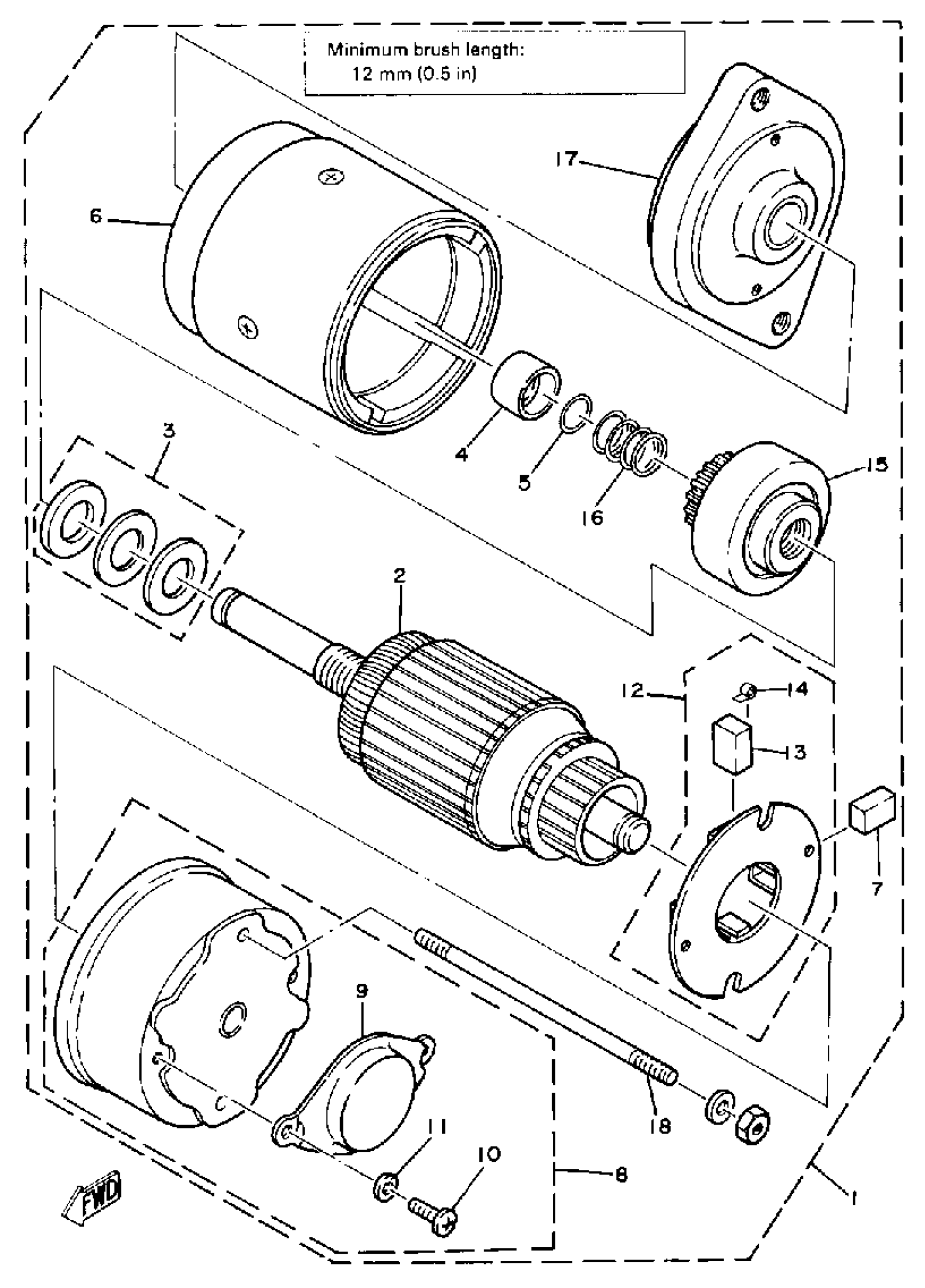

1979 Yamaha ET340EC Electric Starter 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTING MOTOR ASY

8J4-81800-09-00

1
Out of stock

2

. ARMATURE ASSEMBLY

8J4-81850-10-00

1
Out of stock

3

. WASHER KIT

676-81809-10-00

1

$19.22

In stock

4

STOPPER, PINION

(8J9-81859-10-00)

1
Out of stock

5

. RING

8J4-81834-10-00

1
Out of stock

6

STATOR ASSEMBLY

(8J4-81810-11-00)

1
Out of stock

7

. BRUSH 1

663-81811-10-00

1
Out of stock

8

REAR BRACKET ASSEMBLY

(8G3-81820-10-00)

1
Out of stock

9

.. COVER

8J4-81842-10-00

1
Out of stock

10

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

11

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

12

BRUSH HOLDER ASSEMBLY

(8G3-81840-10-00)

1
Out of stock

13

.. BRUSH 2

663-81812-10-00

1
Out of stock

14

SPRING, BRUSH

(8G3-81813-10-00)

1
Out of stock

15

CLUTCH, OVER RUN

(8J4-81832-10-00)

1
Out of stock

16

SPRING, LEVER

(8J4-81836-10-00)

1
Out of stock

17

. FRONT BRACKET ASSEMBLY

8J4-81830-10-00

1
Out of stock

18

BOLT

(8J4-81826-10-00)

1
Out of stock
