1979 Yamaha ET340EC Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 1979 Yamaha ET340EC, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

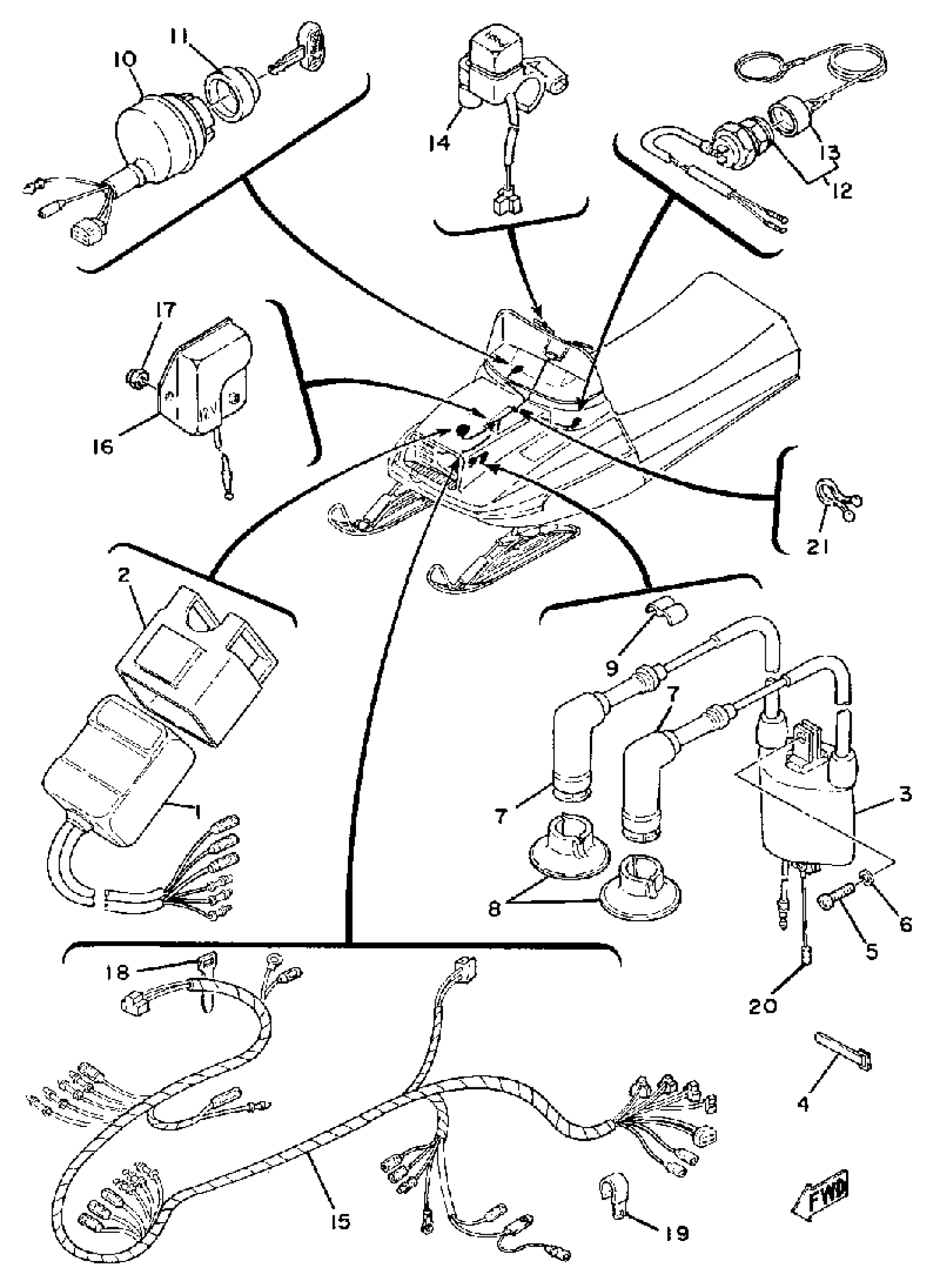

1979 Yamaha ET340EC Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

8H4-85540-20-00

1
Out of stock

2

BAND

2A7-85546-00-00

—

$20.40

In stock

3

IGNITION COIL ASY

8E7-82310-09-00

1
Out of stock

4

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

5

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

PLUG CAP ASSY

7KA-82370-00-00

1

$62.25

In stock

8

SEAL, PLUG CAP

8G8-82372-00-00

1
Out of stock

9

CLAMP, CORD

861-82361-00-00

—

$5.34

In stock

10

MAIN SWITCH ASSEMBLY

(8J4-82508-20-00)

1
Out of stock

11

COLLAR, MAIN SWITCH

806-82516-00-00

1
Out of stock

12

STOP SWITCH ASSY

8H8-82550-01-00

1

$83.12

In stock

13

CAP, SWITCH

8H8-82552-09-00

1

$42.05

In stock

14

SWITCH, HANDLE 1

8E3-83976-02-00

1

$93.69

In stock

15

WIRE HARNESS ASSEMBLY

(8J4-82590-20-00)

1
Out of stock

16

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

—

$50.55

In stock

17

NUT, NYLON

95707-06300-00

—

$3.20

In stock

18

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

19

CLAMP

90465-08028-00

1

$4.62

In stock

20

WIRE, SUB-LEAD

J42-82318-00-00

1

$4.15

In stock

21

CLAMP (3Y2)

90464-16039-00

—
Out of stock
