1979 Yamaha ET340EC Speedometer Gear Unit Diagram

← All diagrams

Find the part on the Speedometer Gear Unit diagram for your 1979 Yamaha ET340EC, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

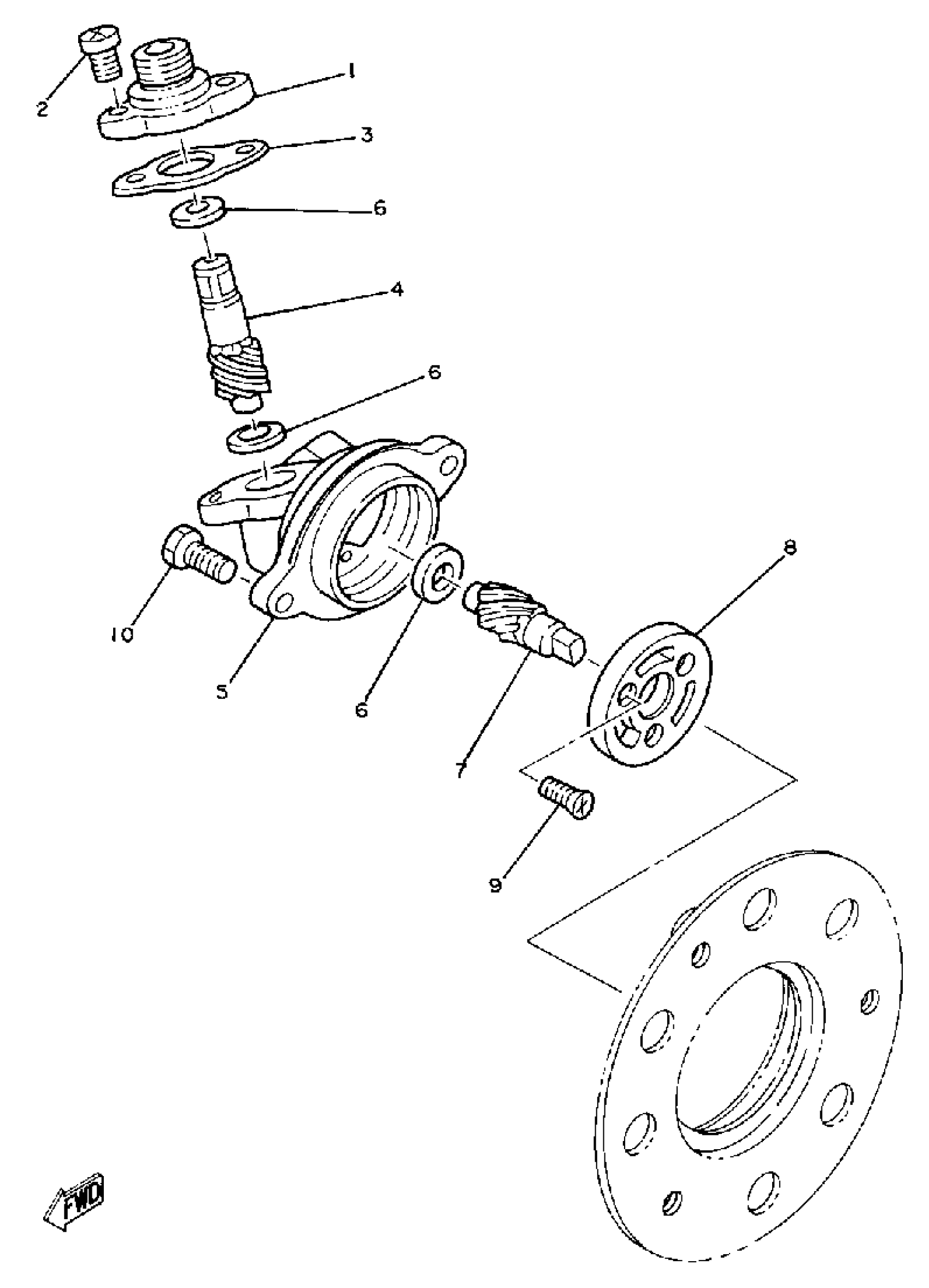

1979 Yamaha ET340EC Speedometer Gear Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, METER HOUSING

8E3-47721-10-00

—

$18.34

In stock

2

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

3

GASKET

810-47727-11-00

1
Out of stock

4

GEAR, DRIVEN (810-47741-10)

810-47741-11-00

1
Out of stock

5

HOUSING

8E6-47711-10-00

1
Out of stock

6

SHIM

810-47717-10-00

1
Out of stock

7

GEAR, DRIVE

810-47731-11-00

1
Out of stock

8

JOURNAL

853-47712-10-00

1
Out of stock

9

SCREW, FLAT

98707-04012-00

1

$1.43

In stock

10

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock
