1979 Yamaha ET250C Speedometer KIT ET250C - D - E Diagram

← All diagrams

Find the part on the Speedometer KIT ET250C - D - E diagram for your 1979 Yamaha ET250C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

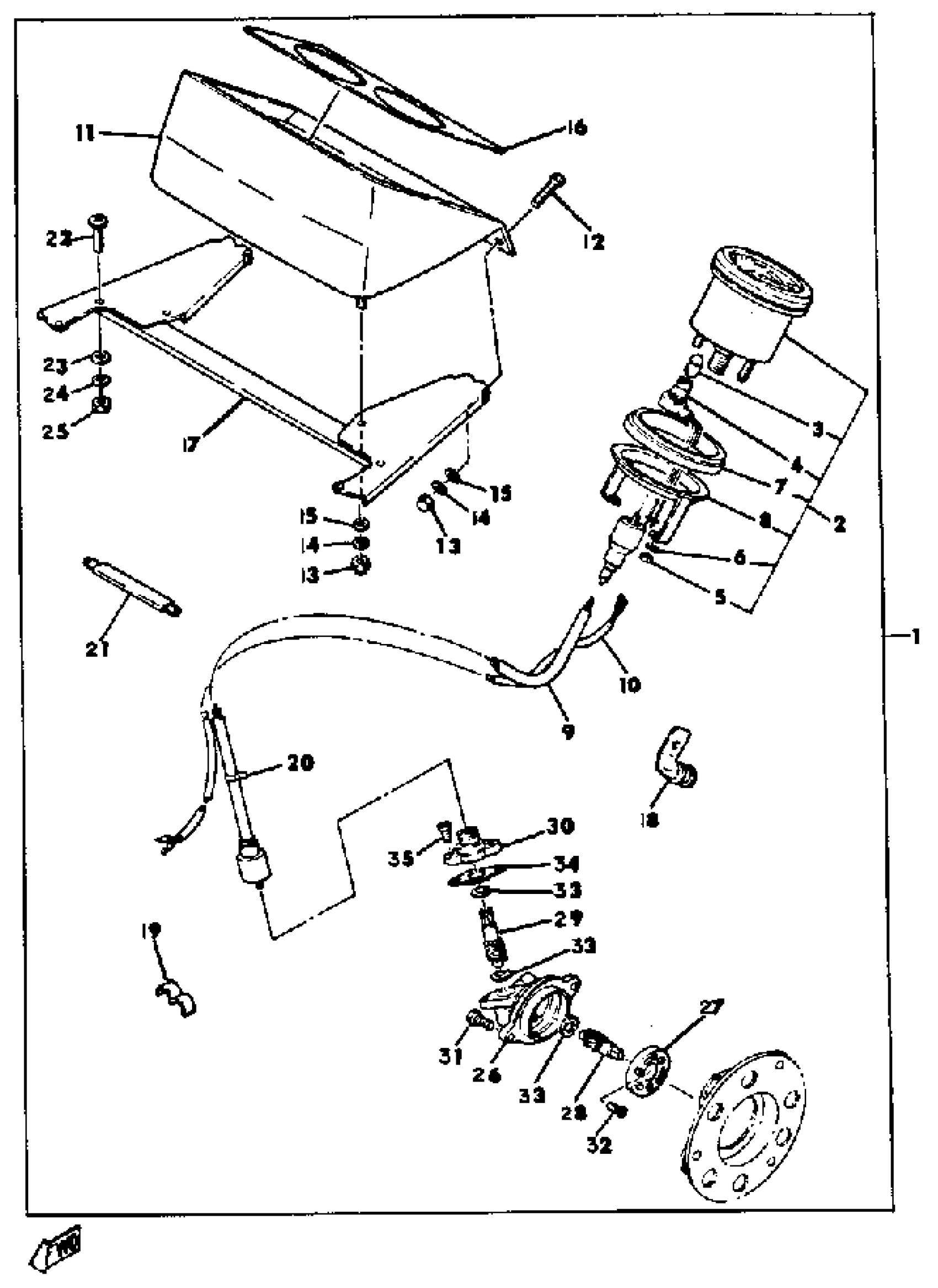

1979 Yamaha ET250C Speedometer KIT ET250C - D - E Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDO ET250BCD

(ACC-01200-69-00)

1
Out of stock

2

SPEEDOMETER ASSEMBLY

8G6-83510-21-00

1
Out of stock

3

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

4

SOCKET, METER

(861-83536-40-00)

1
Out of stock

5

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

6

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

7

DAMPER, METER

8G6-83523-00-00

—

$8.91

In stock

8

. BRACKET, METER

8G6-83519-00-00

1
Out of stock

9

TACHOMETER CABLE

(8G5-83560-01-00)

1
Out of stock

10

WIRE, LEAD

8H4-83553-00-00

1
Out of stock

11

PANEL,METER

8G5-83611-00-00

—
Out of stock

12

SCREW, BINDING

98907-05020-00

1

$6.18

In stock

13

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

14

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

15

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

16

COVER, METER PANEL

8G6-83612-00-00

1
Out of stock

17

BRACKET, PANEL 1

8G5-83631-00-00

1
Out of stock

18

CLAMP

90465-08028-00

1

$4.62

In stock

19

CLAMP, CORD

861-82361-00-00

—

$5.34

In stock

20

BAND, SWITCH CORD

25G-83936-01-00

—

$4.12

In stock

21

CLAMP

90465-05128-00

1
Out of stock

22

SCREW, BIND

98903-05016-00

1
Out of stock

23

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

24

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

25

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

26

HOUSING

8E6-47711-10-00

1
Out of stock

27

JOURNAL

853-47712-10-00

1
Out of stock

28

GEAR, DRIVE

810-47731-11-00

1
Out of stock

29

GEAR, DRIVEN (810-47741-10)

810-47741-11-00

1
Out of stock

30

COVER, METER HOUSING

8E3-47721-10-00

—

$18.34

In stock

31

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

32

SCREW, FLAT

98707-04012-00

—

$1.43

In stock

33

SHIM

810-47717-10-00

1
Out of stock

34

GASKET

810-47727-11-00

1
Out of stock

35

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock
