1979 Yamaha ET250C Electrical ET250C Diagram

← All diagrams

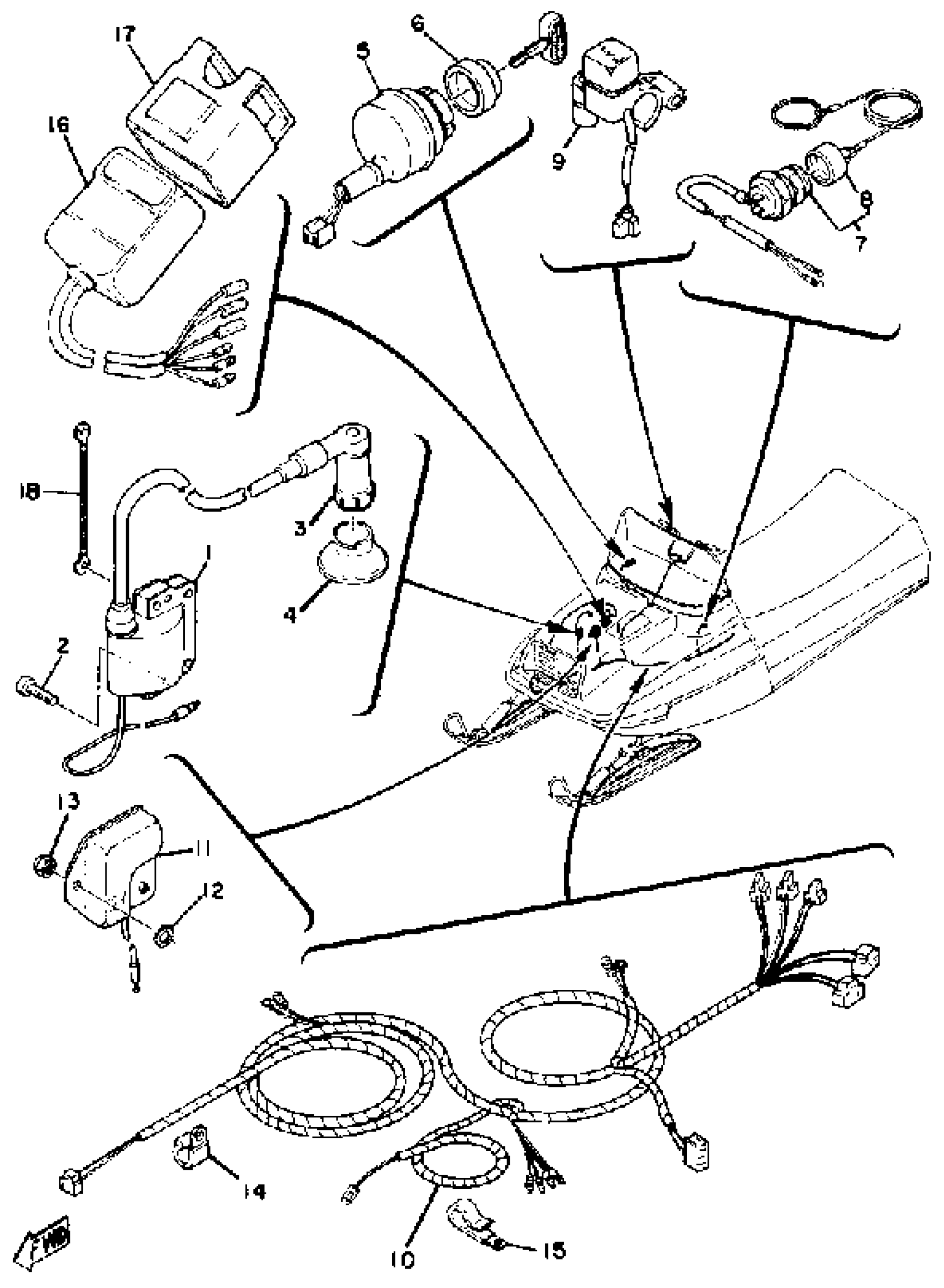

Find the part on the Electrical ET250C diagram for your 1979 Yamaha ET250C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha ET250C Electrical ET250C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSEMBLY

8H4-82310-20-00

1
Out of stock

2

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

3

PLUG CAP ASSY

7KA-82370-00-00

1

$62.25

In stock

4

SEAL, PLUG CAP

8G8-82372-00-00

1
Out of stock

5

MAIN SWITCH ASSEMBLY

8F3-82508-20-00

1
Out of stock

6

COLLAR, MAIN SWITCH

806-82516-00-00

1
Out of stock

7

STOP SWITCH ASSY

8H8-82550-01-00

1

$83.12

In stock

8

CAP, SWITCH

8H8-82552-09-00

1

$42.05

In stock

9

SWITCH, HANDLE 1

8E3-83976-02-00

1

$93.69

In stock

10

WIRE HARNESS ASSEMBLY

8H4-82590-20-00

1
Out of stock

11

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

1

$50.55

In stock

12

WASHER, TOOTH

92901-06400-00

1
Out of stock

13

NUT, NYLON

95707-06300-00

1

$3.20

In stock

14

CLAMP

90465-08028-00

1

$4.62

In stock

15

CLAMP(4MX)

90465-06376-00

1

$7.08

In stock

16

CDI UNIT ASSEMBLY

8H4-85540-20-00

1
Out of stock

17

BAND

2A7-85546-00-00

—

$20.40

In stock

18

WIRE, SUB-LEAD

(8H4-82318-00-00)

1
Out of stock
