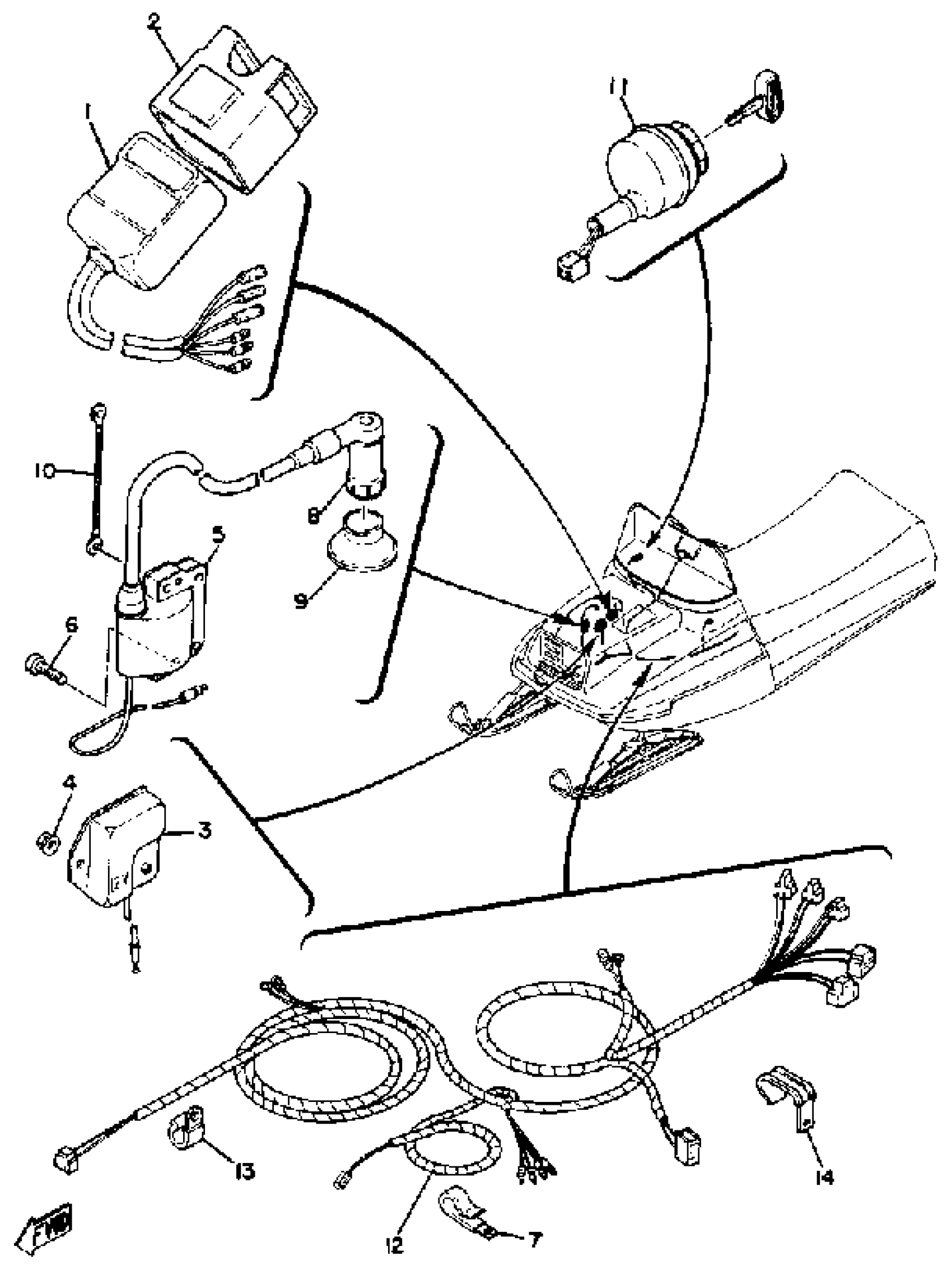

Find the part on the Electrical 1 ET250D - E diagram for your 1979 Yamaha ET250C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha ET250C Electrical 1 ET250D - E Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

8H4-85540-20-00

1
Out of stock

2

BAND

2A7-85546-00-00

—

$20.40

In stock

3

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

1

$50.55

In stock

4

NUT, NYLON

95707-06300-00

1

$3.20

In stock

5

IGNITION COIL ASSEMBLY

8H4-82310-20-00

1
Out of stock

6

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

7

CLAMP(4MX)

90465-06376-00

1

$7.08

In stock

8

PLUG CAP ASSY

7KA-82370-00-00

1

$62.25

In stock

9

SEAL, PLUG CAP

8G8-82372-00-00

1
Out of stock

10

WIRE, SUB-LEAD

(8H4-82318-00-00)

1
Out of stock

11

MAIN SWITCH ASSY

8R4-82510-20-00

1

$109.02

In stock

12

WIRE HARNESS ASSEMBLY

(8J5-82590-20-00)

1
Out of stock

13

CLAMP

90465-08028-00

1

$4.62

In stock

14

CLAMP

90465-06013-00

1
Out of stock
