1979 Yamaha ET250C Headlight ET250C - D - E Diagram

← All diagrams

Find the part on the Headlight ET250C - D - E diagram for your 1979 Yamaha ET250C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

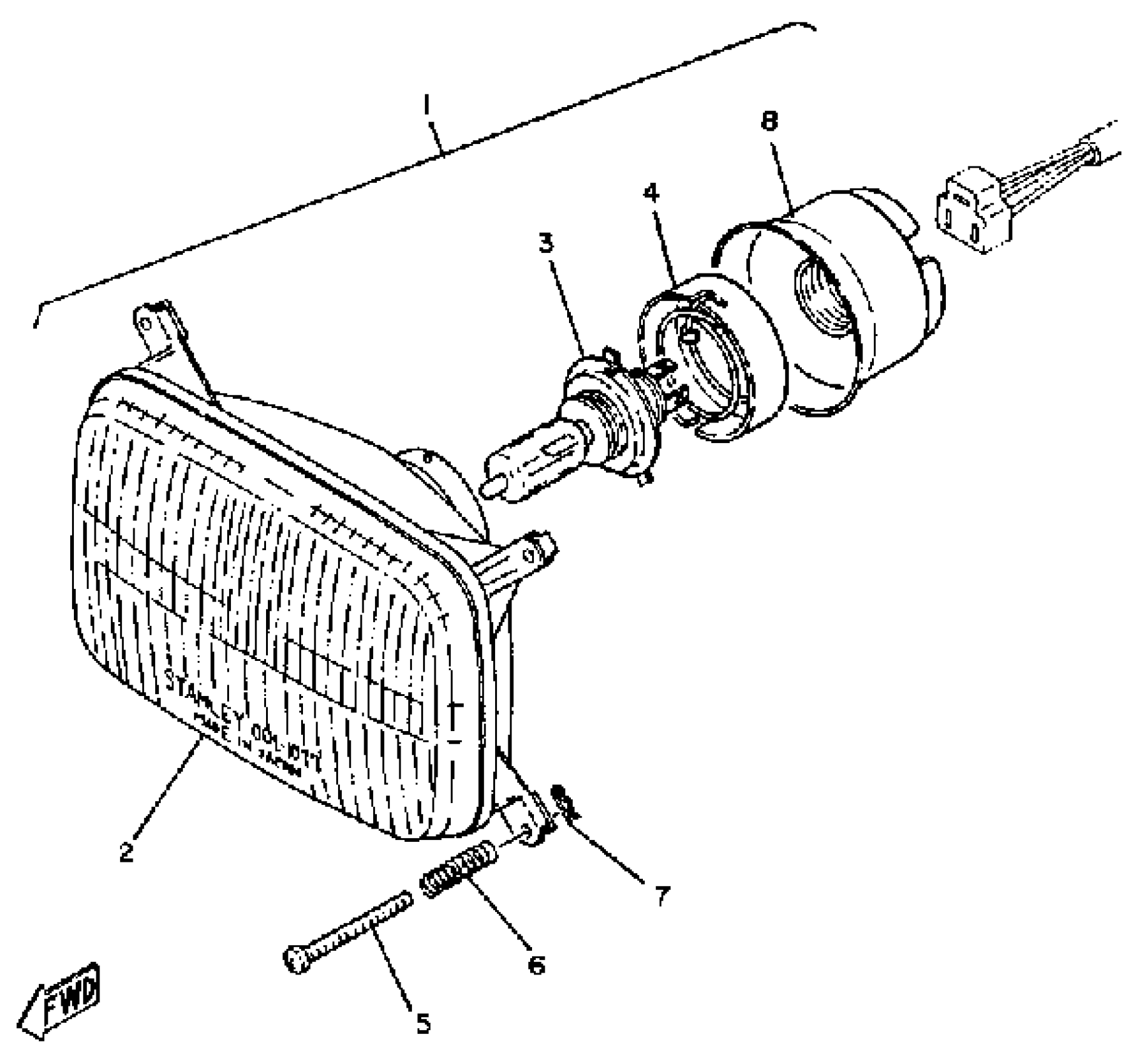

1979 Yamaha ET250C Headlight ET250C - D - E Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSEMBLY

8A7-84310-81-00

1
Out of stock

2

LENS ASSY

8A7-84320-00-00

—

$49.02

In stock

3

BULB,HL 12V60/60W

8A7-84314-00-XX

1
Out of stock

4

HOLDER, SOCKET

8A7-84312-00-00

1
Out of stock

5

SCREW, ADJUSTING

8M6-84331-00-00

1

$14.80

In stock

6

SPRING, ADJUST SCREW

8A5-84332-00-00

1

$7.40

In stock

7

CLIP

8K4-84374-00-00

1

$6.82

In stock

8

COVER, SOCKET

8A7-84397-01-00

—

$20.35

In stock
