1989 Kawasaki Eliminator Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1989 Kawasaki Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

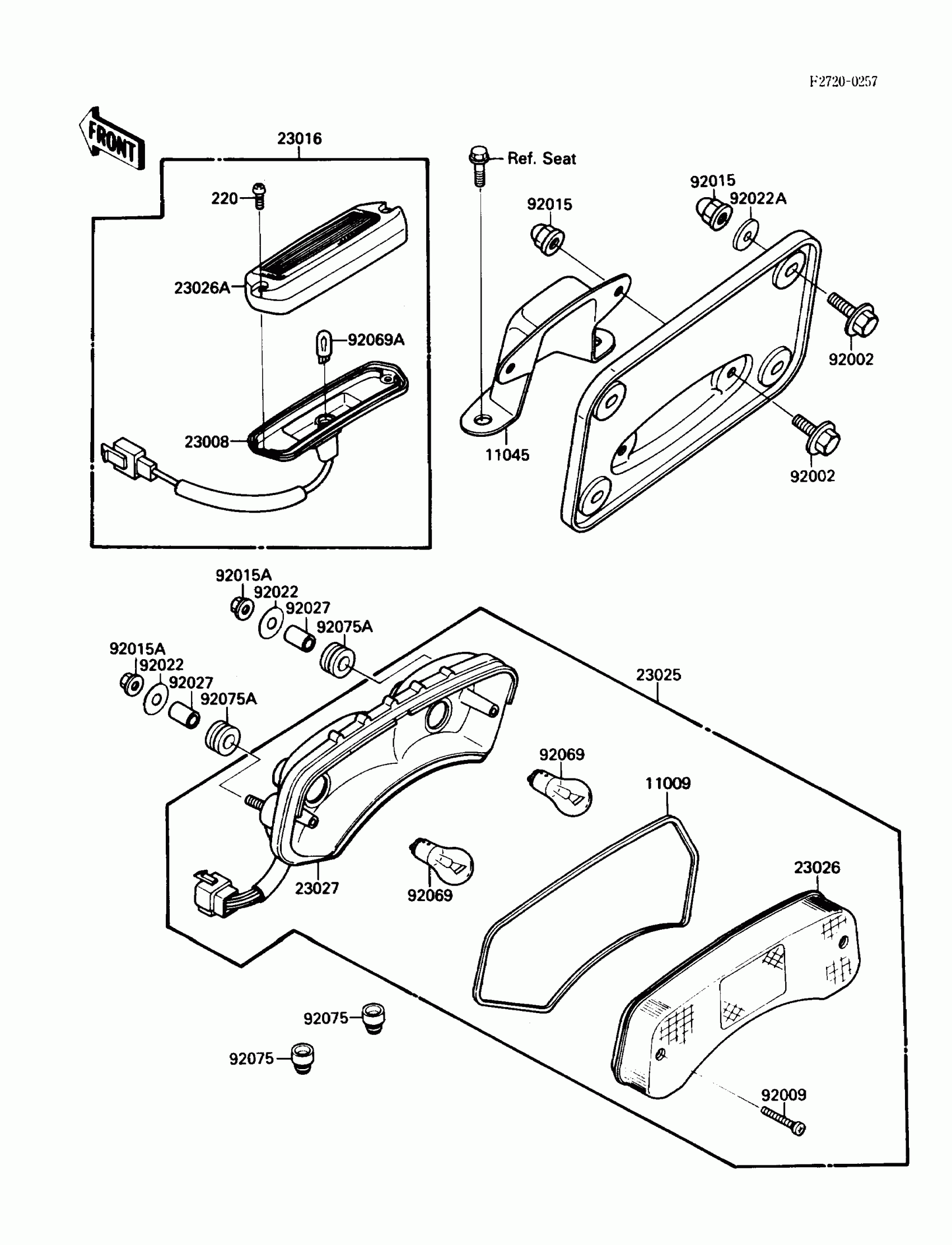

1989 Kawasaki Eliminator Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$7.15

In stock

11045

BRACKET,LICENSE PLATE

11045-1797

1
Out of stock

13091

HOLDER,LICENSE PLATE

13091-1500

1
Out of stock

23008

1

$15.93

In stock

23016

LAMP-ASSY,LICENSE

23016-1091

1

$43.21

In stock

23025

LAMP-TAIL

23025-1123

1
Out of stock

23026

LENS,TAIL LAMP

23026-1068

1
Out of stock

23026A

LENS,LICENSE LAMP

23026-1069

1

$17.46

In stock

23027

BODY-COMP-TAIL LAMP

23027-1062

1
Out of stock

92002

BOLT,6X16

92001-1950

1

$3.43

In stock

92009

SCREW,TAPPING,4X30

92009-1056

1
Out of stock

92015

NUT,CAP,6MM,BLACK

92015-1170

1
Out of stock

92015A

NUT,FLANGED,6MM

92015-1193

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92022A

1

$0.53

In stock

92027

COLLAR,6.8X10X12

92027-162

1

$5.21

In stock

92069

BULB,12V 27/8W

92069-059

1

$6.45

In stock

92069A

BULB,12V 3.4W,T10

92069-1007

1

$3.97

In stock

92075

DAMPER

92075-035

1

$3.65

In stock

92075A

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

220

SCREW-PAN-CROS,4X20

220C0420

1
Out of stock
