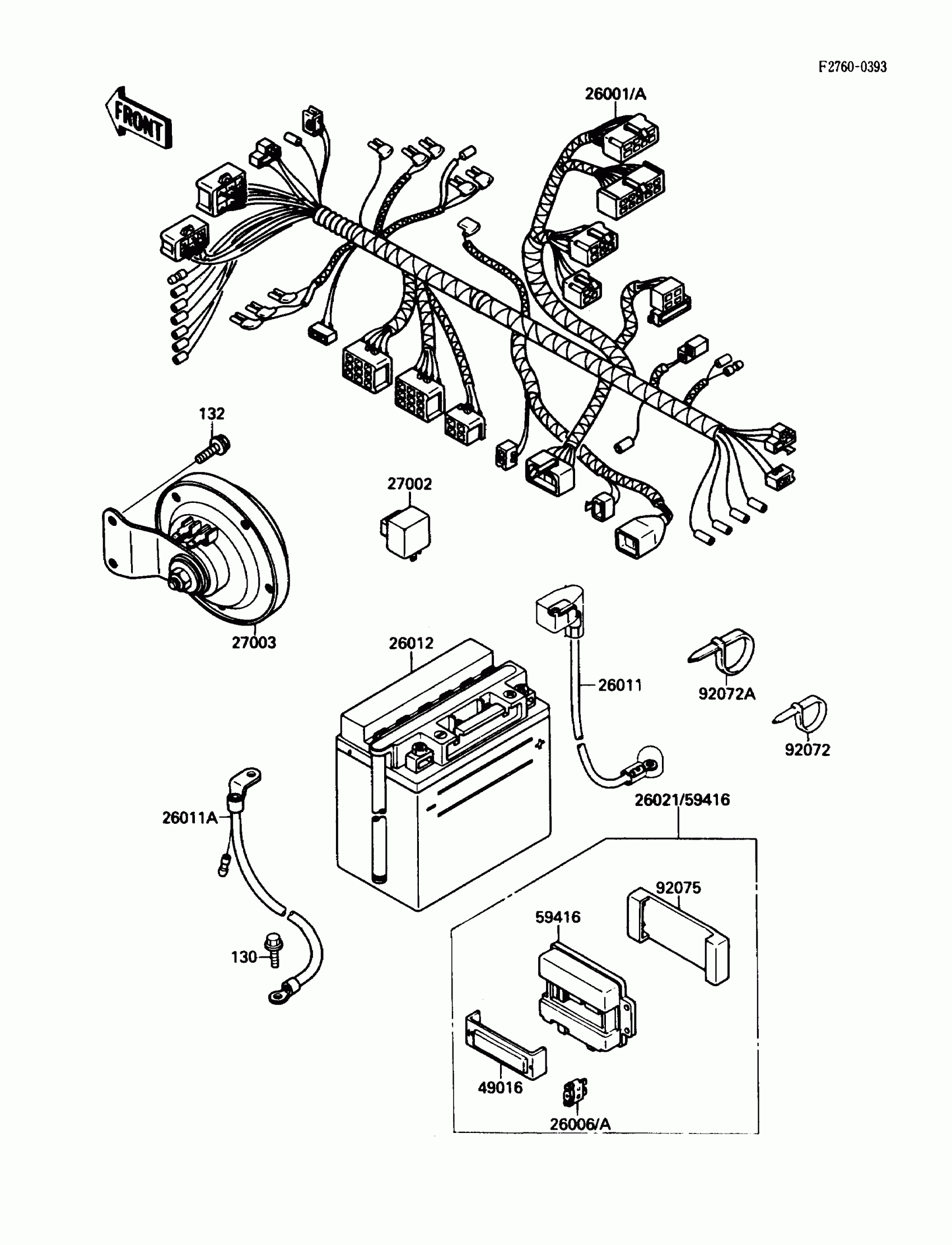

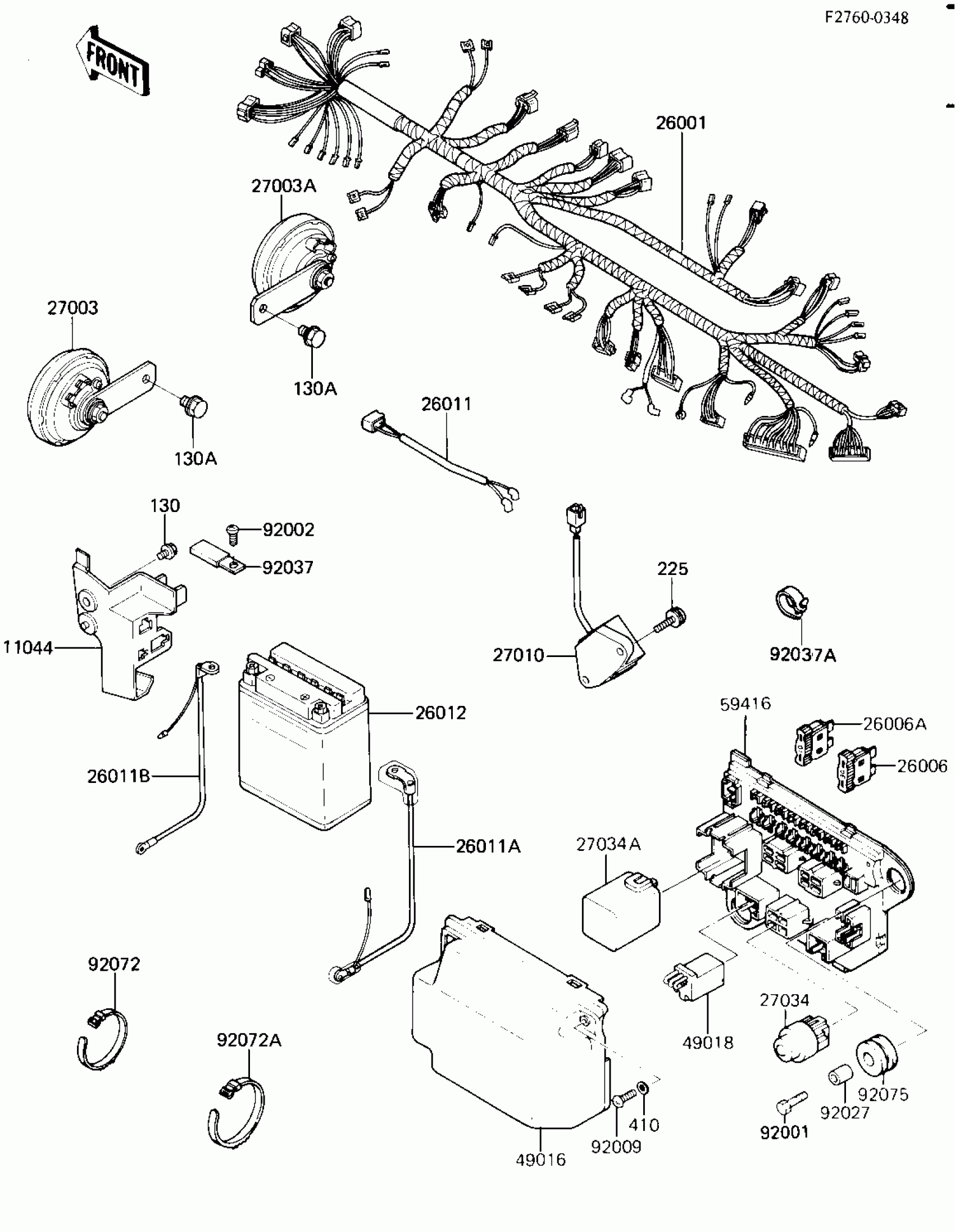

Find the part on the Chassis Electrical Equipment diagram for your 1986 Kawasaki Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Eliminator Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11044

BRACKET,RELAY&COUPLER

11045-1385

1
Out of stock

26001

HARNESS,MAIN

26001-1731

1

$439.22

In stock

26006

1

$4.39

In stock

26006A

FUSE,BLADE,10A,RED

26006-1007

1

$3.94

In stock

26011

WIRE-LEAD,BRAKE SWITC

26011-1313

1
Out of stock

26011A

WIRE-LEAD,BATTERY(+)

26011-1329

1
Out of stock

26011B

WIRE-LEAD,BATTERY(-)

26011-1330

1
Out of stock

26012

YUA BAT YB14L-A2

26012-1008

1

$84.21

In stock

27003

HORN,LH

27003-1229

1
Out of stock

27003A

HORN,RH

27003-1230

1
Out of stock

27010

1

$228.55

In stock

27034

RELAY,STARTER

27034-1006

1

$92.57

In stock

27034A

RELAY,FLASHER

27034-1007

1

$175.04

In stock

49016

COVER-SEAL

49016-1050

1
Out of stock

49018

DIODE

49018-1006

1
Out of stock

59416

CASE-ELECTRIC

59416-1056

1
Out of stock

92001

BOLT,UPSET-WP,6X22

92002-1262

1
Out of stock

92002

BOLT,6X14

92002-1351

1

$3.43

In stock

92009

SCREW,TAPPING,4X10

92009-1021

1
Out of stock

92027

COLLAR,6.8X10X12

92027-162

1

$5.21

In stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92037A

CLAMP,SPEED,L=58

92037-1163

1

$5.21

In stock

92072

BAND,L=123

92072-030

1

$3.97

In stock

92072A

BAND,L=186

92072-056

1

$3.97

In stock

92075

DAMPER

92075-1562

1
Out of stock

130

BOLT-FLANGED,6X8

130B0608

1
Out of stock

130A

BOLT-FLANGED,8X12,BLACK

130C0812

1
Out of stock

225

SCREW-PAN-WSP-CROS,6X20

225B0620

1
Out of stock

410

WASHER PLAIN 4MM

410B0400

1
Out of stock
