1989 Kawasaki Eliminator Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1989 Kawasaki Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

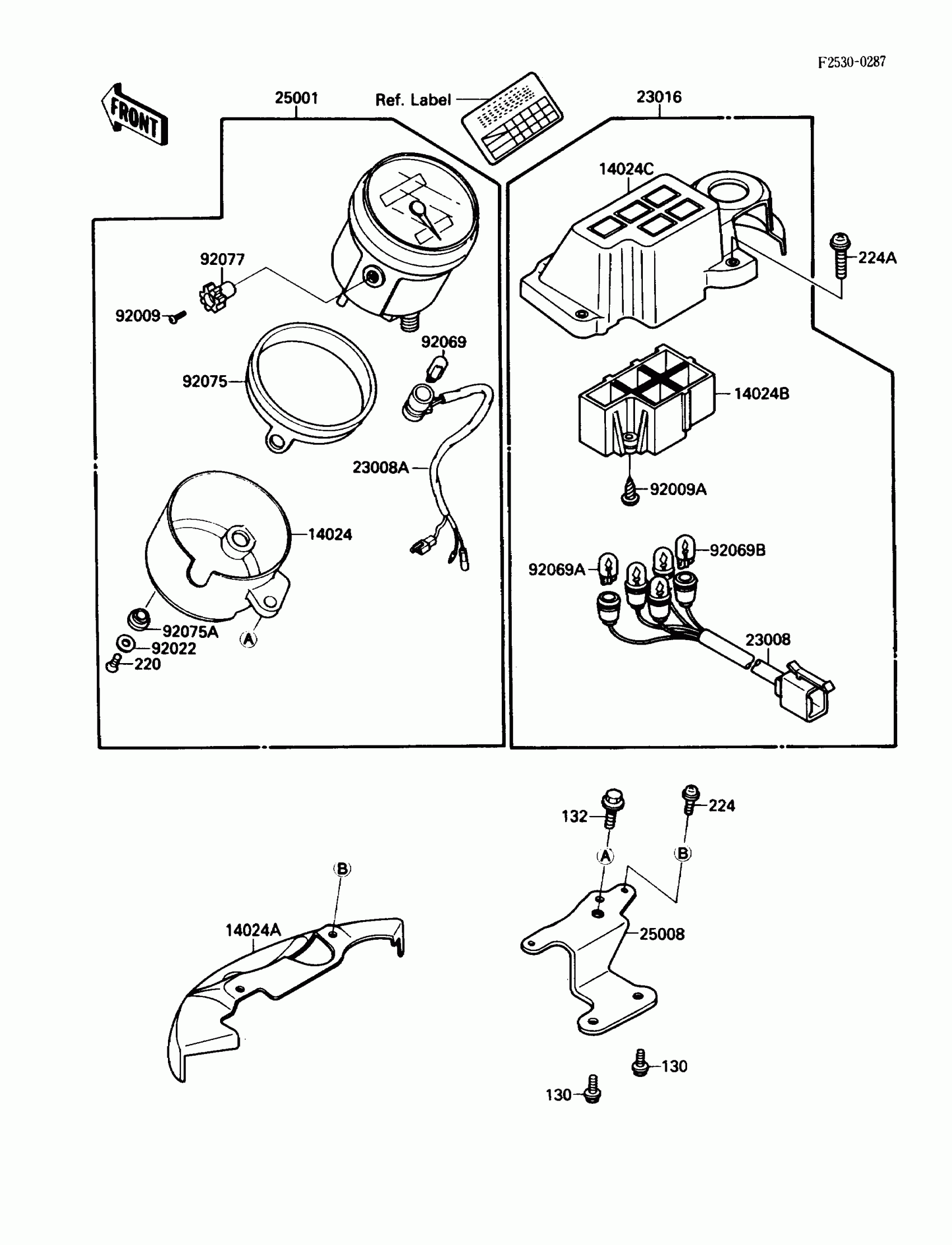

1989 Kawasaki Eliminator Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

COVER,SPEEDOMETER

14024-1096

1
Out of stock

14024A

COVER,HEAD LAMP

14024-1564

1
Out of stock

14024B

COVER,PILOT BOX,LWR

14024-1604

1
Out of stock

14024C

COVER,PILOT BOX,UPP

14024-1605

1
Out of stock

23008

1

$52.23

In stock

23008A

1

$20.20

In stock

23016

LAMP-ASSY,PILOT BOX

23016-1089

1

$163.09

In stock

25001

METER-ASSY,SPEED,MPH

25001-1704

1
Out of stock

25008

BRACKET-METER

25008-1141

1

$13.41

In stock

92009

SCREW,2X6,BLACK

92009-1172

1
Out of stock

92009A

SCREW,TAPPING,4X14

92009-1503

1
Out of stock

92022

WASHER,4.5X10X0.8

92022-1822

1
Out of stock

92069

BULB,12V 3.4W,T10

92069-1007

1

$3.97

In stock

92069A

BULB,14V 3W,T6.5

92069-1068

1

$3.97

In stock

92069B

BULB,12V 1.7W,T6.5

92069-1070

1

$5.16

In stock

92075

DAMPER,SHOCK,METER

92075-1751

1

$12.38

In stock

92075A

1

$4.72

In stock

92077

KNOB,METER

92077-1059

1

$7.36

In stock

130

BOLT-FLANGED,6X14

130D0614

1
Out of stock

132

BOLT-FLANGED-SMALL,6X20

132E0620

1
Out of stock

220

SCREW-PAN-CROS,4X8

220E0408

1
Out of stock

224

SCREW-PAN-WP-CROS

224B0508

1
Out of stock

224A

SCREW-PAN-WP-CROS,4X20

224C0420

1
Out of stock
