1989 Kawasaki Eliminator Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 1989 Kawasaki Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

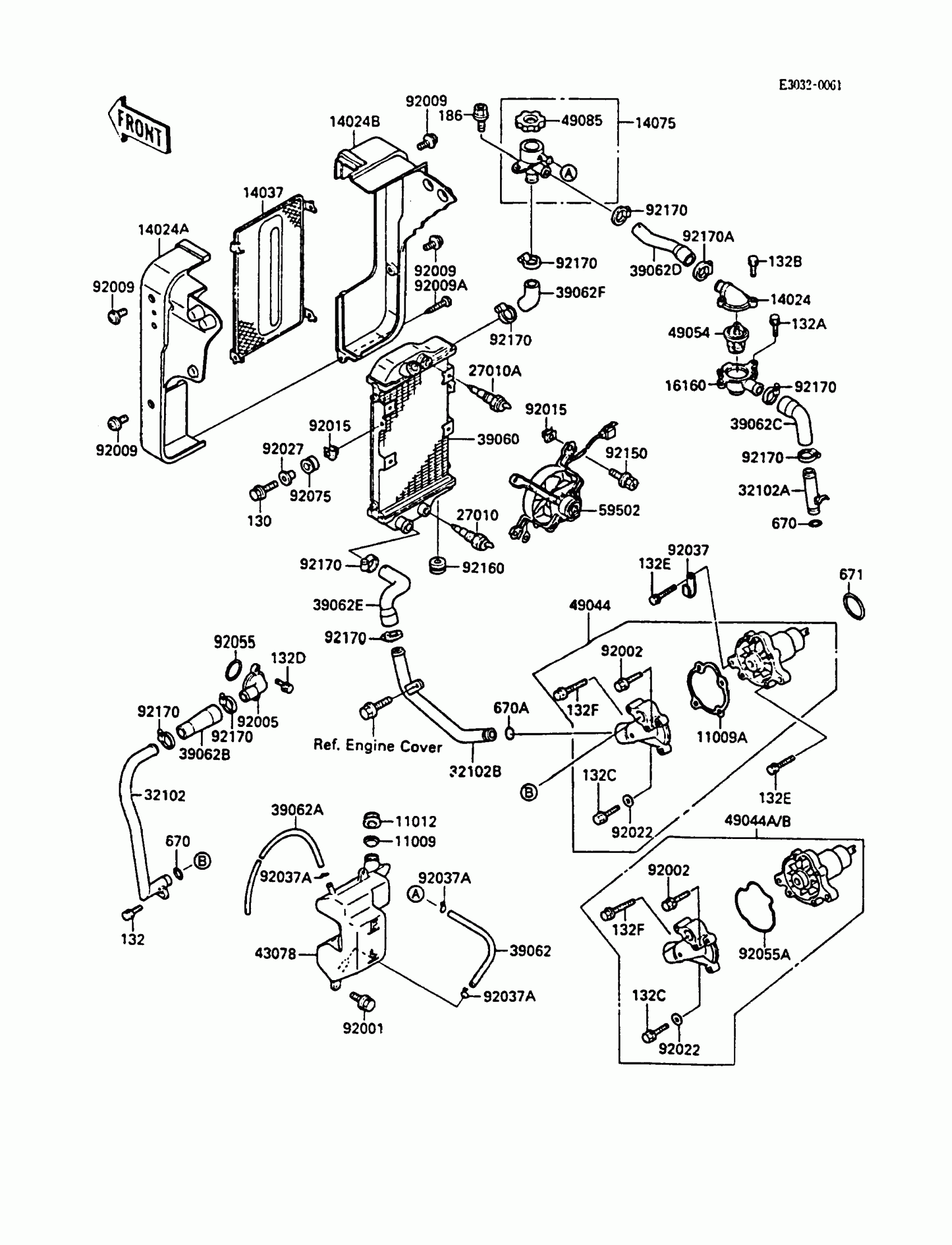

1989 Kawasaki Eliminator Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11012

CAP

11012-1084

1

$1.31

In stock

14024

COVER,THERMOSTAT

14024-1232

1
Out of stock

14024A

COVER,LH

14024-1568

1
Out of stock

14024B

COVER,RH

14024-1569

1
Out of stock

14037

SCREEN

14037-1093

1
Out of stock

14075

CAP-ASSY,RADIATOR

14075-1072

1
Out of stock

16160

BODY,THERMOSTAT

16160-1139

1

$23.69

In stock

27010

SWITCH,FAN

27010-1167

1

$131.65

In stock

27010A

SWITCH,SENSOR WATER

27010-1239

1

$136.56

In stock

32102A

1

$25.24

In stock

32102B

PIPE,RADIATOR-PUMP

32102-1625

1

$34.75

In stock

39060

RADIATOR

39060-1079

1

$761.58

In stock

39062

HOSE-COOLING,5.5X10.5X950

39062-1069

1
Out of stock

39062A

1

$38.54

In stock

39062B

1

$10.02

In stock

39062C

1

$20.61

In stock

39062D

HOSE-COOLING,THERMOSTAT-CAP

39062-1247

1
Out of stock

39062E

HOSE-COOLING,RADIATOR-PUMP

39062-1248

1
Out of stock

39062F

HOSE-COOLING,CAP-RADIATOR

39062-1249

1
Out of stock

43078

RESERVOIR

43078-1088

1
Out of stock

49044A

PUMP-WATER

49044-1064

1

$311.04

In stock

49054

THERMOSTAT

49054-1058

1

$62.23

In stock

49085

CAP-ASSY-PRESSURE

49085-1057

1

$48.74

In stock

59502

FAN-ASSY

59502-1073

1

$454.26

In stock

92001

BOLT,W/WASHER,6X12

92001-1516

1

$4.42

In stock

92002

BOLT,6X18

92002-1806

1
Out of stock

92005

FITTING,CYLINDER

92005-1145

1
Out of stock

92009

SCREW,6X10

92009-1402

1
Out of stock

92009A

SCREW,TAPPING,5X30

92009-1488

1
Out of stock

92015

NUT

92015-1487

1

$3.80

In stock

92022

WASHER,6MM

92022-1627

1

$5.46

In stock

92027

COLLAR

92027-1767

1

$4.37

In stock

92037

1

$3.75

In stock

92037A

CLAMP,TUBE

92037-147

1

$5.84

In stock

92055

RING-O,27.7X2.4

92055-091

1

$4.93

In stock

92055A

RING-O

92055-1432

1

$9.42

In stock

92075

DAMPER

92075-1680

1

$5.74

In stock

92150

BOLT,6X12

92150-1186

1

$2.92

In stock

92160

DAMPER

92160-1007

1

$4.37

In stock

92170

CLAMP,COOLING HOSE

92170-1033

1

$11.99

In stock

92170A

CLAMP,COOLING HOSE

92170-1034

1

$19.44

In stock

130

BOLT-FLANGED,6X25

130J0625

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132E0612

1
Out of stock

132A

BOLT-FLANGED-SMALL

132G0612

1
Out of stock

132B

BOLT-FLANGED-SMALL

132G0625

1
Out of stock

132C

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock

132D

BOLT-FLANGED-SMALL,6X16

132J0616

1
Out of stock

132E

BOLT-FLANGED-SMALL,6X30

132J0630

1
Out of stock

132F

BOLT-FLANGED-SMALL,6X35

132J0635

1
Out of stock

186

BOLT-UPSET-WP,6X14

186C0614

1
Out of stock

670

O RING,16MM

670B2016

1

$1.20

In stock

670A

O RING,18MM

670B2018

1

$1.25

In stock

671

O RING

671D2535

1

$4.93

In stock
