1986 Kawasaki Eliminator Crankcase Bolt Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt Pattern diagram for your 1986 Kawasaki Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

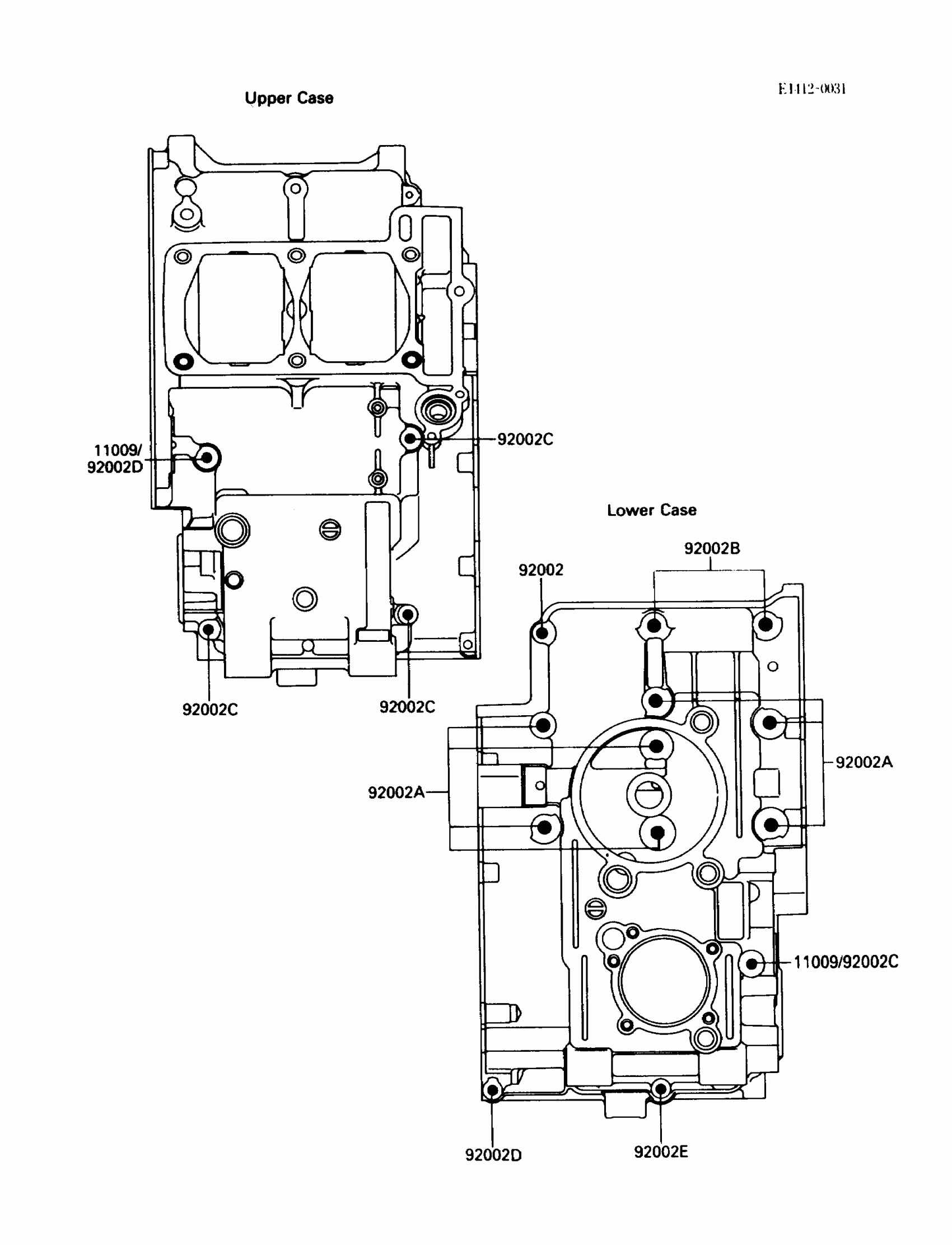

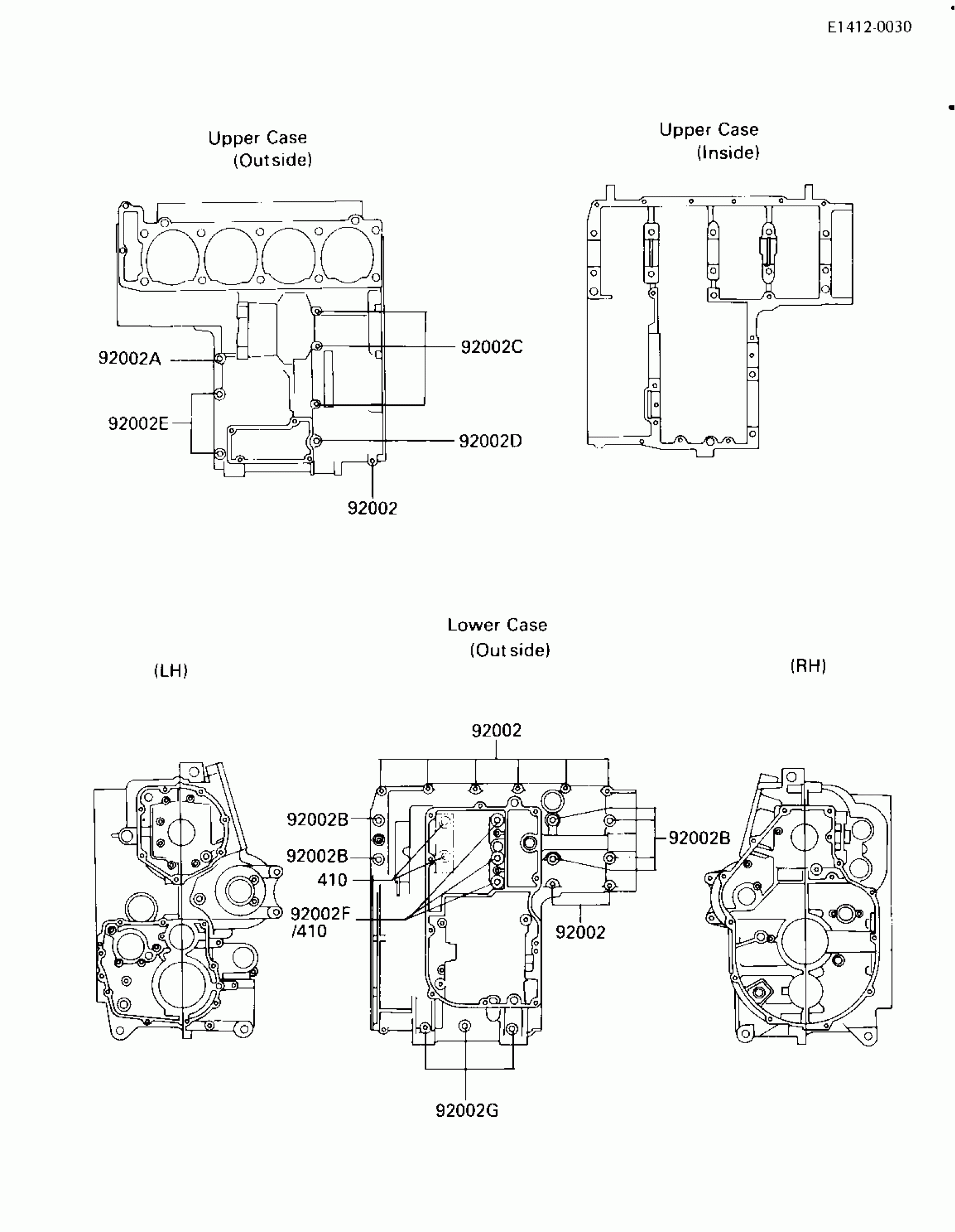

1986 Kawasaki Eliminator Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92002

BOLT,6X38

92001-1899

1

$3.92

In stock

92002A

BOLT,6X55

92002-1054

1
Out of stock

92002B

BOLT,8X90

92002-1057

1

$9.95

In stock

92002C

BOLT,6X115

92150-1140

1

$7.14

In stock

92002D

BOLT,6X85

92002-1306

1

$5.10

In stock

92002E

BOLT,8X63

92002-1308

1

$8.44

In stock

92002F

BOLT,8X140

92150-1164

1
Out of stock

92002G

BOLT,6X120

92002-1654

1
Out of stock

410

WASHER PLAIN 8MM

410B0800

1
Out of stock
