1989 Kawasaki Eliminator Cylinder/piston Diagram

← All diagrams

Find the part on the Cylinder/piston diagram for your 1989 Kawasaki Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

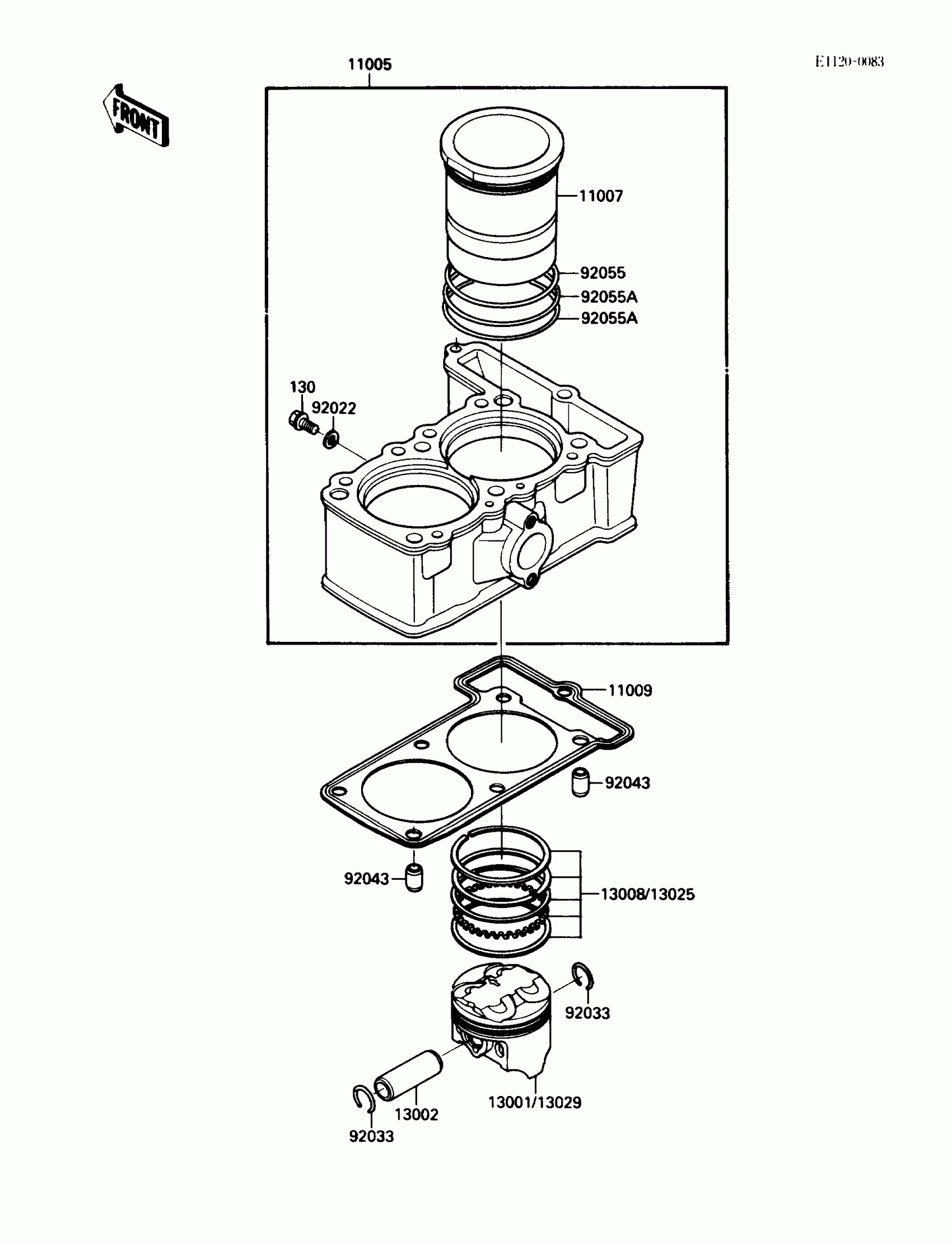

1989 Kawasaki Eliminator Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-1489

1
Out of stock

11007

LINER-CYLINDER

11007-1085

1
Out of stock

11009

1

$38.45

In stock

13001

PISTON-ENGINE,STD

13001-1265

1
Out of stock

13002

PIN-PISTON

13002-1062

1
Out of stock

13008

RING-SET-PISTON,STD

13008-1072

1
Out of stock

13025

RING-SET-PISTON L,O/S 0.50

13025-1074

1
Out of stock

13029

PISTON-ENGINE L,O/S,0.50

13029-1163

1
Out of stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92033

1

$3.10

In stock

92043

PIN,8.2X10X14

92043-1264

1

$0.53

In stock

92055

RING-O,67.5MM

92055-1035

1
Out of stock

92055A

RING-O,68.2X2.4

92055-1338

1

$4.85

In stock

130

BOLT-FLANGED,6X10

130C0610

1
Out of stock
